Description
1. High efficiency regulator chip greatly improves anti-interference capability to guarantee the normal operation of the receiver.
2. LED indicator for indicating the work status of the UBEC, Red LED is always on solid when the output is in normal range.
3. Switchable output voltage (5.0V/6.0V/7.4V) applicable for servos with different voltages.
Specification:

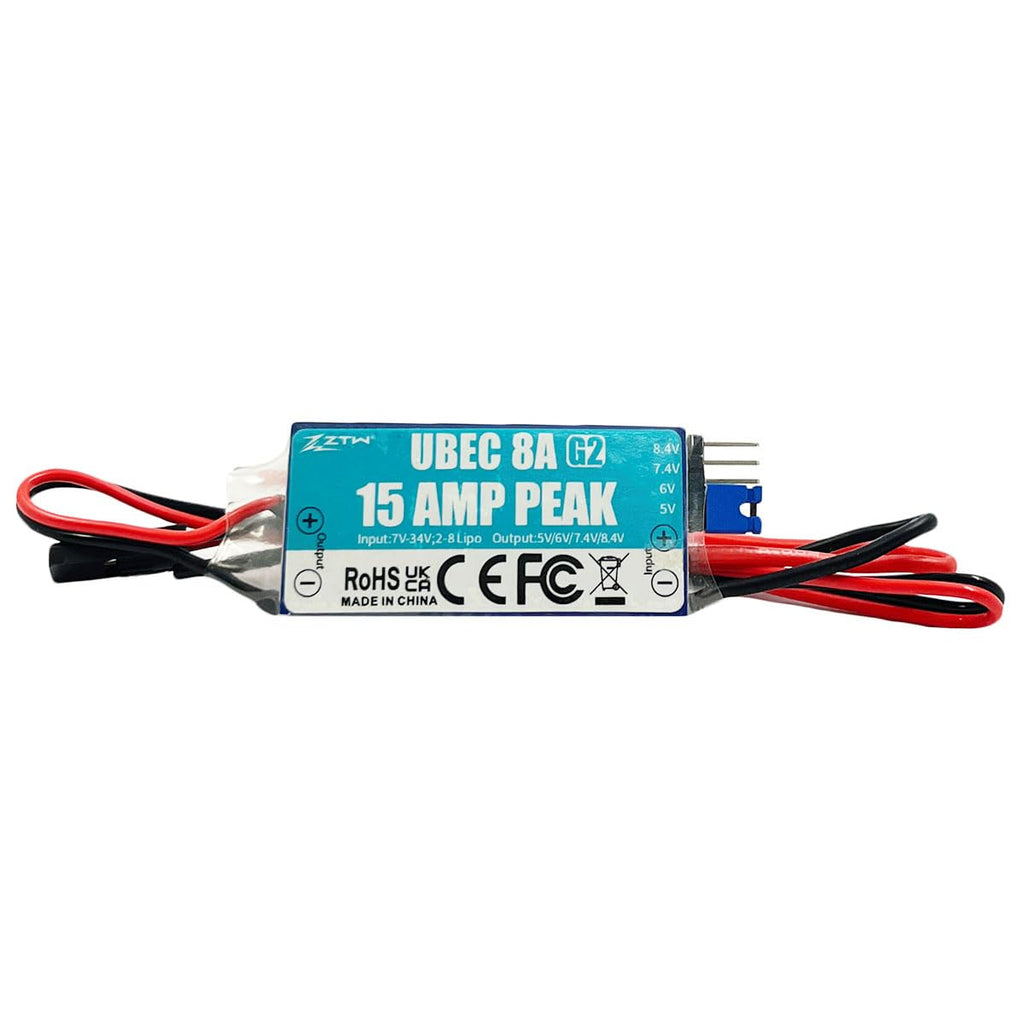

Model: UBEC 8A G2
Input Voltage: 7V-34V（2-8S Lithium Battery Pack）
Output Voltage: 5.0V/6.0V/7.4V/8.4V Switchable
Output Current: Continuous Current 8A, Peak Current 15A
Size: 48x22x7mm (length x width x height)
Weight: 14g
