Description

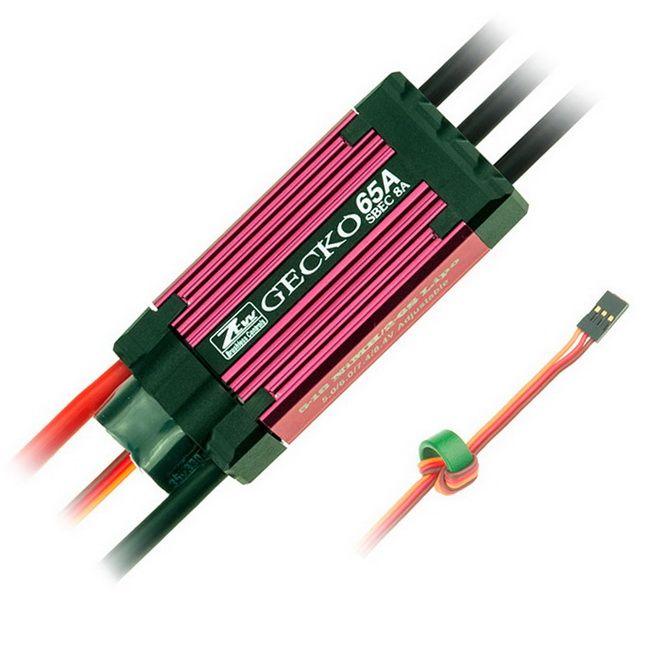

This is a high-quality, efficient brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, reducing weight and complexity. The GECKO series also includes ESC OPTO for giant flying. This series of ESCs also features an exposed, finned heat sink aluminum case with lightweight plastic end caps. Additional features include safe power arming along with an advanced programmable data logging system, low voltage cutoff, braking, timing, throttle input range, and more, making this series truly exceptional. In line with the developments of electronics research and the popular demand of the market, our BEC has been specially designed for extreme aerobatics and therefore can support high current applications, eliminating the possibility of unwanted shutdowns. It is also capable of supporting continuous simultaneous multiple servo operations typically found in CCPM equipped hardcore 3D E-helicopters.
Features
- Data logging system including temperature, voltage, current, RPM
- Adjustable SBEC Voltage Output: 5.0, 6.0, 7.4, 8.4V
- Advanced Governor Mode and soft start
- High SBEC Current Output, continuous 8A and burst 16A, designed to meet high current applications
- Power arm protection, overheating protection, low-voltage protection and lost-signal protection
- Secondary submenu setting using LCD program card or PC interface
- Readily-available firmware updates by PC
- Beautifully crafted metal casing
- Smooth and accurate throttle linearity
- Compatible with most motors, including high RPM motors
- Programmable motor timing
- Utilizes new smaller MOSFET technology to minimize weight
- Finned heat sink
- Programmable throttle input range
- Anti-spark circuits (HV OPTO version only)
Specifications
Output: Continuous Current 65A, Burst Current: 85A for 10 seconds
Battery: 5-18 NiXX /2-6S LiPo
Weight: 50gv BEC: 5.0V, 6.0V , 7.4V, 8.4V adjustable/8A
Size: 33*69*11.5mm (W*L*H)
Click here to download Gecko ESC manual.
