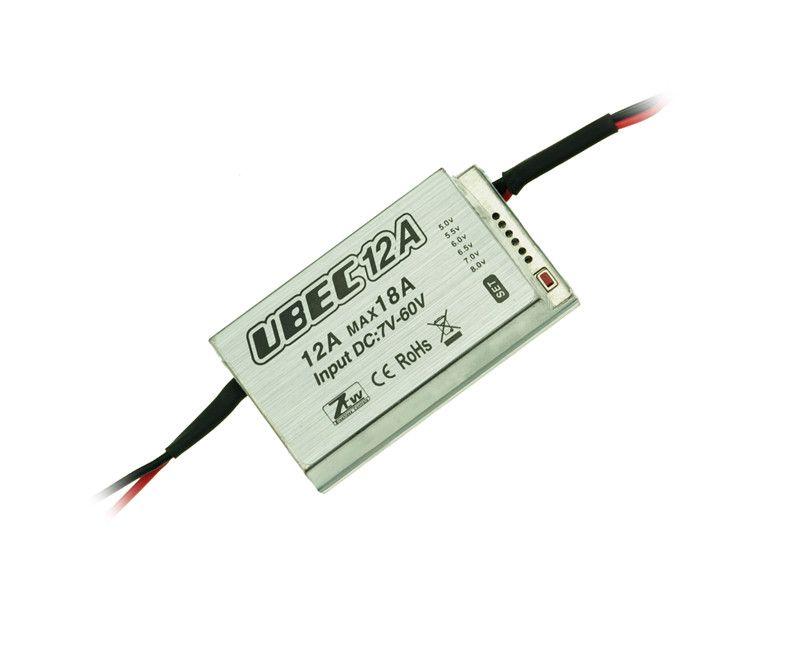

Description
Features:
1. Adopting CPU made in USA with decreased the electromagnetic interference to ensure that receiver works well .
2. The working status of UBEC is shown by an indicator (LED). When UBEC works, the blue LED lights.
3. Battery polarity reverse protection (If the connection is wrong, the UBEC will not work.).
Important notice
1.If a UBEC is connected to an OPTO type ESC (ESC without BEC output), just connect the input lead of the UBEC to a battery pack, and plug the output connector of the UBEC into a receiver.
2. If used together with an ESC with SBEC output, the red wire of the signal wires of the ESC must be removed from a receiver before it is connected to a UBEC.
Specification Of 6A UBEC:
1. Switching type
2. Output: 5.0V/12A ,5.5V/12A, 6.0V/12A, 6.5V/12A, 7.0V/12A, 8.0V/12A (Output voltage is changeable by pressing Red Button circularly as requested. Note:It’s just available to continuously press Red Button over 3 seconds.)
3. Input: 7V-60V (2-14S Lipo, 6-50 NiMH/NiCd)
4. Output Current: Continuous Current 12A,
Burst Current 18A

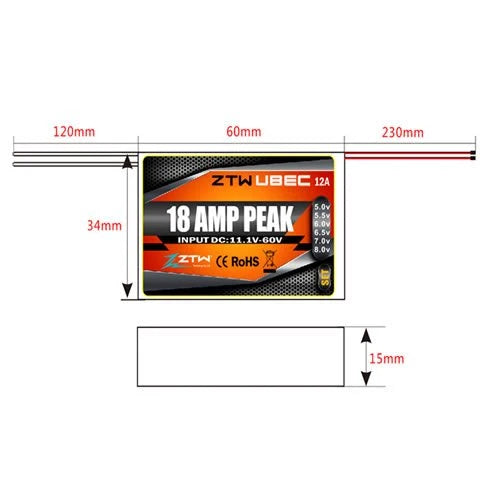

5. Size: 60.0mm*34.0mm*15.0mm(Length*Width*Height)
6. Weight: 51g
