Description

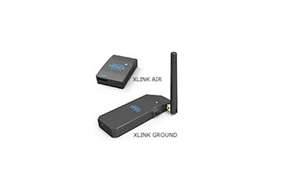

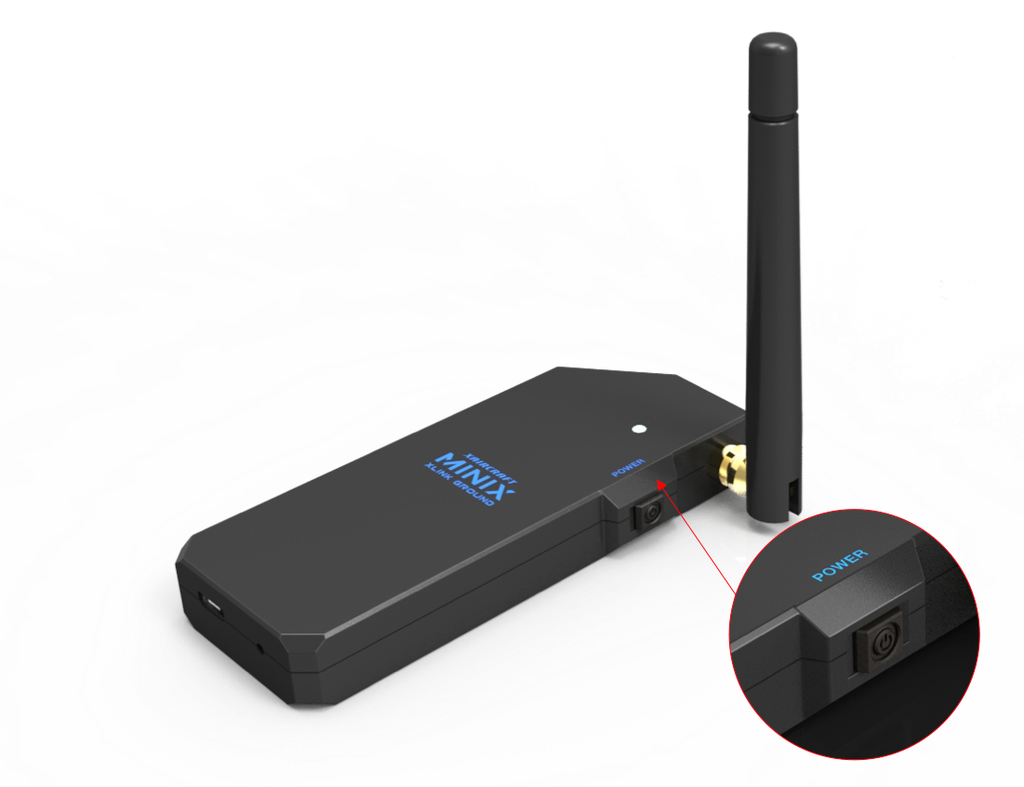

MiniX - XLink Features and Specifications
By using XStation APP, equipped with XLink Ground/Air 2.4G Bluetooth digital transmitter and MiniX Flight Control System, you can fully control the aircraft on your smartphone or tablet.
Tap and Go Mode - Your aircraft can fly autonomously by tapping anywhere on the map, which reduces operation complexity.
Follow Me Mode - Under this mode, aircraft with MiniX will automatically follow your move, no matter if you accelerate, decelerate, make a U-turn or just slightly change your direction.
Joystick Mode - You will no longer need your conventional controller. Besides, it is extremely convenient for you to switch to your most familiar joystick mode: Mode 1, Mode 2 and Mode 3.
One Click Takeoff/Landing and Go Home - These functions are designed to minimize the crashing risk when you control your aircraft.
User Friendly Interface - Provides a clear presentation of all features you need, such as flying status, signal strength, satellites support, battery remaining, flying time, etc.
Offline Maps and other Utility Functions - You will never be troubled by data usage by directly downloading offline maps in the App. Map Direction and Layer switch are also supported.
System Requirements:
Flight Control System MiniX (Firmware 1.03 later)
Supported Devices Android 4.0+, iOS (Coming soon), GPS module is required
Bluetooth Version 2.0+
Technical Specifications
Outdoor Range (XLink Ground to XLink Air) Approximately 1000m
Outdoor Range (XLink Ground to Handheld Device) ≤5m
Power Consumption Ground≤336mW Air：≤225mW
Frequency Band 2.4 GHz
Size (Without Antenna) Ground：97.50mmx38.40mmx13.80mm Air：39.60mmx30.00mmx10.85mm
Weight (With Antenna) Ground：63g Air：7g
Battery Capacity Ground：800mAh or 3Wh
Charging Voltage Ground: 5V
Working Voltage Ground：3.5V~4.2V Air：5V
