Description
Key Features:
-
Sleek Design for Longer Flight: Compact body with low drag to boost battery life.
-
Versatile Compatibility: Works seamlessly with DJI O3 and analog image transmission. Also features a platform for easy action camera installation.
-
Durable Carbon Fiber Build: The main structure is crafted from carbon fiber, doubling strength, lifespan, and stability compared to regular wood.
-

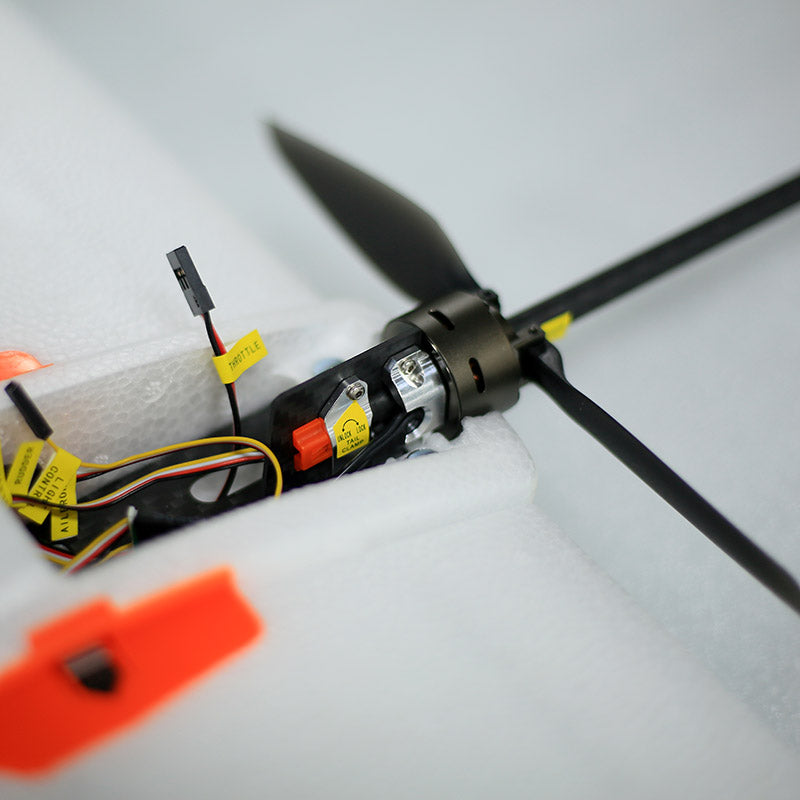

Optimized Motor Structure: Custom design aligns thrust line with the fuselage, maximizing motor thrust with no propeller deflection.
-
Efficient Folding Propeller: Specially designed to reduce flight resistance, ensuring optimal dynamic efficiency when paired with the motor.
-
Propeller Turbulence Prevention: High T flat tail design prevents turbulence, enhancing tail group efficiency through special engineering.
-
Load Wing Design: Supports a maximum 600g load without requiring a power system change, enabling free-flying with added payload.
-

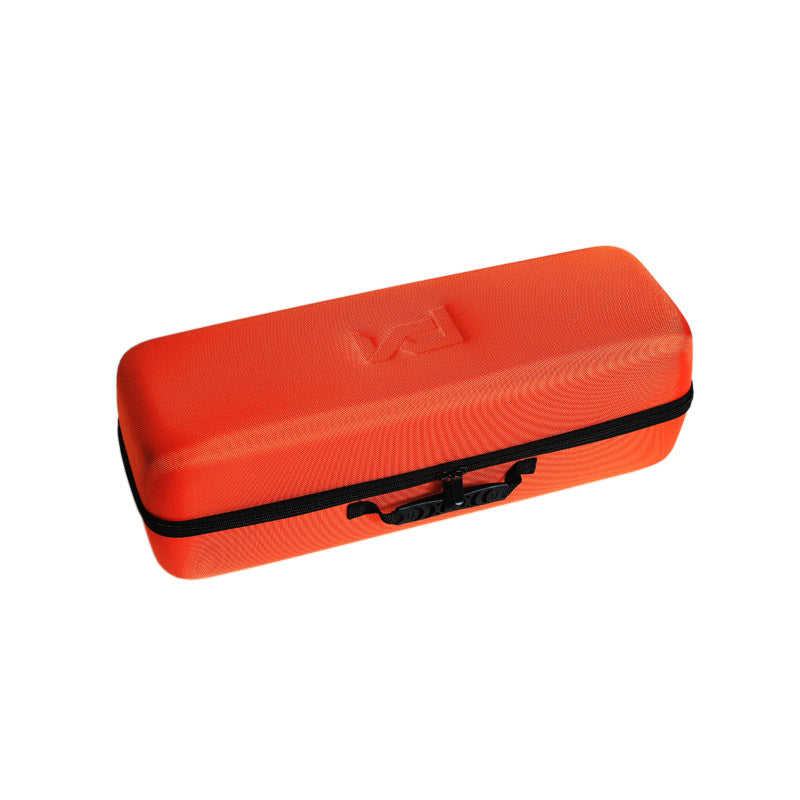

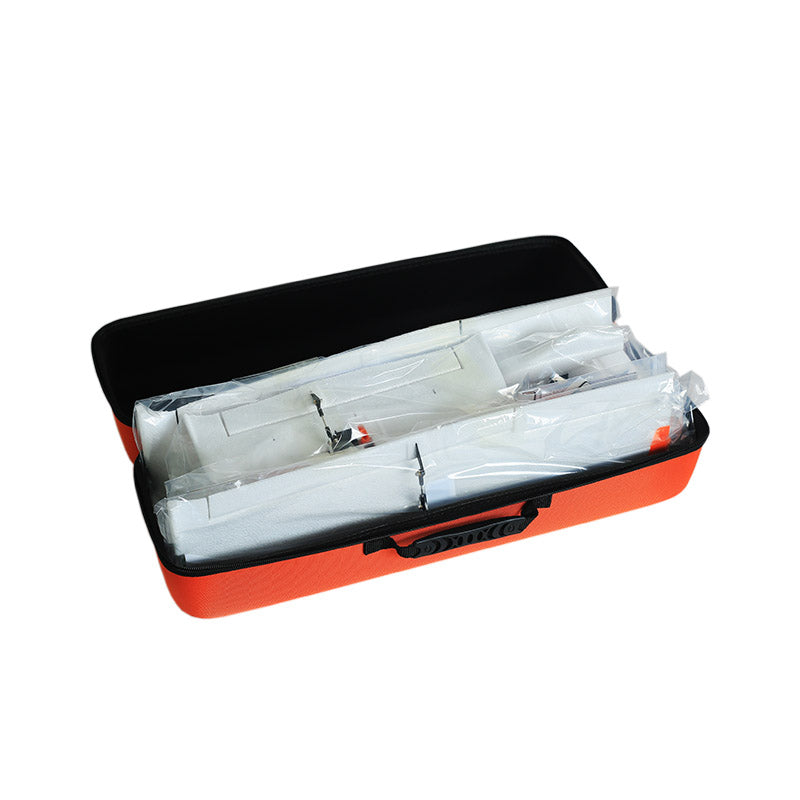

Quick Assembly and Disassembly: Easily stored in a compact space, complete with a high-quality hard-shell suitcase for convenience and added protection.
-

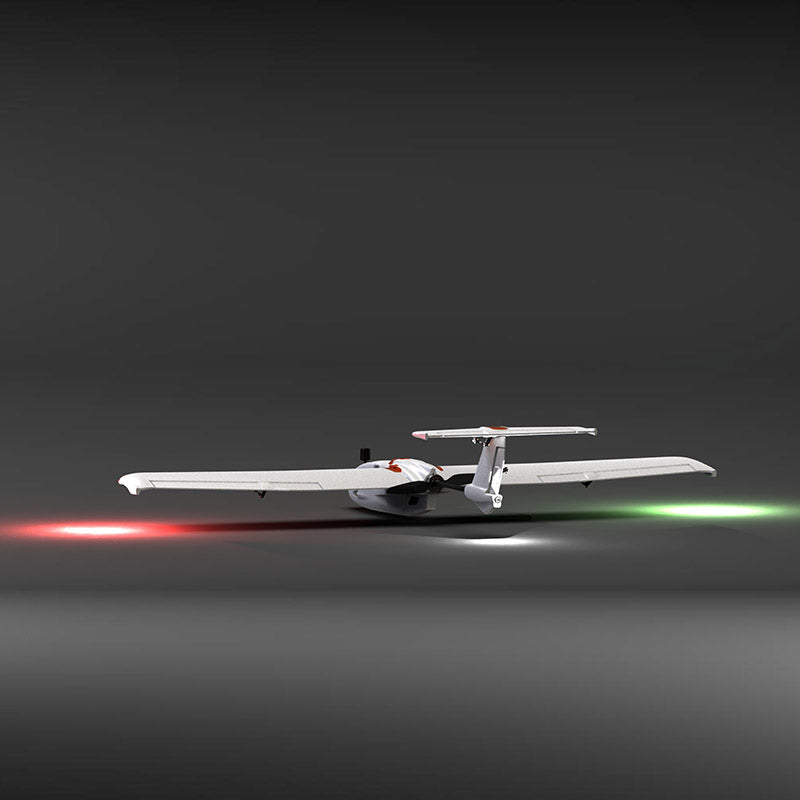

Night Flight Ready: Two-color lights for a cool nighttime aesthetic and enhanced visual landing safety.
-
Environmentally Friendly: Crafted from natural decomposition EPP environmental protection materials, ensuring no harm to the environment.
Technical Specifications
-
Wing Span: 1050mm (41.4 inch)
-
Length:745mm (29.3 inch)
-
Height:185mm (7.3 inch)
-
Wing Area: 14d㎡ （217 inch)
-
Normal Takeoff Weight: 650g (23oz)
-
Maximum Takeoff Weight: 1250g (44oz)
-
Maximum Airspeed: 110KM/H (59kn)
-
Stall Speed: 25KM/H (13.5kn)
Test Data of 3S 1800 MAH LI-PO Battery:
-
Maximum Cruise Time: ≥35mins
-
Maximum Range: ≥25kms
-
Maximum Load: 600g (21oz)
