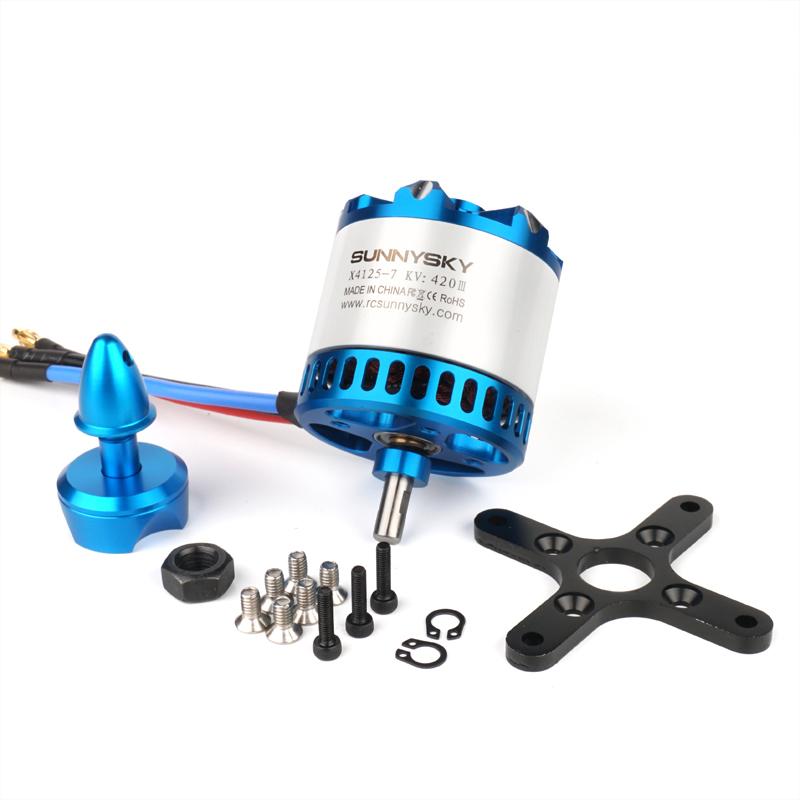

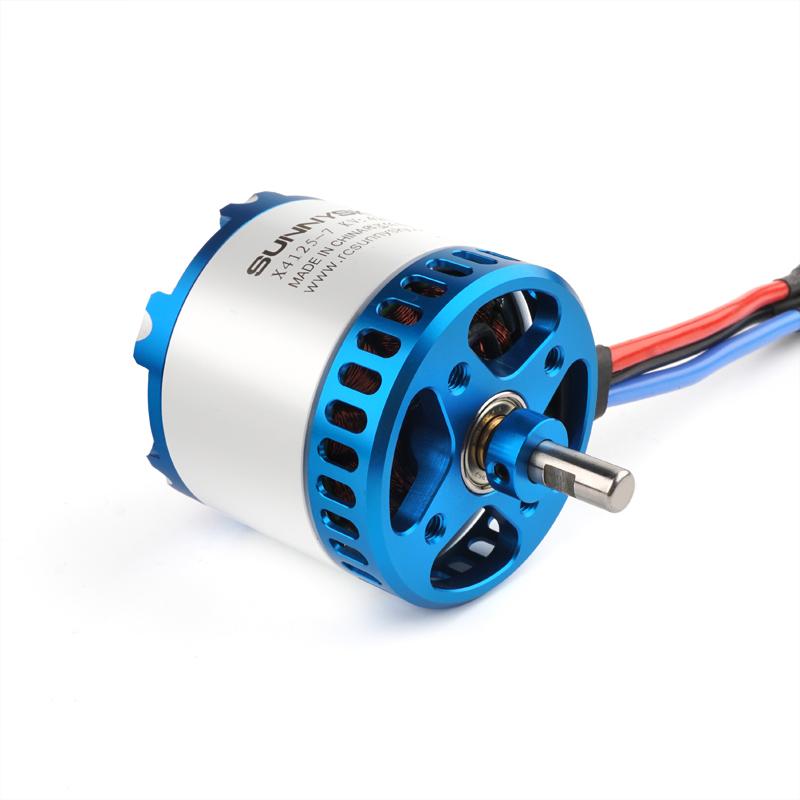

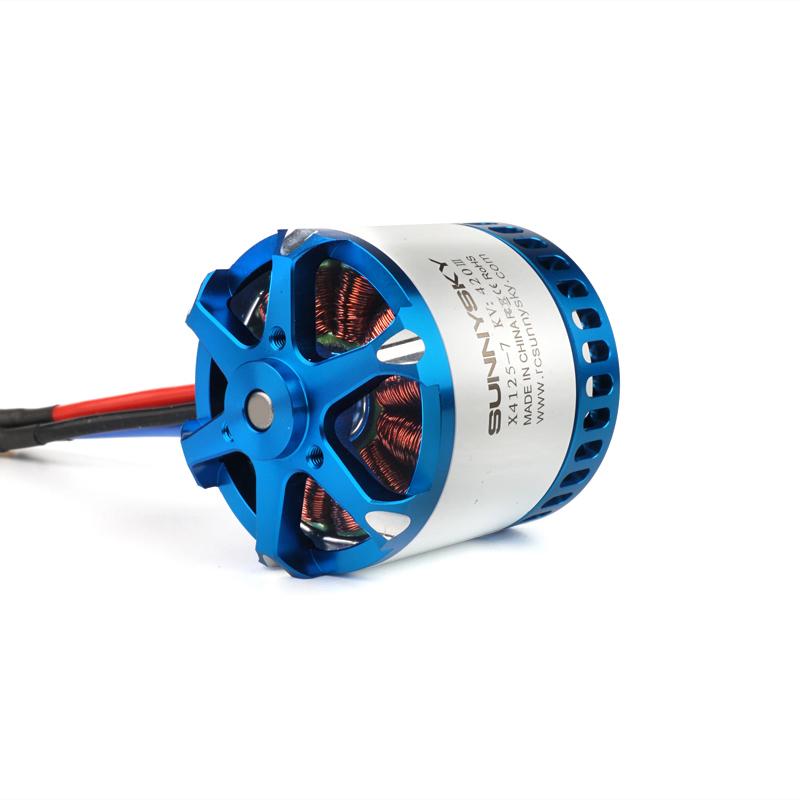

SunnySky X Series V3 X4125 V3 Brushless Motors
SunnySky X Series V3 X4125 V3 Brushless Motors
SunnySky X Series V3 X4125 V3 Brushless Motors
SunnySky X Series V3 X4125 V3 Brushless Motors
SunnySky X Series V3 X4125 V3 Brushless Motors
Roll over image to zoom in Click on image to zoom
SunnySky X Series V3 X4125 V3 Brushless MotorsSunnySky X Series V3 X4125 V3 Brushless MotorsSunnySky X Series V3 X4125 V3 Brushless MotorsSunnySky X Series V3 X4125 V3 Brushless MotorsSunnySky X Series V3 X4125 V3 Brushless Motors

SunnySky X Series V3 X4125 V3 Brushless Motors

SunnySky USASKU: SS-XV3-X4125-420
KV: 420
Price:
$119.99

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
JL
Great motor for 60 size aircraft

I put this in a hanger9 60 size twist. Unlimited performance and great battery life.

W
William W.
Great motors

I've bought two of the 4125 480kv Sunnysky motors, outperform the eflite G60 470. BuddyRC great service, they even answer the phone.

C
Casey D.
Massive power!!

I ordered this motor for the new OMP 60” Edge 540. It’s a freaking rocket!! I paired it with a 90a ESC and a EOLO 15X8 prop on 6s. It’s a beast!!

A
Arkie
SunnySky Series V3 4125 motor

Beautifully manufactured motor. Can’t wait to see it in the air in my OMP Edge 540! Buddy RC customer support is excellent.

Download Manual

Description

[TABS]OVERVIEW

KV420
Stator Diameter 41mm Rotor Diameter 49.7mm
Stator Thickness 25mm Body Length 54mm
No.of Stator Slots 12 Max Lipo Cell 6S
No.of Rotor Poles 14 ESC 80-100A
Motor Kv 420 Recommended Prop(inch) 6S(EOLO15*8/15*10/16*8/16*10)
No-load current 1.4A/10V
Motor Resistance 20.5mΩ
Max Continuous Current 90A/30s
Max Continuous Power 2250W
Weight 351g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
EOLO 15*8 22.2 2.5 500 55.5 9.01 2726 107℃ 4min29s
3.9 750 86.58 8.66 3300
5.5 1000 122.1 8.19 3789
7.3 1250 162.06 7.71 4262
9.3 1500 206.46 7.27 4639
11.4 1750 253.08 6.91 4980
13.6 2000 301.92 6.62 5329
15.6 2250 346.32 6.50 5582
18.1 2500 401.82 6.22 5890
20.7 2750 459.54 5.98 6170
23.6 3000 523.92 5.73 6448
29.3 3500 650.46 5.38 6976
49.8 4860 1105.56 4.40 8107
25 2.3 500 57.5 8.70 2725
3.6 750 90 8.33 3309
4.9 1000 122.5 8.16 3788
6.5 1250 162.5 7.69 4298
8.3 1500 207.5 7.23 4602
10.1 1750 252.5 6.93 4967
12.2 2000 305 6.56 5302
14.2 2250 355 6.34 5670
16.4 2500 410 6.10 5872
18.7 2750 467.5 5.88 6212
21.2 3000 530 5.66 6457
26.5 3500 662.5 5.28 6850
33 4000 825 4.85 7400
45.6 5000 1140 4.39 8176
61 6090 1525 3.99 8953
EOLO 15*10 22.2 2.5 500 55.5 9.01 2523 100℃ 2min50s
3.9 750 86.58 8.66 3200
5.7 1000 126.54 7.90 3540
7.6 1250 168.72 7.41 3950
9.6 1500 213.12 7.04 4280
11.8 1750 261.96 6.68 4637
14.2 2000 315.24 6.34 4925
16.7 2250 370.74 6.07 5290
19.5 2500 432.9 5.78 5482
22.4 2750 497.28 5.53 5715
25.3 3000 561.66 5.34 6011
32 3500 710.4 4.93 6486
39 4000 865.8 4.62 6920
60 5100 1332 3.83 7837
25 2.3 500 57.5 8.70 2526
3.6 750 90 8.33 3175
5.2 1000 130 7.69 3543
6.8 1250 170 7.35 3957
8.7 1500 217.5 6.90 4270
10.7 1750 267.5 6.54 4639
12.8 2000 320 6.25 4969
16.35 2250 408.75 5.50 5246
17.5 2500 437.5 5.71 5470
20 2750 500 5.50 5820
22.9 3000 572.5 5.24 5988
28.9 3500 722.5 4.84 6596
35.5 4000 887.5 4.51 6959
52.2 5000 1305 3.83 7736
77.2 6120 1930 3.17 8542
EOLO 16*8 22.2 2.2 500 48.84 10.24 2413 106℃ 2min50s
3.6 750 79.92 9.38 2955
5 1000 111 9.01 3420
6.8 1250 150.96 8.28 3746
8.6 1500 190.92 7.86 4139
10.6 1750 235.32 7.44 4450
12.7 2000 281.94 7.09 4736
15 2250 333 6.76 5000
17.3 2500 384.06 6.51 5275
19.7 2750 437.34 6.29 5516
22.2 3000 492.84 6.09 5726
28 3500 621.6 5.63 6222
33.9 4000 752.58 5.32 6569
59.3 5750 1316.46 4.37 7741
25 2 500 50 10.00 2435
3.3 750 82.5 9.09 2925
4.6 1000 115 8.70 3385
6.1 1250 152.5 8.20 3800
7.7 1500 192.5 7.79 4114
9.55 1750 238.75 7.33 4500
11.4 2000 285 7.02 4754
13.4 2250 335 6.72 5053
15.4 2500 385 6.49 5298
17.65 2750 441.25 6.23 5530
20 3000 500 6.00 5746
25.2 3500 630 5.56 6174
30.6 4000 765 5.23 6590
43.9 5000 1097.5 4.56 7300
57.5 6000 1437.5 4.17 7954
74.8 7130 1870 3.81 8588
EOLO 16*10 22.2 2.3 500 51.06 9.79 2240 137℃ 1min40s
3.7 750 82.14 9.13 2750
5.3 1000 117.66 8.50 3170
7 1250 155.4 8.04 3490
8.9 1500 197.58 7.59 3810
11.1 1750 246.42 7.10 4095
13 2000 288.6 6.93 4395
15.4 2250 341.88 6.58 4636
18 2500 399.6 6.26 4876
20.25 2750 449.55 6.12 5160
23 3000 510.6 5.88 5419
28.9 3500 641.58 5.46 5709
35.8 4000 794.76 5.03 6114
50.9 5000 1129.98 4.42 6793
72.8 6330 1616.16 3.92 7467
25 2.1 500 52.5 9.52 2259
3.3 750 82.5 9.09 2700
4.6 1000 115 8.70 3129
6.25 1250 156.25 8.00 3478
7.9 1500 197.5 7.59 3775
9.8 1750 245 7.14 4110
11.7 2000 292.5 6.84 4354
13.8 2250 345 6.52 4619
15.9 2500 397.5 6.29 4853
18.4 2750 460 5.98 5086
20.8 3000 520 5.77 5377
26.2 3500 655 5.34 5747
32.1 4000 802.5 4.98 6155
47.9 5000 1197.5 4.18 6820
62.5 6000 1562.5 3.84 7422
89 7510 2225 3.38 8257



KV440
Stator Diameter 41mm Rotor Diameter 49.7mm
Stator Thickness 25mm Body Length 54mm
No.of Stator Slots 12 Max Lipo Cell 6S
No.of Rotor Poles 14 ESC 80-100A
Motor Kv 440 Recommended Prop(inch) 6S(EOLO15*8/15*10/16*8/16*10)
No-load current 1.45A/10V
Motor Resistance 18.2mΩ
Max Continuous Current 97A/30s
Max Continuous Power 2430W
Weight

344g





Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
EOLO 15*8 22.2 2.5 500 55.5 9.01 2803 110℃ 3min29s
3.9 750 86.58 8.66 3430
5.5 1000 122.1 8.19 3902
7.3 1250 162.06 7.71 4302
9.25 1500 205.35 7.30 4660
11.3 1750 250.86 6.98 5059
13.5 2000 299.7 6.67 5378
15.9 2250 352.98 6.37 5680
18.4 2500 408.48 6.12 5910
21.1 2750 468.42 5.87 6200
24 3000 532.8 5.63 6530
29.7 3500 659.34 5.31 6970
37.1 4000 823.62 4.86 7470
53.1 5140 1178.82 4.36 8317
25 2.3 500 57.5 8.70 2810
3.5 750 87.5 8.57 3500
5.1 1000 127.5 7.84 3910
6.6 1250 165 7.58 4320
8.4 1500 210 7.14 4666
10.3 1750 257.5 6.80 5060
12.25 2000 306.25 6.53 5400
14.3 2250 357.5 6.29 5701
16.5 2500 412.5 6.06 5900
18.8 2750 470 5.85 6216
21.5 3000 537.5 5.58 6477
26.8 3500 670 5.22 6903
33 4000 825 4.85 7460
45.7 5000 1142.5 4.38 8187
68 6300 1700 3.71 9129
EOLO 15*10 22.2 2.4 500 53.28 9.38 2554 130℃ 1min56s
3.8 750 84.36 8.89 3125
5.6 1000 124.32 8.04 3610
7.4 1250 164.28 7.61 3980
9.6 1500 213.12 7.04 4380
11.8 1750 261.96 6.68 4659
14.6 2000 324.12 6.17 5057
17 2250 377.4 5.96 5350
19.9 2500 441.78 5.66 5580
22.6 2750 501.72 5.48 5877
26 3000 577.2 5.20 6100
33.2 3500 737.04 4.75 6589
41.1 4000 912.42 4.38 5909
64 5240 1420.8 3.69 7890
25 2.1 500 52.5 9.52 2556
3.4 750 85 8.82 3200
5 1000 125 8.00 3600
6.6 1250 165 7.58 3990
8.6 1500 215 6.98 4370
10.7 1750 267.5 6.54 4684
12.8 2000 320 6.25 5052
15 2250 375 6.00 5306
17.55 2500 438.75 5.70 5550
20.4 2750 510 5.39 5850
23 3000 575 5.22 6050
29.3 3500 732.5 4.78 6540
36 4000 900 4.44 6950
52.8 5000 1320 3.79 7760
80 6300 2000 3.15 8627
EOLO 16*8 22.2 2.3 500 51.06 9.79 2399 124℃ 2min40s
3.6 750 79.92 9.38 2950
5.2 1000 115.44 8.66 3370
6.9 1250 153.18 8.16 3790
8.6 1500 190.92 7.86 4089
10.7 1750 237.54 7.37 4420
12.7 2000 281.94 7.09 4679
15 2250 333 6.76 4960
17.5 2500 388.5 6.44 5224
19.8 2750 439.56 6.26 5520
22.5 3000 499.5 6.01 5827
28.1 3500 623.82 5.61 6218
34.5 4000 765.9 5.22 6664
49.3 5000 1094.46 4.57 7314
64.4 6140 1429.68 4.29 8026
25 2 500 50 10.00 2500
3.2 750 80 9.38 3016
4.6 1000 115 8.70 3383
6.2 1250 155 8.06 3879
7.8 1500 195 7.69 4180
9.5 1750 237.5 7.37 4430
11.6 2000 290 6.90 4760
13.5 2250 337.5 6.67 5002
15.5 2500 387.5 6.45 5290
17.7 2750 442.5 6.21 5570
20 3000 500 6.00 5842
24.9 3500 622.5 5.62 6280
30.5 4000 762.5 5.25 6598
44 5000 1100 4.55 7360
57.3 6000 1432.5 4.19 7924
82.7 7730 2067.5 3.74 8803
EOLO 16*10 22.2 2.3 500 51.06 9.79 2222 115℃ 1min14s
3.7 750 82.14 9.13 2724
5.3 1000 117.66 8.50 3097
7 1250 155.4 8.04 3489
8.9 1500 197.58 7.59 3800
10.9 1750 241.98 7.23 4077
13.1 2000 290.82 6.88 4375
15.6 2250 346.32 6.50 4610
17.9 2500 397.38 6.29 4860
20.7 2750 459.54 5.98 5096
23 3000 510.6 5.88 5270
28.7 3500 637.14 5.49 5680
35.7 4000 792.54 5.05 6022
53.7 5000 1192.14 4.19 6800
80 6600 1776 3.72 7666
25 2.2 500 55 9.09 2249
3.3 750 82.5 9.09 2720
4.8 1000 120 8.33 3127
6.4 1250 160 7.81 3427
8.1 1500 202.5 7.41 3800
9.85 1750 246.25 7.11 4098
11.6 2000 290 6.90 4440
13.65 2250 341.25 6.59 4596
15.8 2500 395 6.33 4867
18 2750 450 6.11 5085
20.6 3000 515 5.83 5310
25.7 3500 642.5 5.45 5780
31.6 4000 790 5.06 6120
47.5 5000 1187.5 4.21 6788
61.2 6000 1530 3.92 7390
97.1 8100 2427.5 3.34 8389



KV480
Stator Diameter 41mm Rotor Diameter 49.7mm
Stator Thickness 25mm Body Length 54mm
No.of Stator Slots 12 Max Lipo Cell 6S
No.of Rotor Poles 14 ESC 100A
Motor Kv 480 Recommended Prop(inch) 6S(EOLO15*8/15*10/16*8)
No-load current 1.8A/10V
Motor Resistance 14.3mΩ
Max Continuous Current 110A/30s
Max Continuous Power 2750W
Weight 355g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
EOLO 15*8 22.57 2.10 446 47.48 9.38 2481 110℃ 2min19s
22.54 3.56 755 80.15 9.42 3191
22.49 5.30 1017 119.17 8.53 3805
22.45 7.13 1297 160 8.1 4260
22.41 9.04 1530 202.54 7.55 4531
22.38 10.68 1730 238.9 7.24 4753
22.32 13.12 2010 292.74 6.86 5202
22.26 15.14 2241 336.97 6.65 5503
22.22 17.52 2483 389.18 6.37 5659
22.17 20.60 2755 456.59 6.03 6081
22.07 24.22 3067 534.51 5.73 6416
21.94 30.66 3563 672.59 5.29 6860
21.77 37.68 4016 820.22 4.89 7259
21.47 52.09 5002 1118.35 4.47 8037
21.05 73.46 6038 1546.26 3.9 8629
24.72 3.36 836 83.05 10.06 6436
24.73 2.19 498 54.23 9.17 2616
24.72 2.85 812 70.42 11.53 3066
24.7 4.76 1000 117.44 8.51 3650
24.66 6.23 1227 153.58 7.99 4164
24.62 8.20 1512 201.78 7.49 4472
24.58 10.12 1744 248.79 7.01 4756
24.53 12.25 2012 300.54 6.69 5179
24.47 14.83 2299 362.81 6.33 5617
24.42 17.09 2532 417.41 6.06 5955
24.38 19.25 2772 469.21 5.9 6114
24.35 21.15 2980 515.05 5.78 6291
24.22 26.41 3430 639.74 5.36 6801
24.06 34.42 4041 828.21 4.87 7318
23.79 47.06 5023 1119.58 4.48 7993
23.46 62.02 5929 1455.05 4.07 8610
22.96 85.19 7123 1956.05 3.64 8947
EOLO 16*8 22.55 2.16 529 48.77 10.85 2164 118℃ 1min
22.52 3.37 768 75.93 10.11 2863
22.5 4.51 894 101.38 8.81 3227
22.46 6.29 1229 141.2 8.7 3570
22.41 9.00 1585 201.75 7.85 4185
22.38 10.21 1771 228.58 7.74 4409
22.32 12.71 2055 283.73 7.24 4714
22.28 14.96 2310 333.35 6.93 4966
22.23 16.86 2504 374.7 6.68 5161
22.18 19.29 2738 427.8 6.4 5409
22.11 21.84 3025 482.9 6.26 5632
22 26.93 3438 592.52 5.8 5999
21.88 32.97 3924 721.38 5.43 6415
21.51 50.59 5066 1088.16 4.65 7195
21.22 64.58 5966 1370.28 4.35 7761
20.77 85.41 7032 1774 3.96 8400
25.26 1.90 540 47.91 11.27 2229
25.24 2.79 741 70.29 10.54 2760
25.23 3.83 964 96.73 9.96 3162
25.18 5.71 1274 143.7 8.86 3659
25.14 7.16 1504 179.9 8.36 4001
25.11 8.62 1724 216.52 7.96 4265
25.06 11.13 2043 278.99 7.32 4597
25 13.24 2317 330.94 6.99 4926
24.96 15.05 2527 375.59 6.72 5149
24.93 17.00 2752 423.76 6.49 5384
24.85 19.97 3074 496.17 6.19 5692
24.78 24.30 3493 602.05 5.8 6077
24.62 29.56 3980 727.66 5.46 6407
24.35 43.83 5058 1067.18 4.73 7195
24.1 57.55 5991 1386.93 4.31 7785
23.68 74.56 6959 1765.46 3.94 8345
23.19 101.36 8148 2350.51 3.46 8891



KV610
Stator Diameter 41mm Rotor Diameter 49.7mm
Stator Thickness 25mm Body Length 49mm
No.of Stator Slots 12 Max Lipo Cell 5-6S
No.of Rotor Poles 14 ESC 100-130A
Motor Kv 610 Recommended Prop(inch) 5S(EOLO15*8/15*10/16*8/16*10) 6S(EOLO13*7/14*7/14*8)
No-load current 2.5A/10V
Motor Resistance 9.7mΩ
Max Continuous Current 120A/30s
Max Continuous Power 2760W
Weight 355g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
EOLO 13*7 22.56 2.91 507 65.53 7.74 3566 90℃ 5min
22.53 4.49 746 101.06 7.38 4327
22.48 6.70 1021 150.54 6.78 5146
22.44 8.65 1245 194.1 6.41 5495
22.38 10.84 1474 242.62 6.07 6083
22.33 14.04 1800 313.6 5.74 6588
22.26 16.37 2000 364.3 5.48 6902
22.21 19.51 2257 433.27 5.2 7452
22.15 22.30 2497 493.87 5.05 7790
22.09 25.76 2753 569.08 4.83 8198
21.99 29.34 3011 645.14 4.66 8634
21.83 37.80 3570 825.19 4.32 9051
21.68 45.24 3981 980.86 4.05 9616
21.06 73.00 5217 1537.4 3.39 11114
25.1 2.45 496 61.57 8.05 3413
25.05 4.23 769 105.83 7.27 4294
25.02 6.16 1033 154.22 6.69 4994
24.96 7.91 1255 197.38 6.35 5434
24.93 10.30 1532 256.65 5.97 6148
24.87 12.44 1746 309.4 5.64 6543
24.83 14.99 1989 372.12 5.34 7082
24.76 17.81 2269 440.87 5.14 7541
24.68 21.02 2556 518.77 4.92 7938
24.65 23.03 2724 567.66 4.79 8017
24.59 26.13 2986 642.63 4.64 8497
24.41 34.03 3538 830.59 4.25 9223
24.28 41.08 3987 997.44 3.99 9824
23.86 58.44 4923 1394.28 3.53 10831
23.32 89.22 6089 2080.56 2.92 11987
EOLO 14*7 22.53 2.97 509 66.89 7.61 3225 105℃ 2min40s
22.49 4.61 750 103.72 7.23 3929
22.48 6.61 1025 148.59 6.9 4538
22.42 8.61 1286 192.92 6.66 5070
22.4 10.80 1527 241.98 6.31 5544
22.34 12.99 1766 290.26 6.08 5872
22.29 15.60 2004 347.72 5.76 6335
22.24 17.57 2214 390.66 5.66 6638
22.17 20.71 2492 459.09 5.42 7033
22.09 24.29 2762 536.49 5.14 7346
22.03 27.04 3016 595.64 5.06 7629
21.91 33.99 3505 744.65 4.7 8227
21.76 40.75 3987 886.63 4.49 8711
21.46 57.41 4924 1231.99 3.99 9128
20.81 87.23 6393 1815.21 3.52 8254
25.1 2.68 517 67.16 7.69 6492
25.07 4.11 745 103.11 7.22 7736
25.03 6.03 1034 150.88 6.85 9338
25.01 7.54 1239 188.6 6.57 9808
24.94 9.63 1499 240.14 6.24 10611
24.92 11.70 1754 291.66 6.01 11315
24.89 13.55 1940 337.35 5.75 12130
24.81 16.67 2237 413.45 5.41 13330
24.75 19.42 2557 480.62 5.32 13974
24.7 22.17 2759 547.67 5.03 14598
24.65 24.47 2969 603.08 4.92 15022
24.5 30.21 3498 740.09 4.72 16228
24.37 37.04 3972 902.76 4.39 17253
24.04 52.30 5018 1257.24 3.99 18035
23.67 70.85 5935 1677.09 3.53 17097
23.1 102.90 7127 2377.05 2.99 14441
EOLO 14*8 22.62 2.69 486 60.84 7.99 3070 108℃ 2min
22.6 4.33 735 97.81 7.51 3725
22.57 6.15 991 138.76 7.13 4303
22.53 8.39 1249 189 6.61 4768
22.48 10.33 1465 232.19 6.3 5201
22.44 12.75 1722 286.11 6.01 5573
22.37 15.78 2009 352.9 5.69 6062
22.3 18.70 2284 417 5.47 6398
22.24 21.82 2521 485.18 5.19 6825
22.16 24.52 2743 543.45 5.04 7108
22.09 28.06 2984 619.84 4.81 7330
21.93 35.70 3549 782.94 4.53 7872
21.77 43.43 4033 945.38 4.26 8380
21.39 62.15 5020 1329.34 3.77 9336
20.74 95.12 6257 1972.87 3.17 10268
25.1 2.83 503 70.9 7.08 3164
25.07 4.51 777 113.06 6.87 3834
25.03 6.38 1037 159.71 6.49 4517
24.99 8.21 1270 205.16 6.18 4978
24.94 10.05 1495 250.59 5.96 5364
24.9 12.53 1762 312.04 5.64 5745
24.81 15.24 2042 378.1 5.4 6229
24.8 17.56 2284 435.46 5.24 6524
24.72 20.53 2538 507.42 5 6914
24.64 23.52 2753 579.48 4.75 7145
24.59 26.52 3037 652.22 4.65 7437
24.47 31.81 3483 778.41 4.47 7869
24.31 39.59 4024 962.4 4.18 8401
23.94 56.58 5001 1354.42 3.69 9324
23.52 79.81 5911 1877.01 3.14 10180
22.88 114.21 7088 2613.19 2.71 10902
EOLO 15*8 18.74 2.87 497 53.72 9.25 2768 98℃ 1min10s
18.7 4.65 744 86.86 8.56 3398
18.66 6.49 1007 121.1 8.31 3815
18.61 8.42 1238 156.67 7.89 4034
18.56 10.77 1464 199.9 7.32 4578
18.52 13.82 1776 256 6.93 4986
18.43 16.73 2024 308.35 6.56 5268
18.38 19.62 2250 360.61 6.23 5653
18.3 23.00 2533 420.9 6.01 5980
18.23 26.60 2785 484.91 5.74 6116
18.15 30.33 3029 550.54 5.5 6437
17.96 39.45 3527 708.55 4.97 6834
17.79 47.05 3950 837 4.71 7291
17.07 80.41 5435 1372.61 3.95 8569
21.13 2.35 499 49.65 10.04 2689
21.09 4.06 752 85.66 8.77 3361
21.05 6.05 1033 127.33 8.11 3694
21.01 7.75 1259 162.89 7.72 4212
20.95 10.24 1519 214.42 7.08 4546
20.92 12.11 1726 253.34 6.81 4901
20.84 14.73 1999 306.99 6.51 5273
20.79 18.26 2309 379.64 6.08 5874
20.74 20.40 2506 423.11 5.92 6016
20.69 22.72 2682 470.01 5.7 6158
20.6 27.48 3048 566 5.38 6540
20.44 34.53 3470 705.81 4.91 7027
20.26 42.93 4035 869.74 4.63 7531
19.96 60.22 4966 1202.03 4.13 8246
19.18 97.69 6478 1873.67 3.45 9358
EOLO 15*10 18.72 3.19 502 59.73 8.4 2472 120℃ 1min
18.69 5.12 774 95.76 8.08 3240
18.63 7.21 1013 134.24 7.54 3366
18.59 9.66 1287 179.5 7.16 4131
18.52 11.96 1509 221.51 6.81 4351
18.46 14.87 1749 274.4 6.37 4601
18.42 18.02 2006 331.89 6.04 4988
18.32 21.63 2273 396.24 5.73 5277
18.26 25.04 2518 457.26 5.5 5643
18.16 28.74 2737 521.86 5.24 5900
18.06 32.42 2974 585.5 5.07 6111
17.88 41.82 3438 747.68 4.59 6582
17.64 54.20 3937 956.05 4.11 7002
16.79 95.17 5450 1597.85 3.41 7985
21.11 2.61 499 55.13 9.05 2555
21.06 4.27 765 89.88 8.5 3079
21.05 5.95 972 125.24 7.76 3550
20.97 8.46 1265 177.38 7.13 4067
20.93 10.58 1491 221.33 6.73 4392
20.86 13.57 1783 283.04 6.29 4706
20.79 16.73 2058 347.77 5.91 5047
20.74 19.23 2253 398.76 5.64 5372
20.65 22.43 2529 463.17 5.46 5600
20.59 25.97 2761 534.63 5.16 5868
20.51 29.23 3010 599.44 5.02 6202
20.33 37.82 3530 768.94 4.59 6470
20.11 49.18 4051 988.96 4.09 7111
19.66 72.27 5036 1420.78 3.54 7833
18.77 112.19 6061 2105.88 2.87 8686
EOLO 16*8 18.76 2.70 520 50.63 10.27 2484 124℃ 1min
18.73 4.06 732 76 9.63 2971
18.68 6.17 1005 115.16 8.72 3443
18.63 8.04 1237 149.69 8.26 3838
18.59 10.68 1534 198.54 7.72 4217
18.53 13.10 1781 242.66 7.33 4429
18.5 15.56 1996 287.78 6.93 4777
18.41 17.90 2200 329.5 6.67 5036
18.33 22.15 2555 406.04 6.29 5392
18.26 25.27 2797 461.43 6.06 5580
18.19 28.74 3034 522.83 5.8 5814
18.03 35.79 3508 645.25 5.43 6248
17.87 44.12 3969 788.47 5.03 6621
17.4 66.16 5008 1151.18 4.35 7440
16.87 94.34 6117 1591.48 3.84 8134
21.04 2.28 498 47.9 10.4 2461
20.99 3.76 752 78.98 9.51 2997
20.94 5.56 1018 116.48 8.74 3434
20.92 7.14 1236 149.32 8.27 3819
20.86 9.37 1506 195.39 7.7 4170
20.83 11.45 1734 238.52 7.27 4465
20.76 14.68 2069 304.65 6.79 4848
20.73 16.17 2208 335.28 6.58 5063
20.66 19.46 2510 402.1 6.24 5288
20.61 22.62 2766 466.21 5.93 5547
20.54 25.38 2996 521.24 5.74 5855
20.36 32.57 3544 663.2 5.34 6391
20.2 40.99 4005 827.99 4.83 6623
19.8 59.40 5098 1176.13 4.33 7416
19.43 79.18 5961 1538.54 3.87 8057
18.78 108.80 7073 2043.17 3.46 8619
EOLO 16*10 18.77 2.23 512 41.87 12.21 1991 120℃ 1min
18.74 3.91 749 73.21 10.23 2420
18.69 5.63 1013 105.14 9.63 2962
18.65 7.62 1232 142.03 8.67 3341
18.61 10.06 1488 187.29 7.94 3815
18.56 13.20 1809 245.02 7.38 3867
18.51 15.16 1983 280.63 7.06 4316
18.45 18.11 2248 334.09 6.72 4578
18.37 21.10 2475 387.57 6.38 4760
18.31 24.75 2731 453.11 6.02 5048
18.22 29.12 3044 530.6 5.73 5263
18.15 32.68 3281 593.08 5.53 5563
18.07 36.67 3502 662.62 5.28 5802
17.96 41.01 3750 736.57 5.09 5937
17.85 46.78 4054 834.95 4.85 6078
17.37 70.78 4937 1229.37 4.01 6786
16.64 107.53 6310 1789.33 3.52 7577
21.08 2.00 507 42.18 12.01 2169
21.02 3.43 739 72.05 10.26 2674
21.03 4.87 973 102.47 9.49 2967
20.96 6.92 1236 145.1 8.51 3379
20.94 8.93 1473 186.88 7.88 3708
20.87 11.43 1763 238.6 7.38 4077
20.83 13.39 1959 278.8 7.02 4318
20.77 17.30 2317 359.38 6.44 4676
20.71 19.56 2504 405.14 6.18 4895
20.62 22.86 2785 471.33 5.9 5115
20.56 26.33 3056 541.4 5.64 5329
20.38 32.67 3506 665.71 5.26 5641
20.25 40.80 4015 826.15 4.86 6112
19.79 63.61 4983 1258.9 3.95 6882
19.34 83.68 5945 1618.4 3.67 7431
18.54 124.61 7321 2310.19 3.16 8074



[/TABS]

You may also like

Recently viewed
