SunnySky USASKU: SS-XV3-X2820-500-L
KV: 500 Long Shaft
Price:
$44.95

Customer Reviews

Based on 6 reviews
83%
(5)
0%
(0)
0%
(0)
0%
(0)
17%
(1)
I
I74
Very nice powerful motor,, with an excellent cooling flow design !

Great company to purchase from,, unlike some other vendors out there ..

P
Perry B.
Still waiting to receive it

I still have not received my parts. Not happy

Hi Perry, sorry to hear it. International packages take a much longer time to be delivered, especially for US Postal Service First Class Mail.

I
Ivan L.
Ranger ex motor

What more can you say about it works great

R
Ross R.
Excellent Motors

I have this one on a 48" Extreme Flight Extra 300 and it is perfect for it. 60amp esc, 13 x 6 prop and 4s lipo makes for a super powerful and fairly light setup with goofy power. Motor is super quiet and smooth much better than any of the Torque motors I have had for this size. I have from 2304 to 30cc in Sunnysky and they all are fantastic performers. Liking the blue and white!

B
Barron C.
SunnySky 2820 V3 860kv

Superior power for the size.

12
Download Manual

Description

[TABS]OVERVIEW

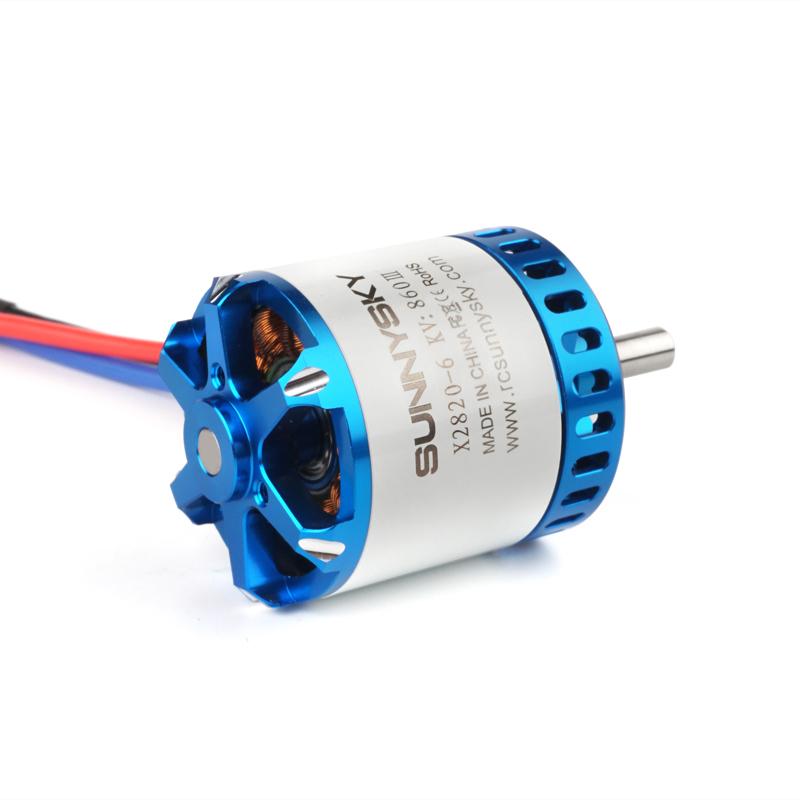

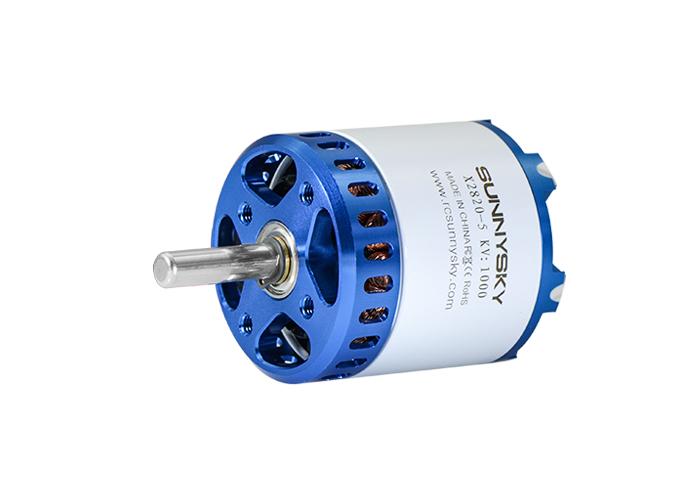

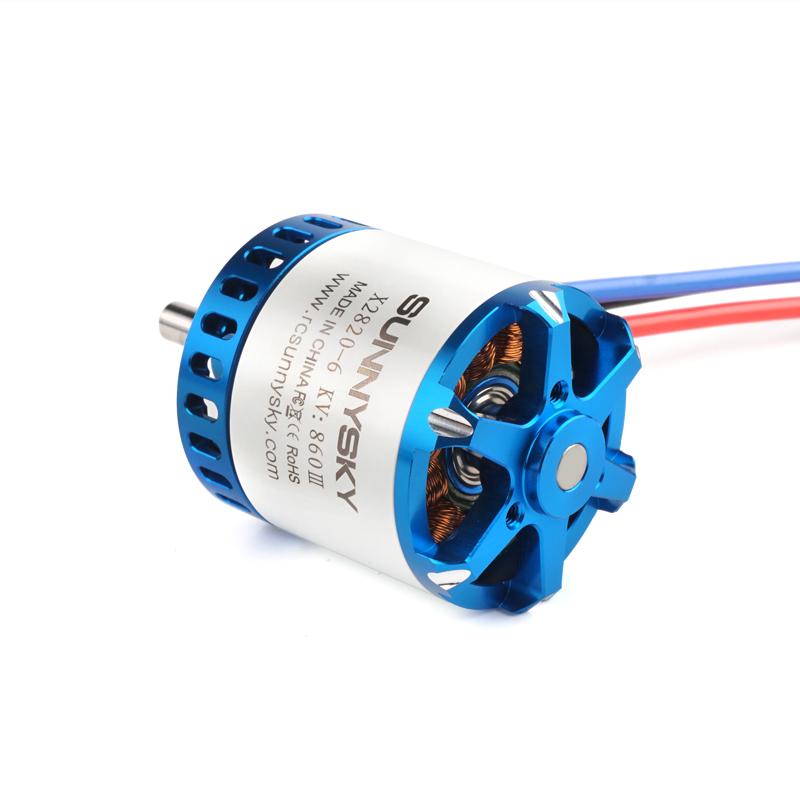

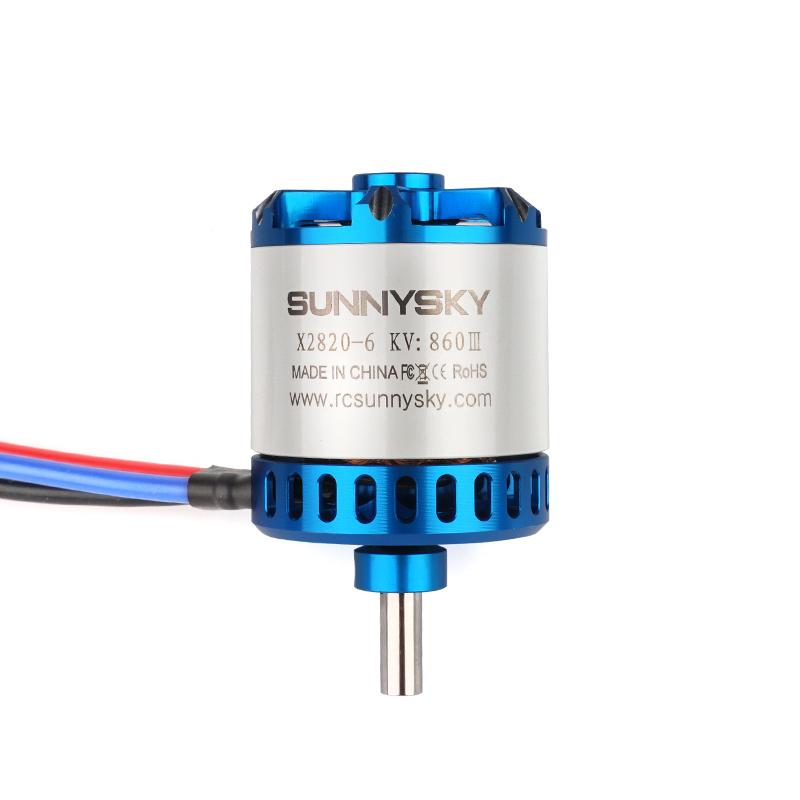

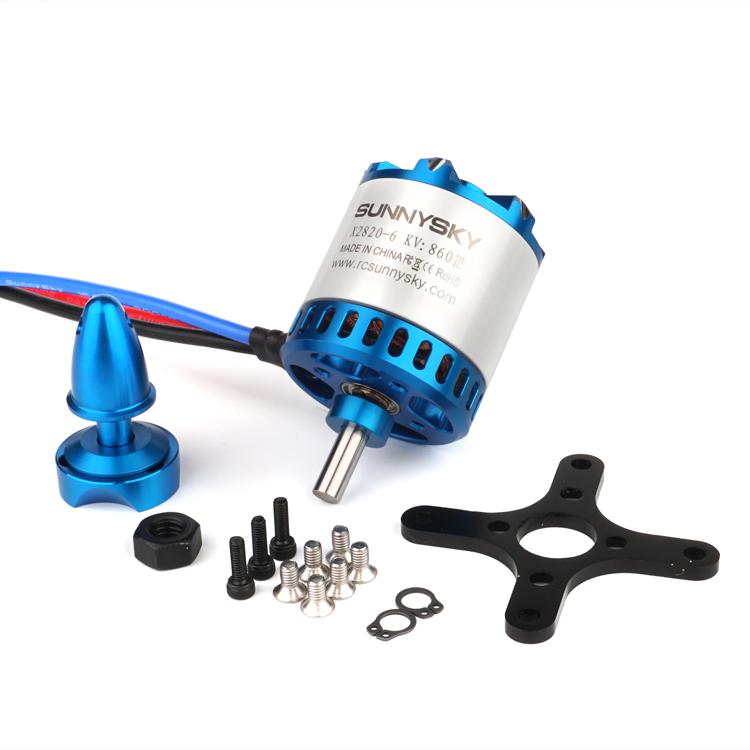

The shaft of KV500 Short Shaft version does not extend out of the case. All other motors have long shafts as shown in product photos.

KV860
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 20mm Body Length 42mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 50-60A
Motor Kv 860 Recommended Prop(inch) APC13*6.5/APC13*8/APC12*6/APC12*8
No-load current 1.3A/10V Weight for aerobatics airplane  1400g-2000g(4S APC12*6\APC12*8\APC13*6.5\APC13*8)
Motor Resistance 25.8mΩ Weight for 3D airplane 1100g-1500g(4S APC12*6\APC12*8\APC13*6.5\APC13*8)
Max Continuous Current 65A/30s
Max Continuous Power 960W
Weight 143g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC13*6.5 11.1 5.1 500 56.61 8.83 3952 79℃ 1min10s
8 750 88.8 8.45 4755
13.1 1000 145.41 6.88 5460
17.9 1250 198.69 6.29 6050
23.3 1500 258.63 5.80 6570
29.6 1750 328.56 5.33 7067
40.3 2150 447.33 4.81 7687
14.8 3.9 500 57.72 8.66 3897
6.7 750 99.16 7.56 4804
10.2 1000 150.96 6.62 5421
13.9 1250 205.72 6.08 6071
18.1 1500 267.88 5.60 6564
22.6 1750 334.48 5.23 7077
27.6 2000 408.48 4.90 7560
33.5 2250 495.8 4.54 8016
40.1 2500 593.48 4.21 8346
47.5 2750 703 3.91 8695
63.2 3350 935.36 3.58 9230
APC13*8 11.1 5 500 55.5 9.01 3710 63℃ 10min
8 750 88.8 8.45 4510
13.5 1000 149.85 6.67 5200
18.2 1250 202.02 6.19 5760
23.8 1500 264.18 5.68 6278
30 1750 333 5.26 6780
43.3 2250 480.63 4.68 7446
APC12*6 14.8 4.3 500 63.64 7.86 4510 88℃ 2min
7.2 750 106.56 7.04 5504
10.6 1000 156.88 6.37 6300
14.4 1250 213.12 5.87 7005
18.7 1500 276.76 5.42 7640
23.3 1750 344.84 5.07 8189
28.9 2000 427.72 4.68 8706
34.9 2250 516.52 4.36 9100
41.9 2500 620.12 4.03 9626
50.4 2769 745.92 3.71 10060
APC12*8 14.8 4.3 500 63.64 7.86 4167 92℃ 2min
7.5 750 111 6.76 5088
11.5 1000 170.2 5.88 5836
15.3 1250 226.44 5.52 6540
20 1500 296 5.07 7140
25.4 1750 375.92 4.66 7676
31.7 2000 469.16 4.26 8200
39.5 2250 584.6 3.85 8700
53.1 2500 785.88 3.18 9175
60 2750 888 3.10 9431



KV1000
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 20mm Body Length 42mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 60-80A
Motor Kv 1000 Recommended Prop(inch) 4S(APC11*5.5\APC11*8) 3S(APC12*6\13*6.5)
No-load current 1.7A/10V  Weight for aerobatics airplane  1400g-1900g (3S APC13*6.5\ APC 12*6\ APC 12*8) (4S APC11*5.5\APC11*7\APC11*8)
Motor Resistance 18.5mΩ Weight for 3D airplane 1100g-1500g (3S APC13*6.5\APC13*8)
Max Continuous Current 70A/1min
Max Continuous Power 1036W
Weight 147g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC11*5.5 14.8 4.7 500 69.56 7.19 5252 66℃ 10min
7.8 750 115.44 6.50 6510
11.4 1000 168.72 5.93 7498
15.5 1250 229.4 5.45 8279
19.6 1500 290.08 5.17 9010
25.3 1750 374.44 4.67 9668
30.5 2000 451.4 4.43 10247
35.9 2250 531.32 4.23 10896
42.8 2500 633.44 3.95 11310
53.4 2989 790.32 3.78 12300
APC11*8 14.8 4.8 500 71.04 7.04 4700 69℃10min
8.75 750 129.5 5.79 5788
12.7 1000 187.96 5.32 6637
17.1 1250 253.08 4.94 7490
22.9 1500 338.92 4.43 8058
28.6 1750 423.28 4.13 8720
35.2 2000 520.96 3.84 9302
43.4 2250 642.32 3.50 9733
68.8 2760 1018.24 2.71 10950
APC12*6 11.1 5.6 500 62.16 8.04 4520 61℃10min
9.5 750 105.45 7.11 5440
13.8 1000 153.18 6.53 6280
18.7 1250 207.57 6.02 7023
24.4 1500 270.84 5.54 7613
30.8 1750 341.88 5.12 8216
38.1 2000 422.91 4.73 8760
45.3 2290 502.83 4.55 9200



KV1250
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 20mm Body Length 42mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 80A
Motor Kv 1250 Recommended Prop(inch) APC12*6/APC1050/APC9060/APC11*5.5/APC11*8
No-load current 2.5A/10V Weight for aerobatics airplane  1600g (3S APC11*5.5\ APC 11*7\ APC 11*8) (4S APC1050\APC9060)
Motor Resistance 13.1mΩ Weight for 3D airplane 1200g (3S APC11*5.5\APC12*6)
Max Continuous Current 79A/30s Weight for glider 1800g (3S APC11*5.5)
Max Continuous Power 1172W
Weight 144g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC12*6 11.1 5.7 500 63.27 7.90 4516 70℃ 3min
9.7 750 107.67 6.97 5533
15.3 1000 169.83 5.89 6246
21.2 1250 235.32 5.31 6953
28.5 1500 316.35 4.74 7588
37 1750 410.7 4.26 8120
47.7 2000 529.47 3.78 8676
62 2250 688.2 3.27 9128
72 2600 799.2 3.25 10258
APC1050 14.8 5.4 500 79.92 6.26 6185 75℃ 5min
8.6 750 127.28 5.89 7573
13.7 1000 202.76 4.93 8710
18.5 1250 273.8 4.57 9617
23.4 1500 346.32 4.33 10380
28.5 1750 421.8 4.15 11133
35 2000 518 3.86 11910
42.5 2250 629 3.58 12630
50 2500 740 3.38 13203
69.8 3090 1033.04 2.99 14858
APC9060 14.8 6.6 500 97.68 5.12 6804 67℃ 3min
10.9 750 161.32 4.65 8218
15.8 1000 233.84 4.28 9319
22.9 1250 338.92 3.69 10409
30 1500 444 3.38 11196
38.8 1750 574.24 3.05 12250
52.9 2000 782.92 2.55 12880
70.1 2678 1037.48 2.58 15009
APC11*5.5 14.8 4.9 500 72.52 6.89 5356 70℃ 1min30s
8.1 750 119.88 6.26 6499
11.9 1000 176.12 5.68 7431
16.4 1250 242.72 5.15 8372
21.3 1500 315.24 4.76 8954
27.5 1750 407 4.30 9632
34 2000 503.2 3.97 10212
41.2 2250 609.76 3.69 10895
48.5 2500 717.8 3.48 11310
58.4 2750 864.32 3.18 11800
67.5 3000 999 3.00 12375
79.2 3441 1172.16 2.94 13211
APC11*8 11.1 6.6 500 73.26 6.83 4860 66℃ 3min
11.9 750 132.09 5.68 5830
17.5 1000 194.25 5.15 6730
23.7 1250 263.07 4.75 7474
31.5 1500 349.65 4.29 8133
40.5 1750 449.55 3.89 8712
49.9 2000 553.89 3.61 9265
61 2250 677.1 3.32 9741
70 2460 777 3.17 10233



[/TABS]
