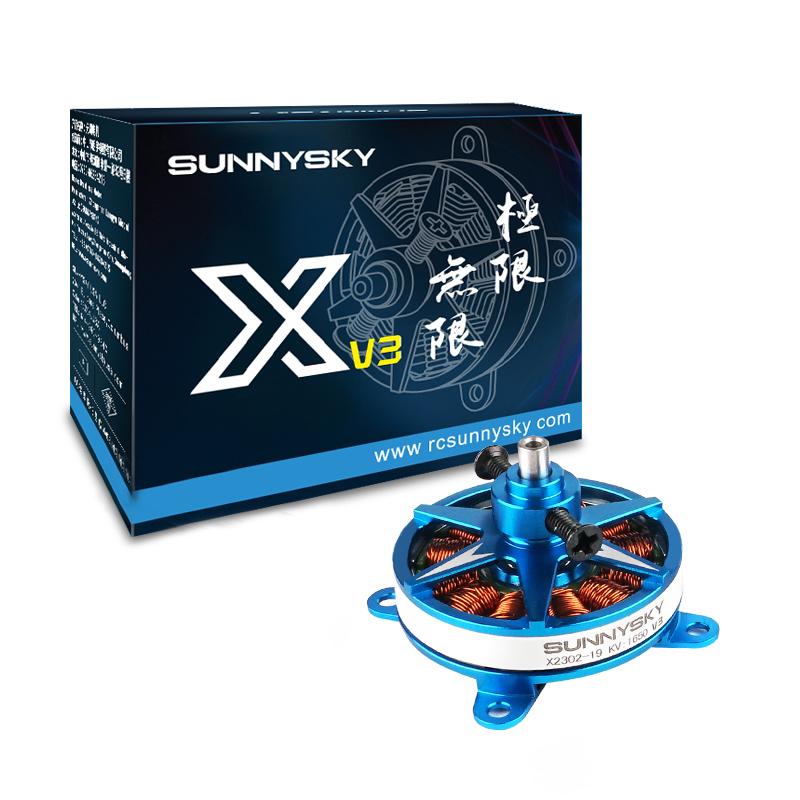

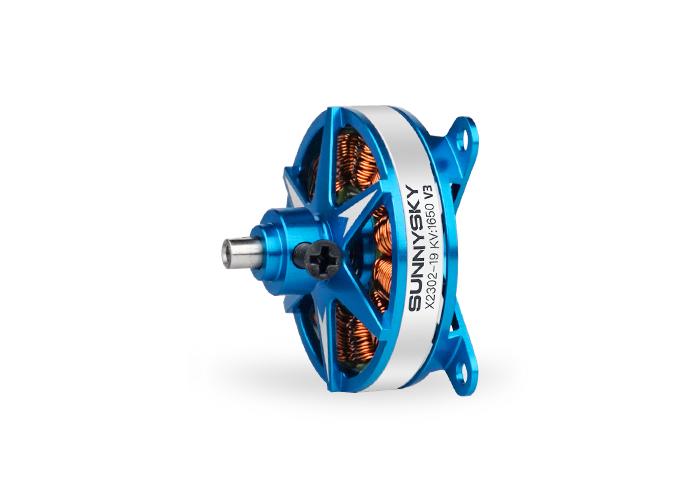

SunnySky X Series V3 X2302 V3 Brushless Motors

SunnySky USASKU: SS-XV3-X2302-1500
KV: 1500
Price:
$15.99

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Hansen T.
I love my Sunny Sky motors

I have the motor in a RC Factory Mini Pitts and it flies the plane very well with a 2S 350 mah pack.

D
Dan A.
motor

works great

R
Robert A.M.

SunnySky X Series V3 X2302 V3 Brushless Motors

J
Jeffrey V.
SunnySky X Series V3 X2302 V3

Put this little motor on my Multiplex biplane. It performs great. I fly it on a 3 cell 450 mAh packs. Great power, pulls out of a hover with authority.

Download Manual

Description

[TABS]OVERVIEW

KV1500
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1500 Body Length(Without Shaft) 17.4mm
No-load current 0.3A/10V Body Length 20.6mm
Motor Resistance 357mΩ Max Lipo Cell 2-3S
Max Continuous Current 9.5A/30s ESC 10A
Max Continuous Power 80W Recommended Prop(inch) GWS8043/GWS8060/GWS9050
Weight 15.7g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8043 7.4 0.4 50 2.96 16.89 2926 81℃ 5min
1.1 100 8.14 12.29 4010
1.7 125 12.58 9.94 4437
2.2 150 16.28 9.21 4863
2.9 175 21.46 8.15 5228
3.7 200 27.38 7.30 5575
4.7 225 34.78 6.47 5860
5.9 264 43.66 6.05 6285
8.4 0.4 50 3.36 14.88 2930
0.9 100 7.56 13.23 4050
1.4 125 11.76 10.63 4357
1.9 150 15.96 9.40 4833
2.5 175 21.00 8.33 5154
3.2 200 26.88 7.44 5544
3.9 225 32.76 6.87 5796
4.8 250 40.32 6.20 6210
6.9 316 57.96 5.45 6765
GWS8060 7.4 0.4 50 2.96 16.89 2679 82℃ 5min
1.3 100 9.62 10.40 3692
1.9 125 14.06 8.89 4040
2.6 150 19.24 7.80 4367
3.6 175 26.64 6.57 4738
4.6 200 34.04 5.88 5060
5.7 225 42.18 5.33 5318
6.8 260 50.32 5.17 5525
8.4 0.4 50 3.36 14.88 2680
1.1 100 9.24 10.82 3650
1.7 125 14.28 8.75 4041
2.4 150 20.16 7.44 4370
3.3 175 27.72 6.31 4707
4.2 200 35.28 5.67 5089
5.3 225 44.52 5.05 5403
6.5 250 54.60 4.58 5620
7.8 287 65.52 4.38 5924
GWS9050 7.4 0.4 50 2.96 16.93 2464 92℃ 5min
1.1 100 8.14 12.29 3368
1.5 125 11.10 11.26 3800
2.2 150 16.28 9.21 4138
2.9 175 21.46 8.15 4413
3.7 200 27.38 7.30 4713
4.6 225 34.04 6.61 4980
5.4 250 39.96 6.26 5193
6.9 296 51.06 5.80 5549
8.4 0.3 50 2.52 19.89 2560
0.9 100 7.56 13.23 3433
1.3 125 10.92 11.45 3786
1.9 150 15.96 9.40 4133
2.5 175 21.00 8.33 4429
3.2 200 26.88 7.44 4754
3.9 225 32.76 6.87 4967
4.9 250 41.16 6.07 5187
7.6 300 63.84 4.70 5667
8.7 340 73.08 4.65 5946



KV1650
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1650 Body Length(Without Shaft) 17.4mm
No-load current 0.35A/10V Body Length 20.6mm
Motor Resistance 316mΩ Max Lipo Cell 2-3S
Max Continuous Current 10A/30s ESC 10A
Max Continuous Power 84W Recommended Prop(inch) GWS8043/GWS8060/GWS9050
Weight 15.5g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8043 7.4 0.4 50 2.96 16.89 2824 100℃ 2min
1.1 100 8.14 12.29 3942
1.7 125 12.58 9.94 4427
2.2 150 16.28 9.21 4816
3 175 22.20 7.88 5180
3.8 200 28.12 7.11 5490
5.6 250 41.44 6.03 6077
7 290 51.80 5.60 6450
8.4 0.3 50 2.52 19.84 2923
0.9 100 7.56 13.23 3950
1.4 125 11.76 10.63 4378
2 150 16.80 8.93 4830
2.6 175 21.84 8.01 5160
3.3 200 27.72 7.22 5506
5 250 42.00 5.95 6096
7.1 300 59.64 5.03 6658
8 330 67.20 4.91 6800
GWS8060 7.4 0.4 50 2.96 16.89 2634 95℃ 2min15s
1.3 100 9.62 10.40 3655
2 125 14.80 8.45 4030
2.7 150 19.98 7.51 4370
3.7 175 27.38 6.39 4736
4.8 200 35.52 5.63 5044
7.3 250 54.02 4.63 5525
8 270 59.20 4.56 5727
8.4 0.4 50 3.36 14.88 2628
1.1 100 9.24 10.82 3609
1.7 125 14.28 8.75 4016
2.5 150 21.00 7.14 4712
3.4 175 28.56 6.13 4702
4.3 200 36.12 5.54 5000
6.9 250 57.96 4.31 5596
9.2 305 77.28 3.95 6026
GWS9050 7.4 0.4 50 2.96 16.93 2473 99℃ 1min30s
1 100 7.40 13.51 3448
1.5 125 11.10 11.26 3826
2.2 150 16.28 9.21 4098
2.9 175 21.46 8.15 4403
3.7 200 27.38 7.30 4715
5.6 250 41.44 6.03 5208
8.1 325 59.94 5.42 5734
8.4 0.3 50 2.52 19.89 2500
0.9 100 7.56 13.23 3480
1.4 125 11.76 10.63 3840
1.9 150 15.96 9.40 4078
2.5 175 21.00 8.33 4420
3.3 200 27.72 7.22 4720
5.1 250 42.84 5.84 5244
7.7 300 64.68 4.64 5659
9.1 349 76.44 4.57 6030



[/TABS]
