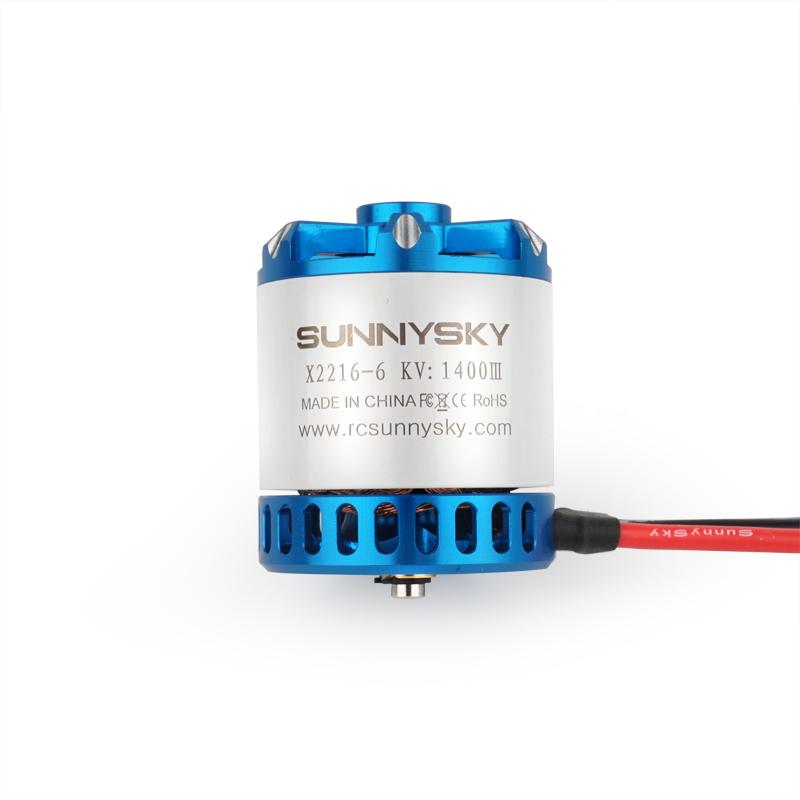

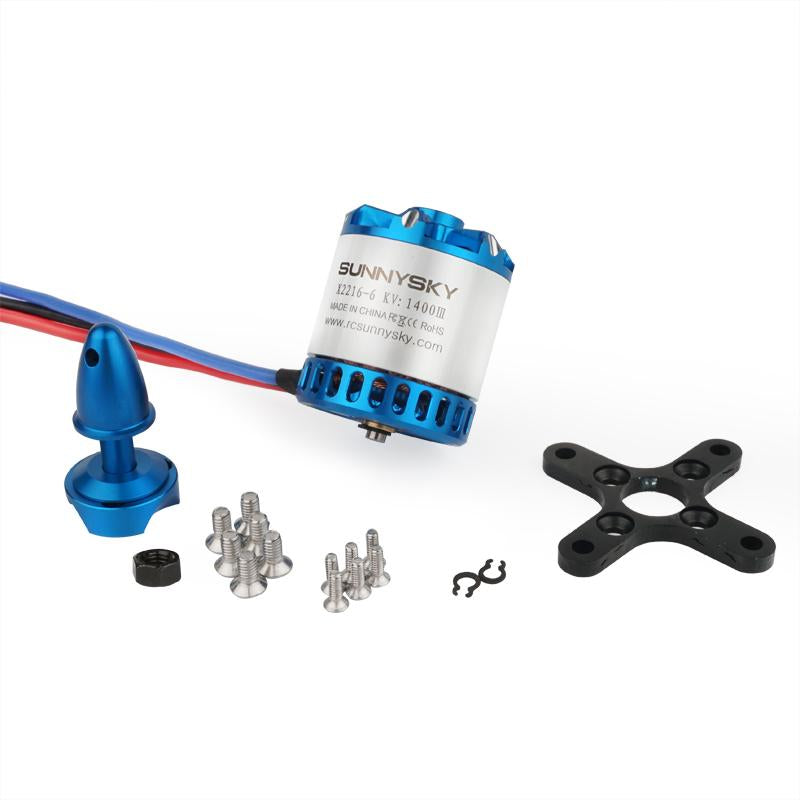

SunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft Version
SunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft Version
SunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft Version
SunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft Version
Roll over image to zoom in Click on image to zoom
SunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft VersionSunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft VersionSunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft VersionSunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft Version

SunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft Version

SunnySky USASKU: SS-XV3-X2216-S-880-V3
KV: 880 Short
Price:
$24.99

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rumen N.
Great as always

Everything was just fine. Shipping and handling on tie . No issues with the quality. My favorite hobby shop. Thank you!

A
Anthony C.
Feel the need for speed

The SunnySky x Series motor was used to replace a lack luster motor that I purchased in a EPP SBACH342 3D Airplane 39.4

D
Daniel P.
Sunnysky, short shaft motor.

Runs very smooth and strong. Looks good too.

r
randy j.
Outstanding motor

These V3's can really pump out the watts for their weight. Great motor, great price and fast shipping.

J
Jan S.
BuddyRC and SunnySky a great combination

As always, BuddyRC delivers. Great products at great prices with fast shipping. I have purchased several of the SunnySky motors from Buddy with great results. The SunnySky 2216 V3 motors always perform excellently with good power and great of efficiency. These motors are well built and perform consistently from one to the next.

12
Download Manual

Description

[TABS]OVERVIEW

These page shows the short shaft version of X2216 motors.

There are two version of this motor: long shaft version and short shaft version. Check the following photo for the difference between the versions. Both of them come with the same prop adapter and motor mount.

comparison SunnySky X2216 short shaft and long shaft versions

880KV, 1100KV, 1400KV, and 2600KV motors are short shaft version. Check the following pictures for details of the difference of long and short shaft versions.

KV880
Stator Diameter 22mm Rotor Diameter 27.7mm
Stator Thickness 16mm Body Length 34mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 50A
Motor Kv 880 Recommended Prop(inch) APC11*4.7 /APC1047 /APC9047/APC9045
No-load current 0.5A/10V Weight for aerobatics airplane 850g(4S 9060\1047\1050)
Motor Resistance 89mΩ Single weight for multirotors 500g(3S 1038\1047)
Max Continuous Current 32A/30s Single weight for multirotors 550g(4S 8038\8043\8045\9047)
Max Continuous Power 450W Weight for 3D airplane 800g(3S 1147)
Weight 67.5g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC11*4.7 11.1 0.6 100 6.66 15.02 2230 75℃ 2min10s
1.6 200 17.76 11.26 3054
2.8 300 31.08 9.65 3618
4.1 400 45.51 8.79 4119
5.65 500 62.715 7.97 4558
7.4 600 82.14 7.30 4945
9.2 700 102.12 6.85 5287
11.2 800 124.32 6.44 5640
13.7 900 152.07 5.92 5967
16.1 1000 178.71 5.60 6193
23.4 1320 259.74 5.08 6975
APC9060 14.8 0.7 100 10.36 9.65 3288 66℃ 3min
1.6 200 23.68 8.45 4513
2.8 300 41.44 7.24 5393
4 400 59.2 6.76 6125
5.3 500 78.44 6.37 6899
6.8 600 100.64 5.96 7450
8.4 700 124.32 5.63 7940
10.1 800 149.48 5.35 8503
12.1 900 179.08 5.03 8945
14.4 1000 213.12 4.69 9372
19.9 1290 294.52 4.38 10547
APC9045 11.1 1 100 11.1 9.01 3430 63℃ 5min
2.1 200 23.31 8.58 4770
3.3 300 36.63 8.19 5857
4.7 400 52.17 7.67 6750
6.35 500 70.485 7.09 7426
8.1 600 89.91 6.67 8081
10.6 737 117.66 6.26 8836
14.8 0.7 100 10.36 9.65 3446
1.6 200 23.68 8.45 4757
2.7 300 39.96 7.51 5836
3.7 400 54.76 7.30 6639
4.9 500 72.52 6.89 7450
6.3 600 93.24 6.44 8067
7.8 700 115.44 6.06 8600
9.5 800 140.6 5.69 9234
11.2 900 165.76 5.43 9696
13.05 1000 193.14 5.18 10117
16.3 1180 241.24 4.89 10972
APC1047 11.1 0.7 100 7.77 12.87 2664 100℃ 1min25s
1.8 200 19.98 10.01 3654
3 300 33.3 9.01 4328
4.4 400 48.84 8.19 4933
6 500 66.6 7.51 5405
7.55 600 83.805 7.16 5881
9.6 700 106.56 6.57 6300
11.6 800 128.76 6.21 6683
13.75 900 152.625 5.90 6988
16.2 1000 179.82 5.56 7364
18.2 1105 202.02 5.47 7718
14.8 0.6 100 8.88 11.26 2664
1.3 200 19.24 10.40 3598
2.3 300 34.04 8.81 4350
3.4 400 50.32 7.95 4945
4.7 500 69.56 7.19 5501
6 600 88.8 6.76 5853
7.6 700 112.48 6.22 6255
9.05 800 133.94 5.97 6700
10.9 900 161.32 5.58 7026
12.8 1000 189.44 5.28 7403
16.95 1200 250.86 4.78 8003
22.1 1400 327.08 4.28 8625
27.2 1650 402.56 4.10 9247



KV950
Stator Diameter 22mm Rotor Diameter 27.7mm
Stator Thickness 16mm Body Length 34mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 50A
Motor Kv 950 Recommended Prop(inch) APC11*4.7/APC1047/APC9047/APC9045
No-load current 0.7A/10V Weight for aerobatics airplane 850g(4S 9060\1047\1050)
Motor Resistance 73.6mΩ Single weight for multirotors 500g(3S 1038\1047)
Max Continuous Current 32A/30s Single weight for multirotors 550g(4S 8038\8043\8045\9047)
Max Continuous Power 450W Weight for 3D airplane 800g(3S 1147)
Weight 69g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC11*4.7 11.1 0.7 100 7.77 12.87 2123 96℃ 30S
1.6 200 17.76 11.26 3035
2.8 300 31.08 9.65 3652
4.1 400 45.51 8.79 4136
5.8 500 64.38 7.77 4581
7.5 600 83.25 7.21 4866
9.8 700 108.78 6.44 5250
11.3 800 125.43 6.38 5577
13.7 900 152.07 5.92 6035
16.5 1000 183.15 5.46 6268
19.1 1100 212.01 5.19 6475
22.3 1200 247.53 4.85 6877
25.3 1300 280.83 4.63 7139
29 1470 321.9 4.57 7662
APC9060 14.8 0.7 100 10.36 9.65 3155 87℃ 2min
1.6 200 23.68 8.45 4352
2.7 300 39.96 7.51 5296
4.1 400 60.68 6.59 6142
5.4 500 79.92 6.26 6697
6.8 600 100.64 5.96 7355
8.5 700 125.8 5.56 7862
10.3 800 152.44 5.25 8441
12.55 900 185.74 4.85 8854
14.5 1000 214.6 4.66 9267
16.8 1100 248.64 4.42 9774
19.3 1200 285.64 4.20 10131
21.8 1300 322.64 4.03 10588
24.4 1450 361.12 4.02 11091
APC1047 11.1 0.7 100 7.77 12.87 2546 97℃10S
1.8 200 19.98 10.01 3509
3 300 33.3 9.01 4245
4.4 400 48.84 8.19 4781
6.2 500 68.82 7.27 5351
7.8 600 86.58 6.93 5829
9.8 700 108.78 6.44 6142
11.7 800 129.87 6.16 6532
14.1 900 156.51 5.75 6731
16.5 1000 183.15 5.46 7258
19 1100 210.9 5.22 7662
22.8 1282 253.08 5.07 8523
14.8 0.6 100 8.88 11.26 2620
1.3 200 19.24 10.40 3511
2.3 300 34.04 8.81 4328
3.4 400 50.32 7.95 4956
4.6 500 68.08 7.34 5322
6.4 600 94.72 6.33 5847
7.6 700 112.48 6.22 6166
9.3 800 137.64 5.81 6571
11.3 900 167.24 5.38 6742
13.2 1000 195.36 5.12 7263
14.9 1100 220.52 4.99 7680
17.4 1200 257.52 4.66 8004
20.1 1300 297.48 4.37 8344
22.8 1400 337.44 4.15 8671
26.2 1500 387.76 3.87 8876
29.2 1600 432.16 3.70 9100
34.5 1860 510.6 3.64 9790
APC9045 11.1 1 100 11.1 9.01 3422 70℃ 3min
2.1 200 23.31 8.58 4761
3.3 300 36.63 8.19 5766
4.8 400 53.28 7.51 6625
6.4 500 71.04 7.04 7435
8.1 600 89.91 6.67 8052
10.1 700 112.11 6.24 8647
12.9 837 143.19 5.85 9373
14.8 0.7 100 10.36 9.65 3460
1.6 200 23.68 8.45 4711
2.7 300 39.96 7.51 5795
3.8 400 56.24 7.11 6658
5 500 74 6.76 7359
6.35 600 93.98 6.38 8070
8 700 118.4 5.91 8629
9.5 800 140.6 5.69 9144
11.3 900 167.24 5.38 9667
13.2 1000 195.36 5.12 10177
17.3 1200 256.04 4.69 11167
20.2 1350 298.96 4.52 11593



KV1100
Stator Diameter 22mm Rotor Diameter 27.7mm
Stator Thickness 16mm Body Length 34mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 30-40A
Motor Kv 1100 Recommended Prop(inch) APC8060 /APC1047 /APC9047/APC9045
No-load current 0.8A/10V Weight for training airplane 900g(3S 1047\1050)
Motor Resistance 54mΩ Weight for 3D airplane 750g(3S 1050\1047)
Max Continuous Current 34A/30s
Max Continuous Power 480W
Weight 69g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC10*4.7 11.1 0.7 100 7.77 12.87 2563 82℃ 3min
1.7 200 18.87 10.60 3493
3.1 300 34.41 8.72 4246
4.6 400 51.06 7.83 4753
6.5 500 72.15 6.93 5310
7.9 600 87.69 6.84 5817
10 700 111 6.31 6164
12 800 133.2 6.01 6584
14.3 900 158.73 5.67 6896
16.9 1000 187.59 5.33 7320
19.8 1100 219.78 5.01 7630
22.4 1200 248.64 4.83 7943
26.4 1300 293.04 4.44 8249
28.8 1400 319.68 4.38 8907
APC9045 11.1 0.9 100 9.99 10.01 3424 80℃ 3min
2.1 200 23.31 8.58 4761
3.4 300 37.74 7.95 5725
5 400 55.5 7.21 6631
6.5 500 72.15 6.93 7365
8.4 600 93.24 6.44 8049
10.3 700 114.33 6.12 8643
12.7 800 140.97 5.67 9206
14.9 900 165.39 5.44 9610
18.5 1065 205.35 5.19 10463
14.8 0.7 100 10.36 9.65 3365
1.7 200 25.16 7.95 4630
2.6 300 38.48 7.80 5731
3.9 400 57.72 6.93 6589
5 500 74 6.76 7379
6.5 600 96.2 6.24 7956
8.2 700 121.36 5.77 8618
9.9 800 146.52 5.46 9248
11.5 900 170.2 5.29 9591
14 1000 207.2 4.83 10149
15.9 1100 235.32 4.67 10554
18 1200 266.4 4.50 10935
20 1300 296 4.39 11427
22.6 1400 334.48 4.19 11922
27 1500 399.6 3.75 12192
29 1600 429.2 3.73 12833
APC9060 11.1 1 100 11.1 9.01 3151 90℃ 30s
2.2 200 24.42 8.19 4390
3.4 300 37.74 7.95 4301
5.3 400 58.83 6.80 6155
7 500 77.7 6.44 6679
8.6 600 95.46 6.29 7327
10.9 700 120.99 5.79 7869
13.2 800 146.52 5.46 8507
15.6 900 173.16 5.20 8862
18.6 1000 206.46 4.84 9325
21.3 1100 236.43 4.65 9883
14.8 0.8 100 11.84 8.45 3139
1.6 200 23.68 8.45 4396
2.7 300 39.96 7.51 5351
4.1 400 60.68 6.59 6117
5.6 500 82.88 6.03 6728
7.1 600 105.08 5.71 7342
8.5 700 125.8 5.56 7860
10.4 800 153.92 5.20 8535
12.5 900 185 4.86 8830
14.9 1000 220.52 4.53 9279
16.6 1100 245.68 4.48 9765
19.9 1200 294.52 4.07 10181
22.1 1300 327.08 3.97 10518
25.3 1400 374.44 3.74 10923
27.9 1500 412.92 3.63 11237
32.8 1640 485.44 3.38 12033
APC9047 11.1 0.8 100 8.88 11.26 3253 76℃ 3min
2 200 22.2 9.01 4621
3.3 300 36.63 8.19 5608
4.9 400 54.39 7.35 6529
6.3 500 69.93 7.15 7250
8.2 600 91.02 6.59 7966
10.2 700 113.22 6.18 8699
12.1 800 134.31 5.96 9324
14.2 900 157.62 5.71 9970
16.9 1000 187.59 5.33 10551
18.5 1080 205.35 5.26 11120
14.8 0.7 100 10.36 9.65 3176
1.5 200 22.2 9.01 4513
2.6 300 38.48 7.80 5553
3.7 400 54.76 7.30 6517
5.1 500 75.48 6.62 7357
6.4 600 94.72 6.33 8096
8 700 118.4 5.91 8753
9.5 800 140.6 5.69 9355
11.4 900 168.72 5.33 10054
13.3 1000 196.84 5.08 10665
15.35 1100 227.18 4.84 11204
17.5 1200 259 4.63 11708
19.3 1300 285.64 4.55 12237
21.6 1400 319.68 4.38 12837
25.7 1600 380.36 4.21 13315
APC8060 14.8 0.9 100 13.32 7.51 3863 63℃ 10min
2.2 200 32.56 6.14 5408
3.7 300 54.76 5.48 6557
5.2 400 76.96 5.20 7485
7.1 500 105.08 4.76 8268
9 600 133.2 4.50 9014
11.5 700 170.2 4.11 9683
15.15 800 224.22 3.57 10376
17.45 900 258.26 3.48 10948
20.1 1000 297.48 3.36 11453
23.7 1100 350.76 3.14 11970
28 1200 414.4 2.90 13058



KV1250
Stator Diameter 22mm Rotor Diameter 27.7mm
Stator Thickness 16mm Body Length 34mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 40A
Motor Kv 1250 Recommended Prop(inch) APC8060/APC1047/APC9047/APC9045
No-load current 1A/10V Weight for aerobatics airplane 850g(3S 9060\9047\9045)(4S 8060)
Motor Resistance 45mΩ Weight for 3D airplane 800g(3S 9047\1047)
Max Continuous Current 40A/30s
Max Continuous Power 600W
Weight 69g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC10*4.7 11.1 0.8 100 8.88 11.26 2570 87℃ 1min40s
1.8 200 19.98 10.01 3568
3.1 300 34.41 8.72 4230
4.8 400 53.28 7.51 4842
6.5 500 72.15 6.93 5364
8.5 600 94.35 6.36 5781
10.9 700 120.99 5.79 6251
13 800 144.3 5.54 6616
15.8 900 175.38 5.13 6962
18.5 1000 205.35 4.87 7227
21.8 1100 241.98 4.55 7629
24.8 1200 275.28 4.36 7924
27.6 1300 306.36 4.24 8244
32.3 1400 358.53 3.90 8542
36.3 1500 402.93 3.72 8789
42.7 1750 473.97 3.69 9332
APC9060 11.1 1 100 11.1 9.01 3115 60℃ 10min
2.3 200 25.53 7.83 4358
4 300 44.4 6.76 5238
5.5 400 61.05 6.55 5991
7.2 500 79.92 6.26 6778
9.2 600 102.12 5.88 7305
11.7 700 129.87 5.39 7876
14.1 800 156.51 5.11 8360
17.6 900 195.36 4.61 8877
19.9 1000 220.89 4.53 9377
23.6 1100 261.96 4.20 9845
26.4 1200 293.04 4.10 10250
29.5 1333 327.45 4.07 10589
APC9045 11.1 1 100 11.1 9.01 3365 63℃ 10min
2.2 200 24.42 8.19 4732
3.7 300 41.07 7.30 5730
5.3 400 58.83 6.80 6539
6.9 500 76.59 6.53 7371
8.8 600 97.68 6.14 7983
11 700 122.1 5.73 8544
13.1 800 145.41 5.50 9094
15.6 900 173.16 5.20 9613
18.25 1000 202.575 4.94 10134
20.9 1100 231.99 4.74 10655
25 1264 277.5 4.55 11186
APC9047 11.1 0.9 100 9.99 10.01 3240 52℃ 10min
2.1 200 23.31 8.58 4596
3.6 300 39.96 7.51 5603
5.3 400 58.83 6.80 6431
6.7 500 74.37 6.72 7226
8.4 600 93.24 6.44 7916
10.5 700 116.55 6.01 8532
13 800 144.3 5.54 9259
15.6 900 173.16 5.20 9791
17.8 1000 197.58 5.06 10352
20.4 1100 226.44 4.86 10982
24.2 1269 268.62 4.72 11395
APC8060 11.1 1.4 100 15.54 6.44 3811 76℃ 10min10s
3.1 200 34.41 5.81 5370
5 300 55.5 5.41 6548
7.05 400 78.255 5.11 7532
9.2 500 102.12 4.90 8319
11.5 600 127.65 4.70 9151
14.3 700 158.73 4.41 9723
17.7 800 196.47 4.07 10511
24.3 966 269.73 3.58 11303
14.8 1 100 14.8 6.76 3854
2.4 200 35.52 5.63 5420
3.9 300 57.72 5.20 6498
5.5 400 81.4 4.91 7527
7.4 500 109.52 4.57 8352
9.45 600 139.86 4.29 9123
11.7 700 173.16 4.04 9890
14.1 800 208.68 3.83 10536
17 900 251.6 3.58 11011
20.6 1000 304.88 3.28 11640
24.6 1100 364.08 3.02 12107
28 1200 414.4 2.90 12705
36.2 1371 535.76 2.56 13576



KV1400
 Stator Diameter 22mm Rotor Diameter 27.7mm
Stator Thickness 16mm Body Length 34mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 40-50A
Motor Kv 1400 Recommended Prop(inch) APC8060/APC9047/APC9045
No-load current 1.2A/10V Weight for aerobatics airplane 850g(3S 9060\9047\9045) (4S 8060)
Motor Resistance 32.2mΩ Weight for 3D airplane 750g(3S 9047)
Max Continuous Current 50A/30s
Max Continuous Power 740W
Weight 71g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC9047 11.1 0.9 100 9.99 10.01 3203 62℃ 10min
2.1 200 23.31 8.58 4615
3.6 300 39.96 7.51 5711
5.4 400 59.94 6.67 6656
7 500 77.7 6.44 7405
9 600 99.9 6.01 8071
11.1 700 123.21 5.68 8840
13.5 800 149.85 5.34 9490
16.3 900 180.93 4.97 10165
18.4 1000 204.24 4.90 10769
21.4 1100 237.54 4.63 11264
23.9 1200 265.29 4.52 11820
27.8 1300 308.58 4.21 12337
31.4 1496 348.54 4.29 12847
APC9060 11.1 0.9 100 9.99 10.01 3152 64℃ 10min
2.3 200 25.53 7.83 4325
3.8 300 42.18 7.11 5229
5.7 400 63.27 6.32 6109
7.8 500 86.58 5.78 6795
10.1 600 112.11 5.35 7308
12.3 700 136.53 5.13 7940
15.2 800 168.72 4.74 8582
18.3 900 203.13 4.43 8934
21.4 1000 237.54 4.21 9334
24.9 1100 276.39 3.98 9810
28.7 1200 318.57 3.77 10178
32.1 1300 356.31 3.65 10655
36.8 1400 408.48 3.43 10952
41 1545 455.1 3.39 11670
APC9045 11.1 1 100 11.1 9.01 3334 54℃ 10min
2.2 200 24.42 8.19 4759
3.8 300 42.18 7.11 5779
5.5 400 61.05 6.55 6623
7.2 500 79.92 6.26 7414
9.2 600 102.12 5.88 7964
11.6 700 128.76 5.44 8694
13.8 800 153.18 5.22 9193
16.55 900 183.705 4.90 9712
19.2 1000 213.12 4.69 10137
21.9 1100 243.09 4.53 10533
25.5 1200 283.05 4.24 11109
29 1300 321.9 4.04 11416
34.7 1510 385.17 3.92 12407
APC7060 14.8 1.3 100 19.24 5.20 4984 61℃ 10min
2.9 200 42.92 4.66 7021
4.8 300 71.04 4.22 8535
7 400 103.6 3.86 9657
9.2 500 136.16 3.67 10800
12 600 177.6 3.38 11870
15.1 700 223.48 3.13 12760
18.4 800 272.32 2.94 13542
22 900 325.6 2.76 14384
26.5 1000 392.2 2.55 15091
31.2 1100 461.76 2.38 15856
37.6 1296 556.48 2.33 16818
APC8060 11.1 1.1 100 12.21 8.19 3800 83℃ 40S
3.2 200 35.52 5.63 5342
5.2 300 57.72 5.20 6528
7.3 400 81.03 4.94 7511
9.7 500 107.67 4.64 8236
12.5 600 138.75 4.32 9105
15.9 700 176.49 3.97 9635
19.6 800 217.56 3.68 10385
23.3 900 258.63 3.48 10920
27.5 1000 305.25 3.28 11538
33.7 1150 374.07 3.07 12465
14.8 1 100 14.8 6.76 3836
2.4 200 35.52 5.63 5380
3.9 300 57.72 5.20 6592
5.5 400 81.4 4.91 7524
7.8 500 115.44 4.33 8245
9.8 600 145.04 4.14 8963
12.3 700 182.04 3.85 9716
15 800 222 3.60 10338
17.9 900 264.92 3.40 11015
21.5 1000 318.2 3.14 11520
25.2 1100 372.96 2.95 12141
28.9 1200 427.72 2.81 12533
34.1 1300 504.68 2.58 13158
39.5 1400 584.6 2.39 13649
51.4 1660 760.72 2.18 14825



[/TABS]

You may also like

Recently viewed
