Description

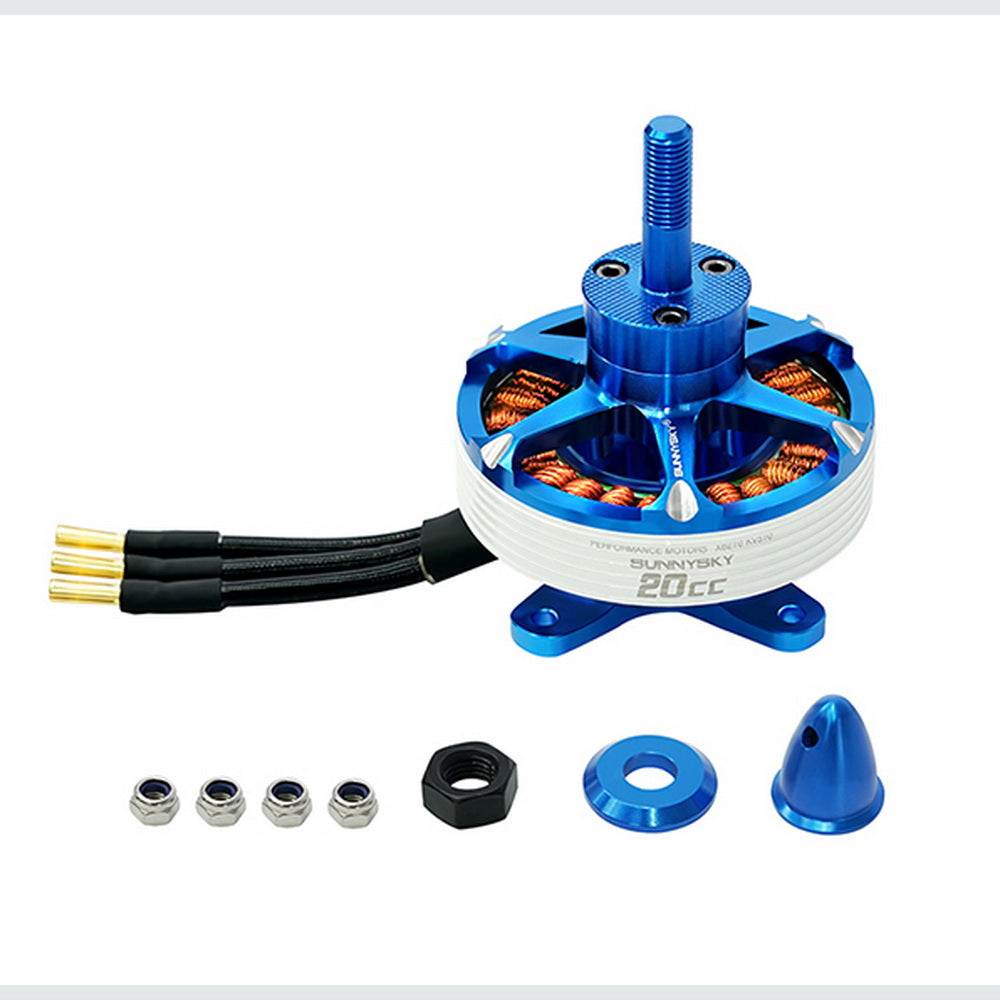

[TABS]SunnySky X Series V3 X6210 20CC Equivalent Motors
| Motor Model / KV | X6210-III/ KV510 | X6215-III/ KV420 |
|---|---|---|
| Stator/Rotor Poles | 24N28P | 12N14P |
| Internal resistance | 10mΩ | 8.3mΩ |
| Motor size | Motor length：111.5mm | Motor length：111.5mm |
| Shaft diameter | 3.175mm | 3.175mm |
| AWG | 20AWG 100mm | 20AWG 100mm |
| Motor weight(wire included) | 329.8g | 444.7g |
| Motor weight(wire excluded) | No data | No data |
| Rated operational voltage | 6S | 3-4S |
| No-load current | 10V/2.5A | 10V/2.9A |
| Maximum continuous power | 2112w | 2594w |
| Maximum continuous current | 88A/30s | 115A/30s |
| ESC recommended use | 120A | 120-150A |
| Propeller size recommended use | EOLO15*8 16*8 | APC18*8 DFDL18*10 EOLO19*9 |
|
Propeller (inch) |
Throttle point |
Voltage(V) |
Amps(A) |
Input power (W) |
Speed (rpm) |
Torque (N.m ） |
Output power (W) |
Thrust (g) |
Efficiency (g/W) |
Load temperature in 100% throttle |
|
EOLO 15*8 |
30 |
22.08 |
2.16 |
47.69 |
2650.14 |
-0.1 |
27.75 |
402.4 |
8.43 |
|
|
40 |
22.01 |
5.365 |
118.08 |
3847.54 |
-0.19 |
76.54 |
944.03 |
7.99 |
||
|
50 |
21.88 |
10.787 |
236.01 |
5022.07 |
-0.32 |
168.27 |
1669.88 |
7.07 |
||
|
52 |
21.86 |
12.048 |
263.36 |
5225.68 |
-0.34 |
186.04 |
1814.5 |
6.88 |
||
|
54 |
21.81 |
13.303 |
290.13 |
5404.71 |
-0.37 |
209.39 |
1952.72 |
6.73 |
||
|
56 |
21.73 |
14.784 |
321.25 |
5606.01 |
-0.4 |
234.8 |
2123.74 |
6.61 |
||
|
58 |
21.73 |
16.507 |
358.69 |
5820.62 |
-0.43 |
262.08 |
2277.56 |
6.34 |
||
|
60 |
21.68 |
18.063 |
391.6 |
6006.17 |
-0.45 |
283.01 |
2427.62 |
6.19 |
||
|
62 |
21.66 |
19.799 |
428.84 |
6180.06 |
-0.49 |
317.09 |
2628.47 |
6.12 |
||
|
64 |
21.61 |
22.102 |
477.62 |
6371.16 |
-0.54 |
360.25 |
2840.71 |
5.94 |
||
|
66 |
21.56 |
23.768 |
512.43 |
6527.99 |
-0.57 |
389.62 |
2970.18 |
5.79 |
||
|
68 |
21.52 |
25.741 |
553.94 |
6721.36 |
-0.6 |
422.28 |
3148.99 |
5.68 |
||
|
70 |
21.47 |
28.059 |
602.42 |
6888.34 |
-0.65 |
468.83 |
3343.55 |
5.55 |
||
|
72 |
21.42 |
30.578 |
654.98 |
7073.72 |
-0.68 |
503.67 |
3559.52 |
5.43 |
||
|
74 |
21.38 |
33.171 |
709.19 |
7235.78 |
-0.73 |
553.1 |
3748.37 |
5.28 |
||
|
76 |
21.31 |
34.833 |
742.29 |
7403.88 |
-0.74 |
573.7 |
3823.29 |
5.15 |
||
|
78 |
21.25 |
38.012 |
807.75 |
7586.93 |
-0.79 |
627.6 |
4072.99 |
5.04 |
||
|
80 |
21.17 |
41.138 |
870.89 |
7734.57 |
-0.83 |
672.21 |
4306.39 |
4.94 |
||
|
82 |
21.11 |
43.601 |
920.41 |
7902.23 |
-0.86 |
711.61 |
4465.2 |
4.85 |
||
|
84 |
21.02 |
46.282 |
972.84 |
8060.34 |
-0.88 |
742.73 |
4652.73 |
4.78 |
||
|
86 |
20.92 |
49.412 |
1033.69 |
8232.64 |
-0.92 |
793.09 |
4859.61 |
4.7 |
||
|
88 |
20.86 |
54.05 |
1127.48 |
8378.83 |
-0.99 |
868.59 |
5122.98 |
4.54 |
||
|
90 |
20.73 |
56.991 |
1181.42 |
8503.46 |
-1.01 |
899.31 |
5321.21 |
4.5 |
||
|
100 |
20.54 |
67.296 |
1382.25 |
8885.73 |
-1.15 |
1070 |
5833 |
4.21 |
||
|
|
||||||||||
|
30 |
24 |
2.415 |
57.96 |
2841.67 |
-0.12 |
35.7 |
488.34 |
8.42 |
||
|
40 |
23.91 |
6.118 |
146.28 |
4171.47 |
-0.23 |
100.46 |
1130.23 |
7.72 |
||
|
50 |
23.76 |
12.155 |
288.8 |
5354.84 |
-0.38 |
213.07 |
1937.12 |
6.7 |
||
|
52 |
23.74 |
13.579 |
322.36 |
5564.7 |
-0.41 |
238.9 |
2105.39 |
6.53 |
||
|
54 |
23.68 |
15.217 |
360.33 |
5792.81 |
-0.44 |
266.89 |
2280.64 |
6.32 |
||
|
56 |
23.66 |
16.782 |
397.06 |
6004 |
-0.47 |
295.48 |
2454.11 |
6.18 |
||
|
58 |
23.63 |
18.691 |
441.66 |
6225.11 |
-0.51 |
332.44 |
2653.22 |
6 |
||
|
60 |
23.57 |
20.707 |
488.06 |
6421.61 |
-0.54 |
363.1 |
2839.12 |
5.81 |
||
|
62 |
23.53 |
23.043 |
542.2 |
6613.18 |
-0.59 |
408.56 |
3073.94 |
5.66 |
||
|
64 |
23.47 |
24.768 |
581.3 |
6796.55 |
-0.61 |
434.12 |
3219 |
5.53 |
||
|
66 |
23.42 |
27.024 |
632.9 |
6992.47 |
-0.65 |
475.92 |
3395.2 |
5.36 |
||
|
68 |
23.37 |
28.695 |
670.6 |
7177.86 |
-0.67 |
503.57 |
3526.97 |
5.25 |
||
|
70 |
23.3 |
31.331 |
730.01 |
7364.3 |
-0.72 |
555.21 |
3804.27 |
5.21 |
||
|
72 |
23.27 |
33.657 |
783.19 |
7549.34 |
-0.76 |
600.78 |
3897.51 |
4.97 |
||
|
74 |
23.18 |
36.659 |
849.75 |
7727.02 |
-0.8 |
647.28 |
4171.81 |
4.9 |
||
|
76 |
23.14 |
40.002 |
925.64 |
7898.47 |
-0.87 |
719.54 |
4425.72 |
4.78 |
||
|
78 |
23.06 |
42.921 |
989.75 |
8058.12 |
-0.9 |
759.4 |
4646.08 |
4.69 |
||
|
80 |
22.98 |
45.582 |
1047.47 |
8239.2 |
-0.93 |
802.35 |
4791.81 |
4.57 |
||
|
82 |
22.92 |
49.675 |
1138.55 |
8420.83 |
-0.99 |
872.94 |
5022.06 |
4.41 |
||
|
84 |
22.81 |
54.347 |
1239.65 |
8533.95 |
-1.08 |
965.09 |
5381.42 |
4.34 |
||
|
86 |
22.76 |
57.177 |
1301.34 |
8681.12 |
-1.1 |
999.91 |
5467.91 |
4.2 |
||
|
88 |
22.62 |
60.641 |
1371.69 |
8856.65 |
-1.13 |
1047.95 |
5713.34 |
4.16 |
||
|
90 |
22.53 |
64.565 |
1454.64 |
8998.95 |
-1.18 |
1111.91 |
5870.31 |
4.03 |
||
|
100 |
22.25 |
76.937 |
1711.84 |
9377.07 |
-1.32 |
1296.09 |
6524.64 |
3.81 |
10min 97℃ |
|
|
EOLO 16*8 |
|
|
||||||||
|
30 |
24 |
2.415 |
57.96 |
2841.67 |
-0.12 |
35.7 |
488.34 |
8.42 |
||
|
40 |
23.91 |
6.118 |
146.28 |
4171.47 |
-0.23 |
100.46 |
1130.23 |
7.72 |
||
|
50 |
23.76 |
12.155 |
288.8 |
5354.84 |
-0.38 |
213.07 |
1937.12 |
6.7 |
||
|
52 |
23.74 |
13.579 |
322.36 |
5564.7 |
-0.41 |
238.9 |
2105.39 |
6.53 |
||
|
54 |
23.68 |
15.217 |
360.33 |
5792.81 |
-0.44 |
266.89 |
2280.64 |
6.32 |
||
|
56 |
23.66 |
16.782 |
397.06 |
6004 |
-0.47 |
295.48 |
2454.11 |
6.18 |
||
|
58 |
23.63 |
18.691 |
441.66 |
6225.11 |
-0.51 |
332.44 |
2653.22 |
6 |
||
|
60 |
23.57 |
20.707 |
488.06 |
6421.61 |
-0.54 |
363.1 |
2839.12 |
5.81 |
||
|
62 |
23.53 |
23.043 |
542.2 |
6613.18 |
-0.59 |
408.56 |
3073.94 |
5.66 |
||
|
64 |
23.47 |
24.768 |
581.3 |
6796.55 |
-0.61 |
434.12 |
3219 |
5.53 |
||
|
66 |
23.42 |
27.024 |
632.9 |
6992.47 |
-0.65 |
475.92 |
3395.2 |
5.36 |
||
|
68 |
23.37 |
28.695 |
670.6 |
7177.86 |
-0.67 |
503.57 |
3526.97 |
5.25 |
||
|
70 |
23.3 |
31.331 |
730.01 |
7364.3 |
-0.72 |
555.21 |
3804.27 |
5.21 |
||
|
72 |
23.27 |
33.657 |
783.19 |
7549.34 |
-0.76 |
600.78 |
3897.51 |
4.97 |
||
|
74 |
23.18 |
36.659 |
849.75 |
7727.02 |
-0.8 |
647.28 |
4171.81 |
4.9 |
||
|
76 |
23.14 |
40.002 |
925.64 |
7898.47 |
-0.87 |
719.54 |
4425.72 |
4.78 |
||
|
78 |
23.06 |
42.921 |
989.75 |
8058.12 |
-0.9 |
759.4 |
4646.08 |
4.69 |
||
|
80 |
22.98 |
45.582 |
1047.47 |
8239.2 |
-0.93 |
802.35 |
4791.81 |
4.57 |
||
|
82 |
22.92 |
49.675 |
1138.55 |
8420.83 |
-0.99 |
872.94 |
5022.06 |
4.41 |
||
|
84 |
22.81 |
54.347 |
1239.65 |
8533.95 |
-1.08 |
965.09 |
5381.42 |
4.34 |
||
|
86 |
22.76 |
57.177 |
1301.34 |
8681.12 |
-1.1 |
999.91 |
5467.91 |
4.2 |
||
|
88 |
22.62 |
60.641 |
1371.69 |
8856.65 |
-1.13 |
1047.95 |
5713.34 |
4.16 |
||
|
90 |
22.53 |
64.565 |
1454.64 |
8998.95 |
-1.18 |
1111.91 |
5870.31 |
4.03 |
||
|
100 |
22.25 |
76.937 |
1711.84 |
9377.07 |
-1.32 |
1296.09 |
6524.64 |
3.81 |
||
|
|
||||||||||
|
30 |
22.11 |
2.366 |
52.31 |
2616.45 |
-0.13 |
35.61 |
533.52 |
10.19 |
||
|
40 |
22.03 |
6.105 |
134.49 |
3763.09 |
-0.25 |
98.51 |
1167.76 |
8.68 |
||
|
50 |
21.86 |
12.297 |
268.81 |
4883.14 |
-0.39 |
199.41 |
1976.81 |
7.35 |
||
|
52 |
21.82 |
14.386 |
313.9 |
5086.47 |
-0.44 |
234.35 |
2256.43 |
7.18 |
||
|
54 |
21.78 |
15.851 |
345.23 |
5272.36 |
-0.47 |
259.47 |
2404.16 |
6.96 |
||
|
56 |
21.75 |
17.51 |
380.84 |
5457.83 |
-0.5 |
285.75 |
2552.52 |
6.7 |
||
|
58 |
21.7 |
19.458 |
422.23 |
5655.47 |
-0.54 |
319.78 |
2751.78 |
6.51 |
||
|
60 |
21.66 |
21.685 |
469.69 |
5842.3 |
-0.58 |
354.82 |
2951.85 |
6.28 |
||
|
62 |
21.6 |
23.605 |
509.86 |
6013.64 |
-0.62 |
390.41 |
3128.7 |
6.13 |
||
|
64 |
21.55 |
25.656 |
552.88 |
6174.93 |
-0.65 |
420.28 |
3310.29 |
5.98 |
||
|
66 |
21.5 |
27.841 |
598.58 |
6360.7 |
-0.68 |
452.9 |
3498.5 |
5.84 |
||
|
68 |
21.45 |
30.243 |
648.71 |
6513.64 |
-0.73 |
497.9 |
3709.36 |
5.71 |
||
|
70 |
21.4 |
32.606 |
697.76 |
6681.76 |
-0.77 |
538.73 |
3858.71 |
5.53 |
||
|
72 |
21.33 |
35.187 |
750.53 |
6845.62 |
-0.8 |
573.45 |
4105.61 |
5.47 |
||
|
74 |
21.27 |
38.315 |
814.96 |
7009.79 |
-0.85 |
623.9 |
4329.4 |
5.31 |
||
|
76 |
21.2 |
41.164 |
872.67 |
7153.78 |
-0.9 |
674.17 |
4523.47 |
5.18 |
||
|
78 |
21.12 |
43.947 |
928.16 |
7312.28 |
-0.93 |
712.08 |
4673.7 |
5.03 |
||
|
80 |
21.01 |
47.948 |
1007.38 |
7445.42 |
-0.98 |
764.03 |
5051.57 |
5.01 |
||
|
82 |
20.95 |
51.234 |
1073.35 |
7606.3 |
-1.02 |
812.4 |
5181.53 |
4.82 |
||
|
84 |
20.85 |
54.721 |
1140.93 |
7748.25 |
-1.07 |
868.12 |
5373.98 |
4.71 |
||
|
86 |
20.75 |
58.085 |
1205.26 |
7877.09 |
-1.11 |
915.55 |
5586.09 |
4.63 |
||
|
88 |
20.65 |
62.032 |
1280.96 |
8017.69 |
-1.14 |
957.08 |
5812.26 |
4.53 |
||
|
90 |
20.54 |
65.827 |
1352.08 |
8134.52 |
-1.2 |
1022.13 |
5997.09 |
4.43 |
||
|
100 |
20.29 |
78.014 |
1582.9 |
8510.78 |
-1.33 |
1185.27 |
6703.95 |
4.23 |
10min 110℃ |
|
