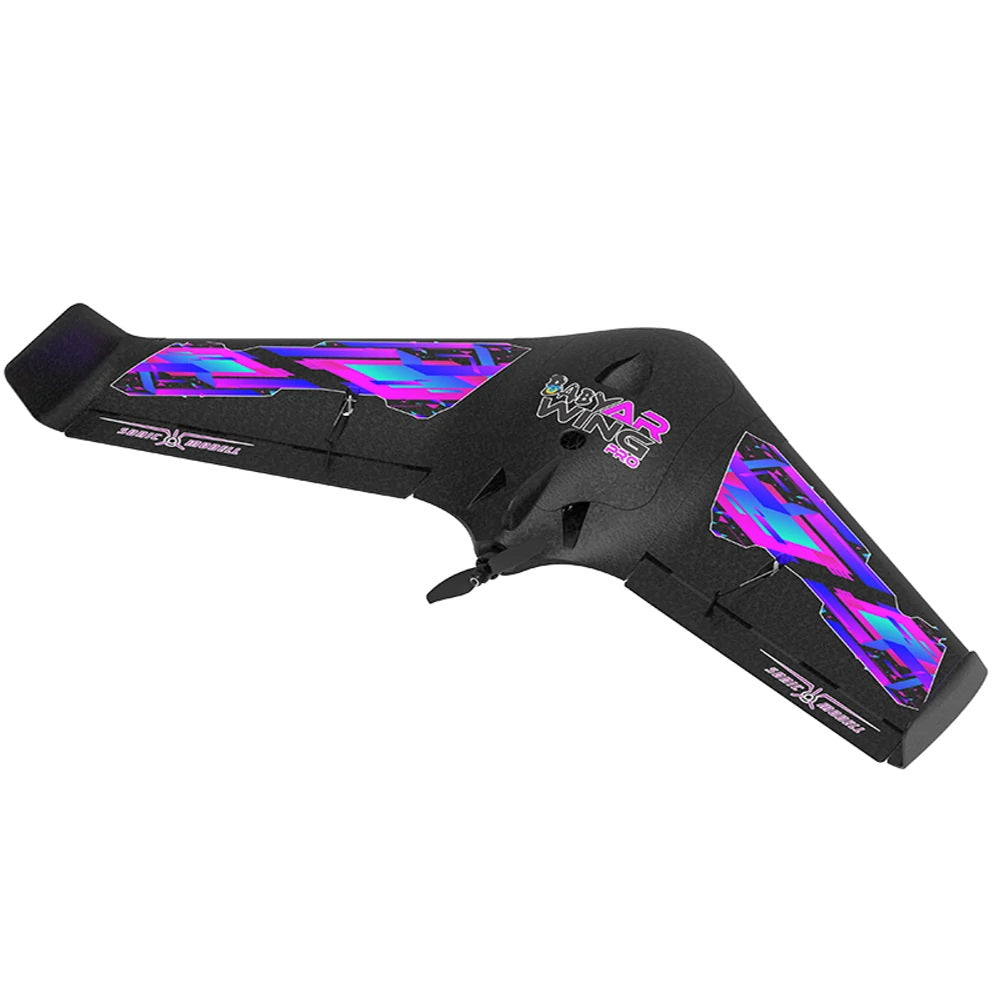

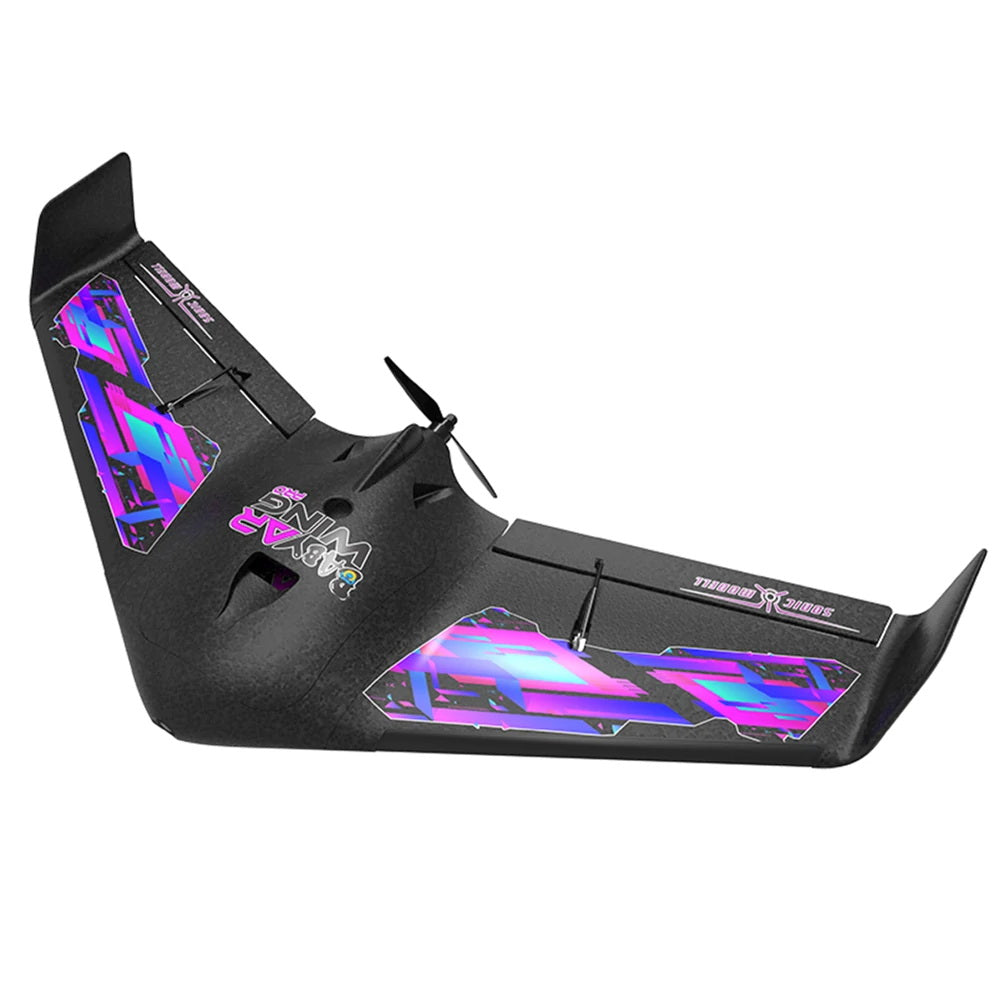

Sonic Modell Baby AR Wing Pro 682mm Wingspan EPP FPV Flying Wing RC Airplane PNP

The Baby AR Wing PRO features a detachable main wing, allowing for easy assembly without the need for glue. This feature enhances its portability for outdoor flying. The wing also houses a spacious battery bay, accommodating a Lipo 3S up to 2200mAh or a 3S 18650 pack (flat type) for extended flight time. Additionally, it offers a nose camera bay compatible with various HD cameras available in the market.

A standout feature of the Baby AR Wing PRO is its aerodynamic design, which includes an FPV bay on both sides of the wing and a highly efficient NACA air cooling system, ensuring optimal performance of the FPV gear. Its unique "FlexiLock" hinges design provides smooth and friction-free movement to the control surfaces.

Designed for agility and responsiveness, the Baby AR Wing PRO incorporates a high-accuracy ball link control system and built-in CF rod in the ailerons for precise and sharp control. The "AeroGuard" servo built-in structure protects the servo and arm from impact, while the molded "CG" bump beneath the wing allows for better center of gravity adjustment.

With a maximum speed of 100km/h (with SONICMODELL power combo) and a recommended maximum take-off weight of 470 grams (with SONICMODELL power combo), the Baby AR Wing PRO is an impressive flying machine suitable for various flying styles and environments. Its compact size delivers excellent performance in a portable package.

Specifications:

• Brand Name: Sonicmodell
• Product Name: Baby AR Wing Pro
• Versions: KIT, PNP (optional)
• Material: High-Quality EPP
• Wingspan: 682mm (26.85")
• Length: 320mm (12.59")
• Motor: 1406-3800KV
• ESC: 30A with 5V 2A BEC
• Servos: 2pcs 4.3g
• Propeller: 4x2.5
• Recommended Battery: Lipo 3S up to 2200mAh or 3S 18650 pack (flat type)

Recommended Flying Capability:

• Minimum recommended speed: 31km/h (depends on AUW)
• Maximum speed (with SONICMODELL power combo): 100km/h
• Cruise speed (with SONICMODELL power combo): 40km/h
• Maximum recommended take-off weight (with SONICMODELL power combo): 470 grams
• Refex-on-elevons: 1-1.5mm at level
• Recommended max. throws: 9mm

Note: The above values are approximate and serve as reference only. Actual figures may vary based on the pilot's skills, FPV equipment, and flying environment.

Key Features:

1. The Baby AR Wing PRO, a high-performance aircraft and sibling of the AR Wing PRO, offers portability and is perfect for outdoor flying.
2. Its aerodynamic design features an FPV bay on both sides of the wing, supported by a highly efficient NACA air cooling system.
3. The detachable main wing enables glue-free assembly and convenient transportation.
4. The high-accuracy ball link control system ensures quick and agile response during control.
5. Built-in CF rods in the ailerons provide precise and sharp control action.
6. The "AeroGuard" servo built-in structure safeguards against impacts.
7. The "FlexiLock" hinges enable natural and friction-free movement of control surfaces.
8. The aircraft is constructed from durable EPP material with a pre-built CF spar for enhanced stability and crash resistance.
9. The nose camera bay is compatible with various HD cameras available in the market.
10. The large battery bay allows for extended flight time and accommodates various Flight Controllers.
11. The molded "CG" bump beneath the wing enables improved center of gravity adjustment.
12. The optimized air-cooling design prevents overheating of onboard gear.

In conclusion, the Baby AR Wing PRO is a high-performance aircraft that combines portability, durability, and outdoor flying capabilities. With its impressive features and specifications, it guarantees an exhilarating flying experience for pilots of all skill levels.

KIT Includes:

• SONICMODELL Baby AR Wing Pro KIT with all hardware.
• KIT package size: 35*20*12.5cm
• KIT package weight: 440g
• Note: Motor, ESC, Servo, Propeller, Transmitter, Receiver, Battery, Charger and Glue are not included.

Note: Motor, ESC, Servo, Propeller, Transmitter, Receiver, Battery, Charger, and Glue are not included.

PNP Includes:

• SONICMODELL Baby AR Wing Pro KIT with power combo (motor, ESC, servos, propeller, and hardware.)
• PNP package size: 35*20*12.5cm
• PNP package weight: 480g
• Note: Transmitter, Receiver, Battery, Charger and Glue are not included.
