Description

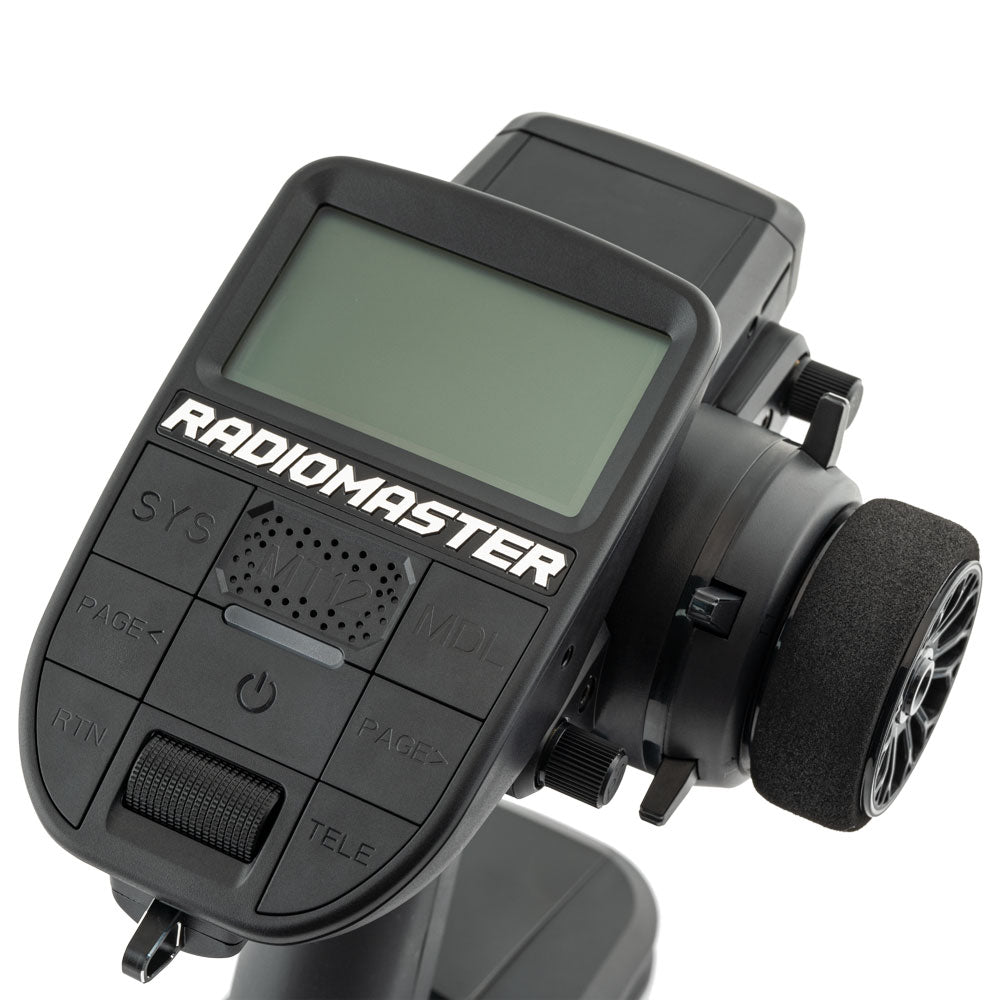

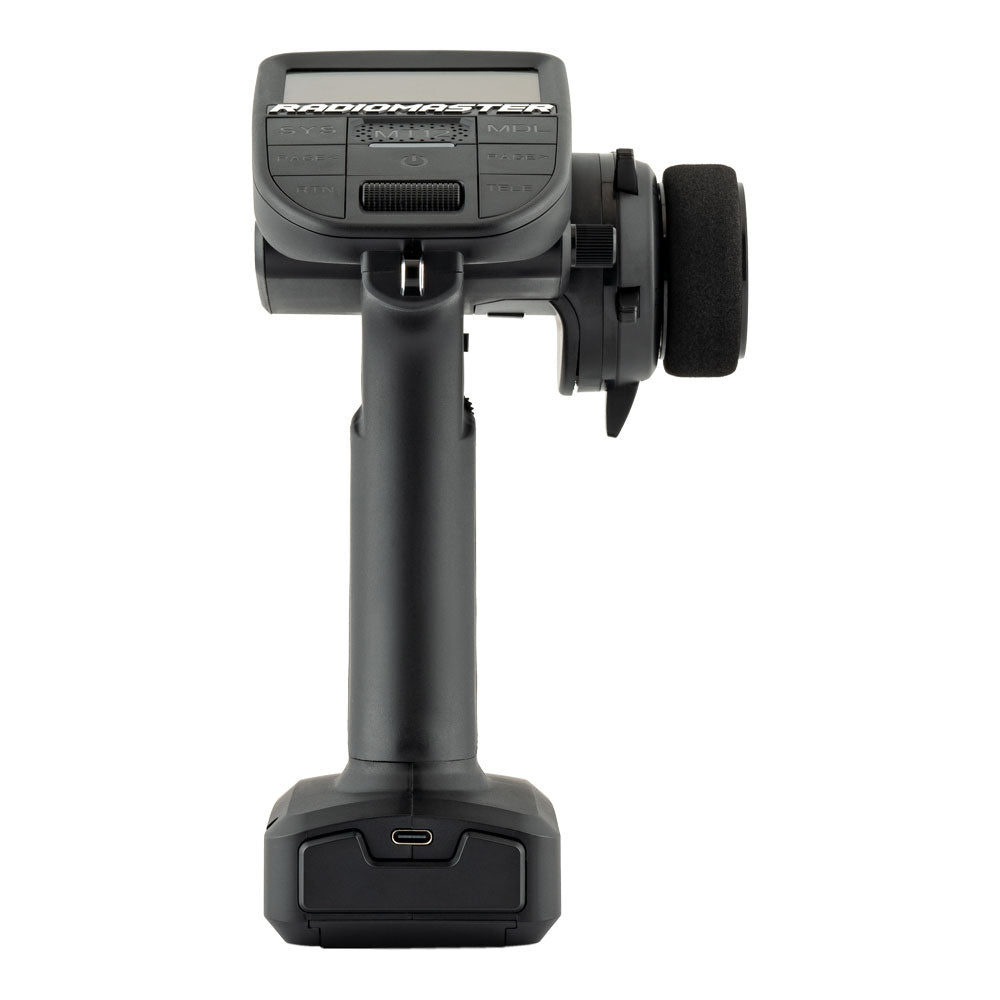

The RadioMaster MT12 represents a groundbreaking open-source surface radio, and it holds the distinction of being the first surface radio to receive official support from EdgeTX, ExpressLRS, and the Multi-module project. With its impressive 10 physical inputs and the ability to accommodate either 16 or 32 channels*, the MT12 is perfectly suited for a diverse range of surface models, spanning from automobiles and trucks to watercraft and more. With its extensive customization options and adaptable operating system, the MT12 distinguishes itself as an exceptionally configurable surface radio, ready to perform exceptionally in a wide range of situations.
Features
- Available with built-in ExpressLRS or 4in1 MPM RF modules
- Featuring a powerful STM32F407VGT6 with 1MB Flash
- Preinstalled EdgeTX firmware
- QC3.0 fast charging supporting 2.0A MAX
- Compact design with excellent ergonomics
- Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
- Standard Nano module compartment
- RadioMaster standardized button layout
- Rotatable antenna

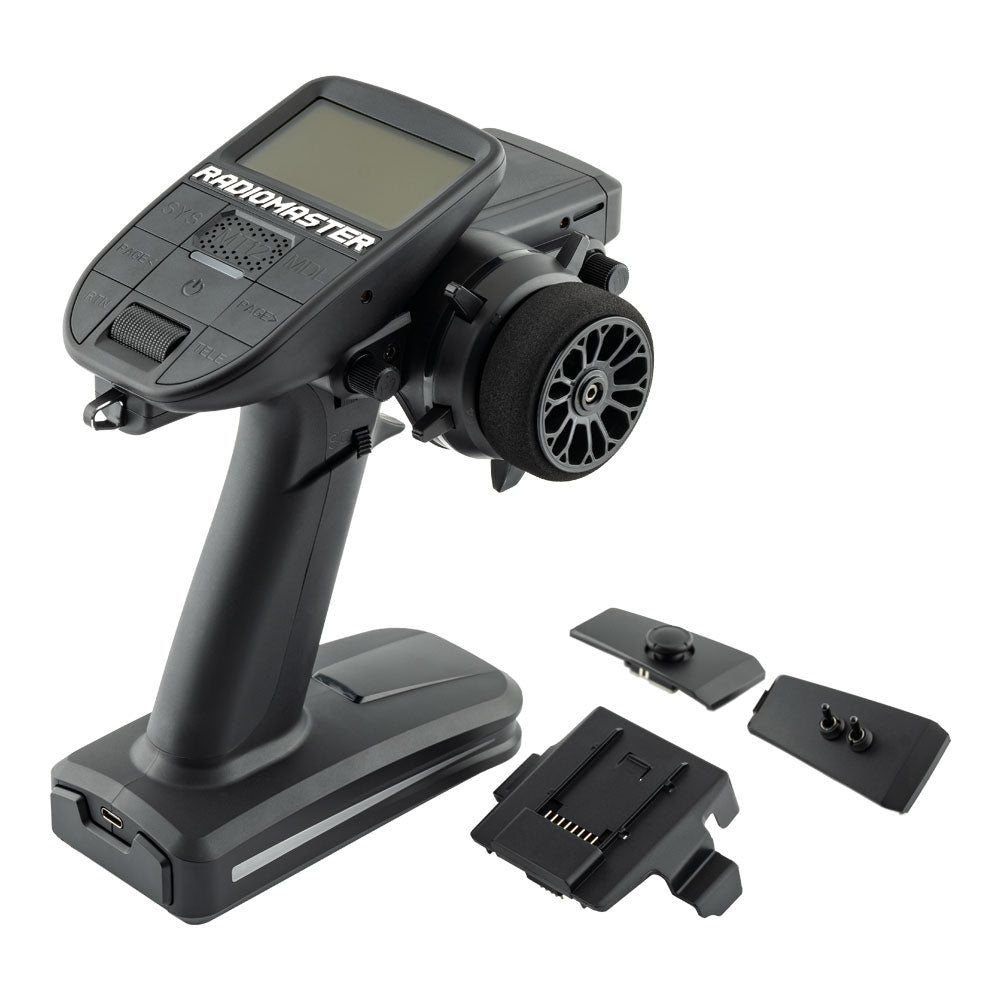

- Customizable base switches or 4 way joystick included
Specification MT12
- Item: MT12 Surface Radio
- Physical dimensions: 177.8*118.4*207.8mm
- Weight: 480 grams
- Operating frequency: 2.400GHz-2.480GHz
- Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz
- Supported protocols: Module dependent
- Operational current: 160mA for 4in1 / 320mA for ELRS
- Operational voltage: DC 6.6-8.4V
- Operating system: EdgeTX
- Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)
- Display: 128*64 Monochrome LCD
- Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
- Charging: Built in USB-C Charging
- Firmware Upgrade method: Via USB or SD card
- Wheel and Trigger sensor: Hall-effect
- Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)
*32 channels requires a 4in1 radio and additional 4in1 RF module along with compatible receivers
Specification ER3C-i (Included with ExpressLRS version)
- Item: ER3C-i 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5 - 8.4V
- Antenna type: Built-in high-sensitivity ceramic antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 3CH PWM
- Telemetry power: 10mW
- Battery voltage detection range: DC 4.0 - 35V
- Weight: 4.2 grams
- Dimensions: 26.1*18.5*13.0 mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i
Specification R85C (Included with 4in1 version)
- Item: R85C Receiver
- Power supply: DC 4.5 - 8.4V
- Frequency range: 2400-2483.5Mhz
- Support protocol: D8/D16/SFHSS
- Output channel: 5CH PWM
- Antenna type: high-sensitivity 2.4G antenna
- Telemetry power: 100mw / 20dbm
- Weight: 5.7 grams
- Dimensions: 31.0*18.5*13.0 mm
EdgeTX Operating System
Preinstalled with EdgeTX, the MT12 has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX team to develop new features and optimize the user experience for surface models. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.
Available with ExpressLRS and 4in1 Version
In addition to the popular internal 4-in-1 Multi-module, the MT12 is also available with an internal 2.4GHz ExpressLRS (ELRS) module. Designed to provide reliable long-distance control, super low latency, and high refresh rates. ELRS is a revolutionary open-source protocol taking the R/C industry by storm.
ExpressLRS VERSION
ExpressLRS supports ultra-fast response modes for seat of your pants racing or super long range modes for pushing the limits of your adventures.
4in1 VERSION
One remote control all of your cars. The 4in1 internal RF system has protocols, for many popular brands of cars and receivers.

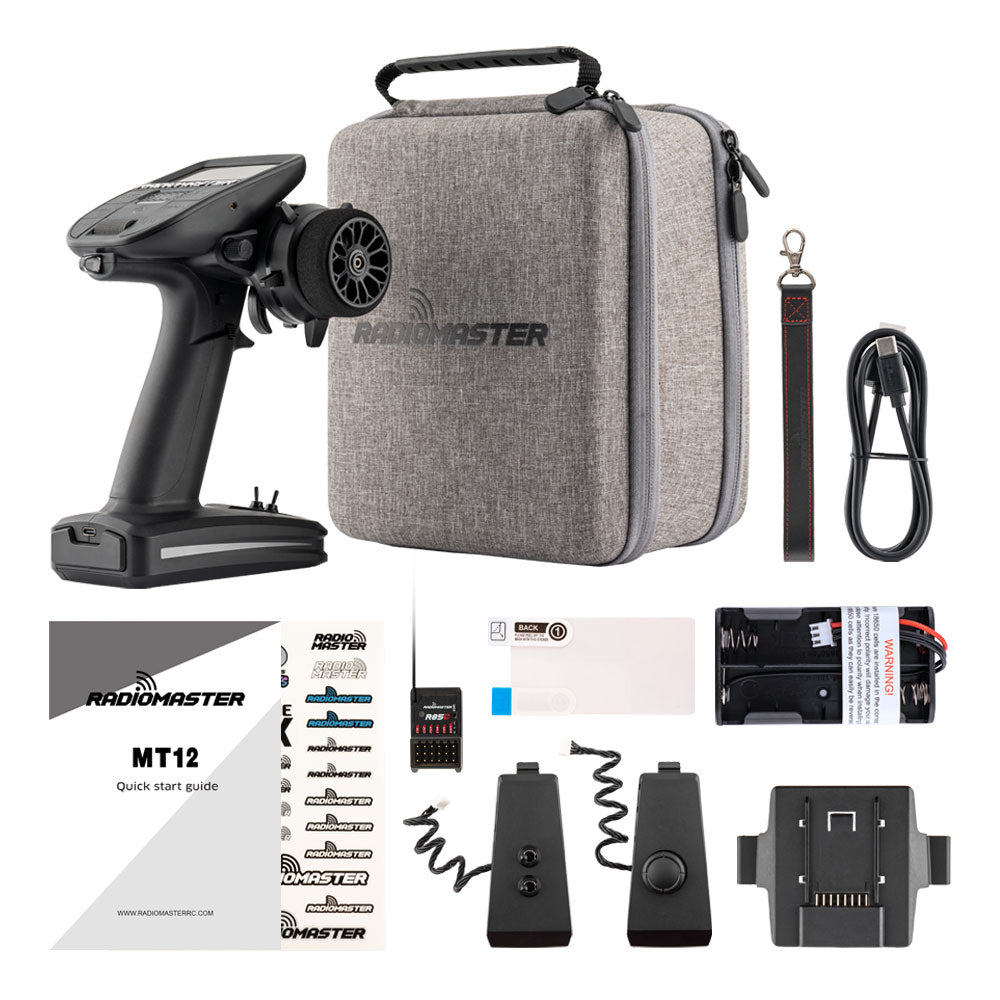

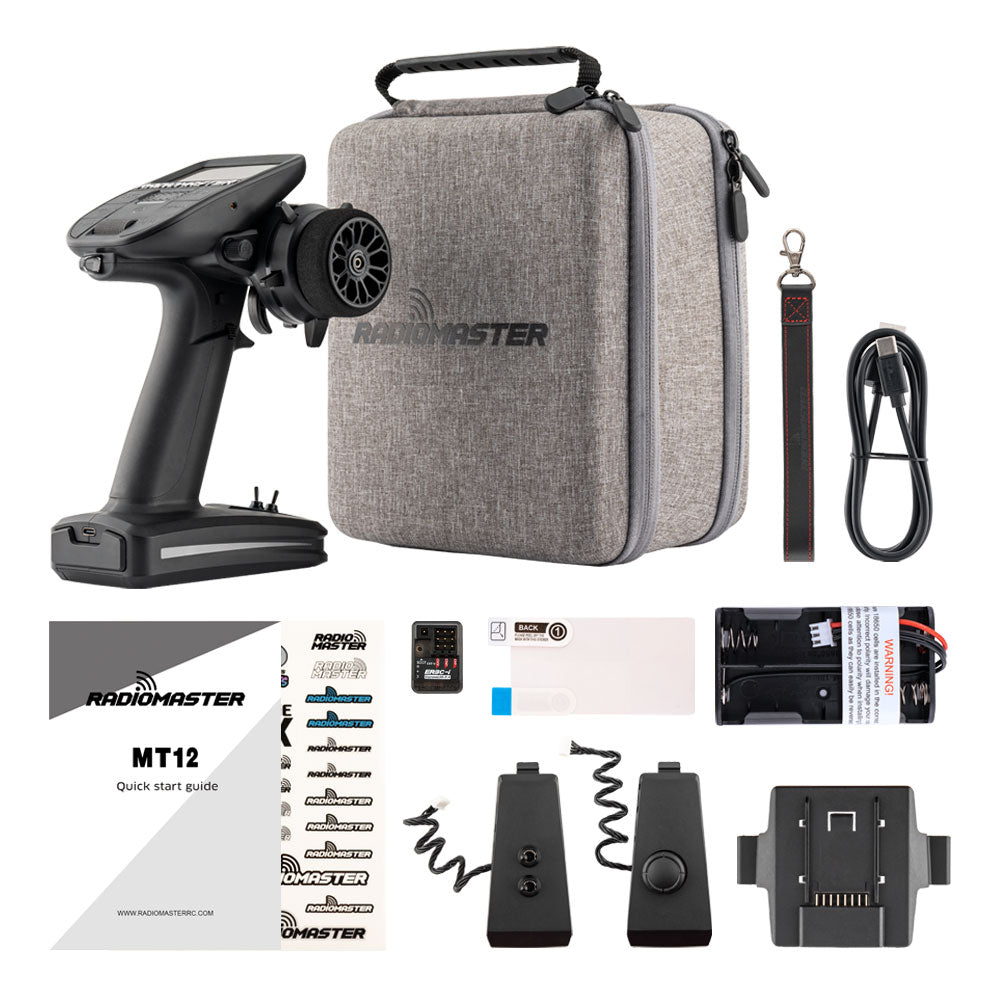

Package Includes
- 1 * MT12 Surface Radio ExpressLRS Version
- 1 * ER3C-i 2.4GHz ELRS PWM Receiver
- 1 * Dual Switch Expansion module
- 1 * 4 Way Joystick Expansion module
- 1 * Nano Adapter
- 1 * USB-C Cable
- 1 * Leather Lanyard
- 1 * Custom RadioMaster signature carry case
- 1 * 18650 Battery Tray
- 1 * Screen Protector
- 1 * Stickers
- 1 * Manual
OR
- 1 * MT12 Surface Radio 4in1 Version
- 1 * R85C Receiver
- 1 * Dual Switch Expansion module
- 1 * 4 Way Joystick Expansion module
- 1 * Nano Adapter
- 1 * USB-C Cable
- 1 * Leather Lanyard
- 1 * Custom RadioMaster signature carry case
- 1 * 18650 Battery Tray
- 1 * Screen Protector
- 1 * Stickers
- 1 * Manual
