Description

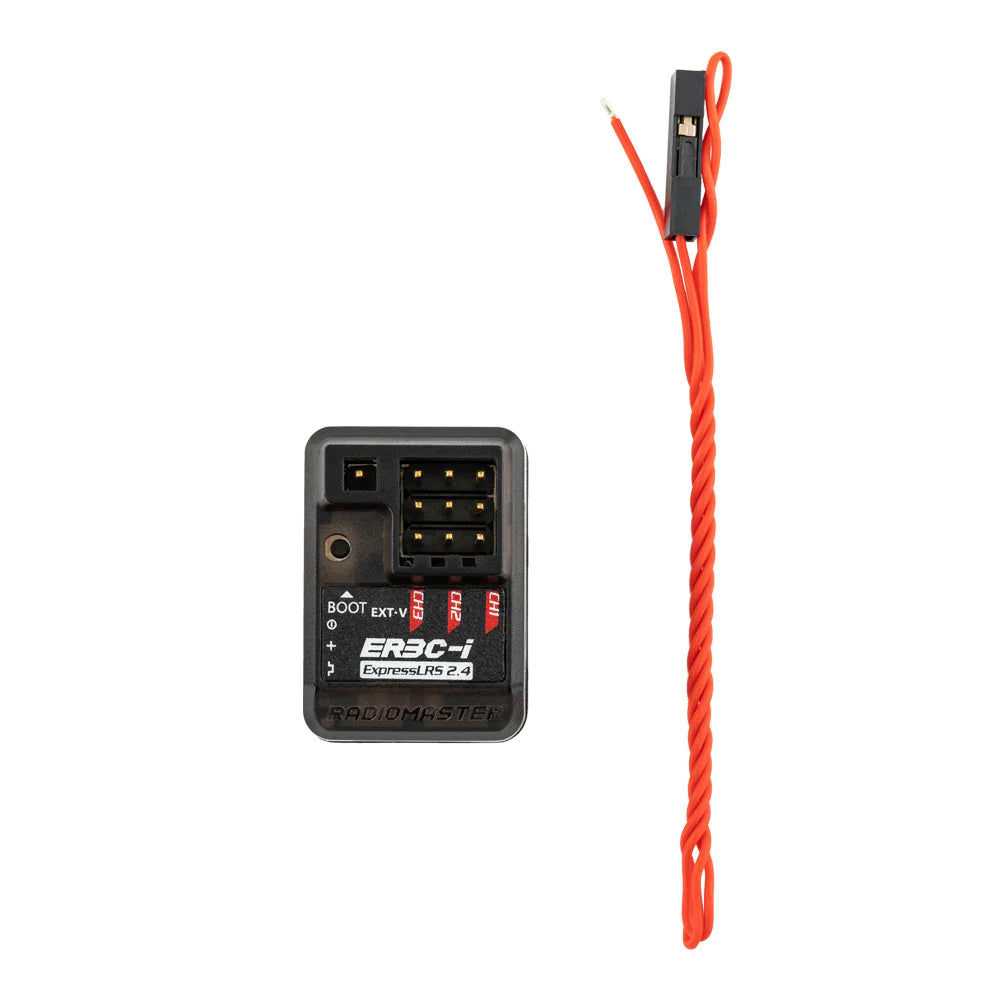

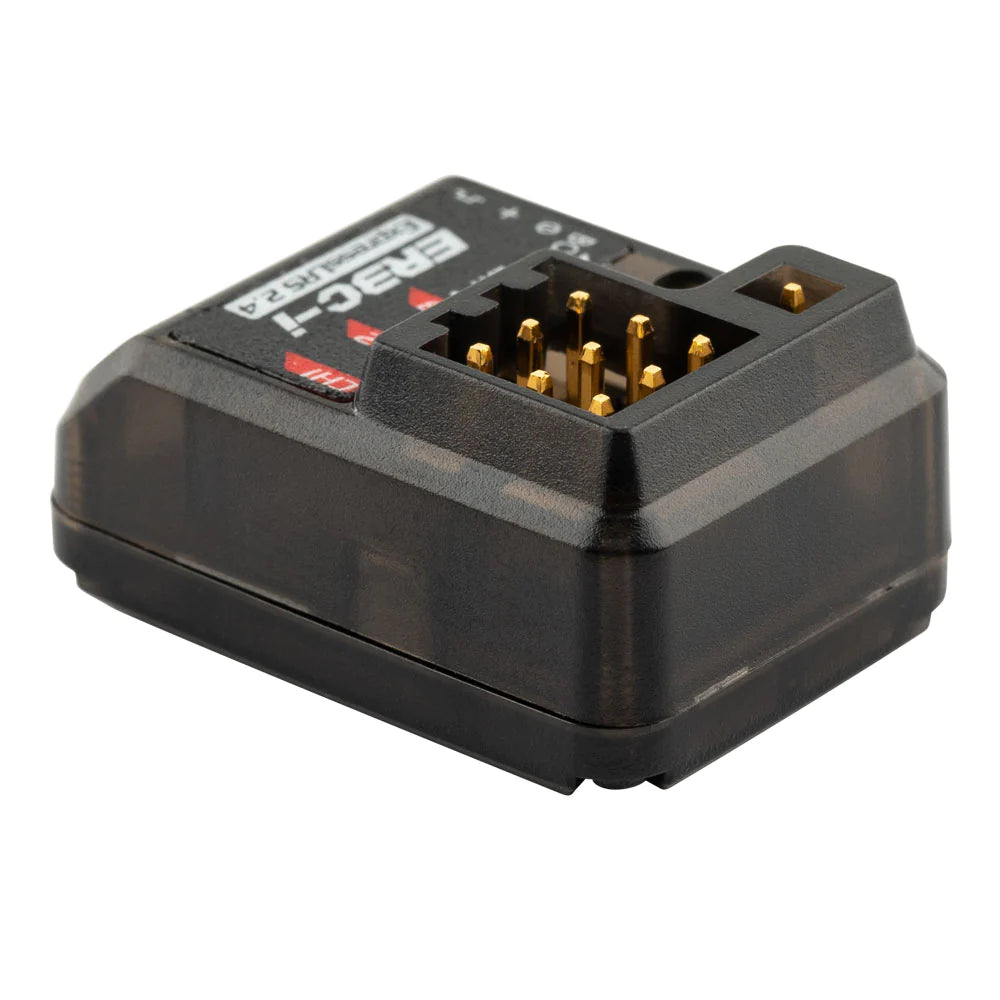

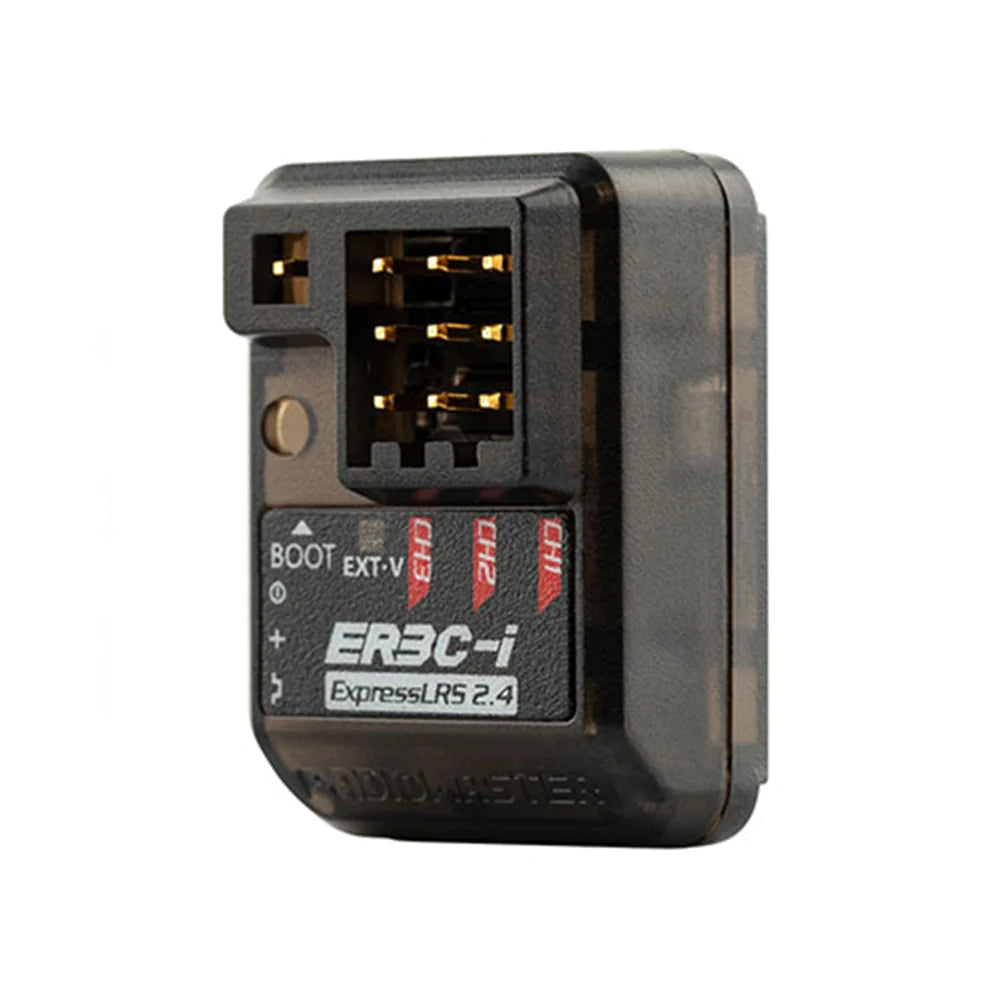

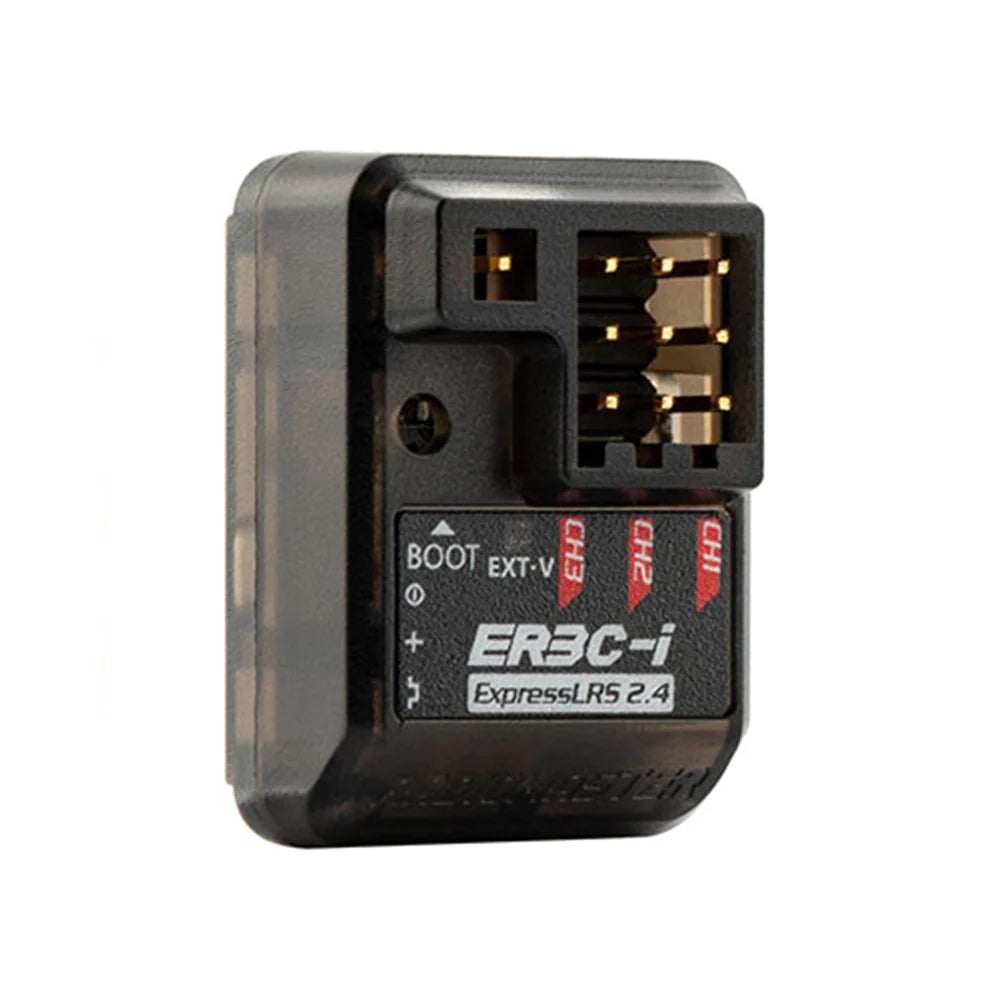

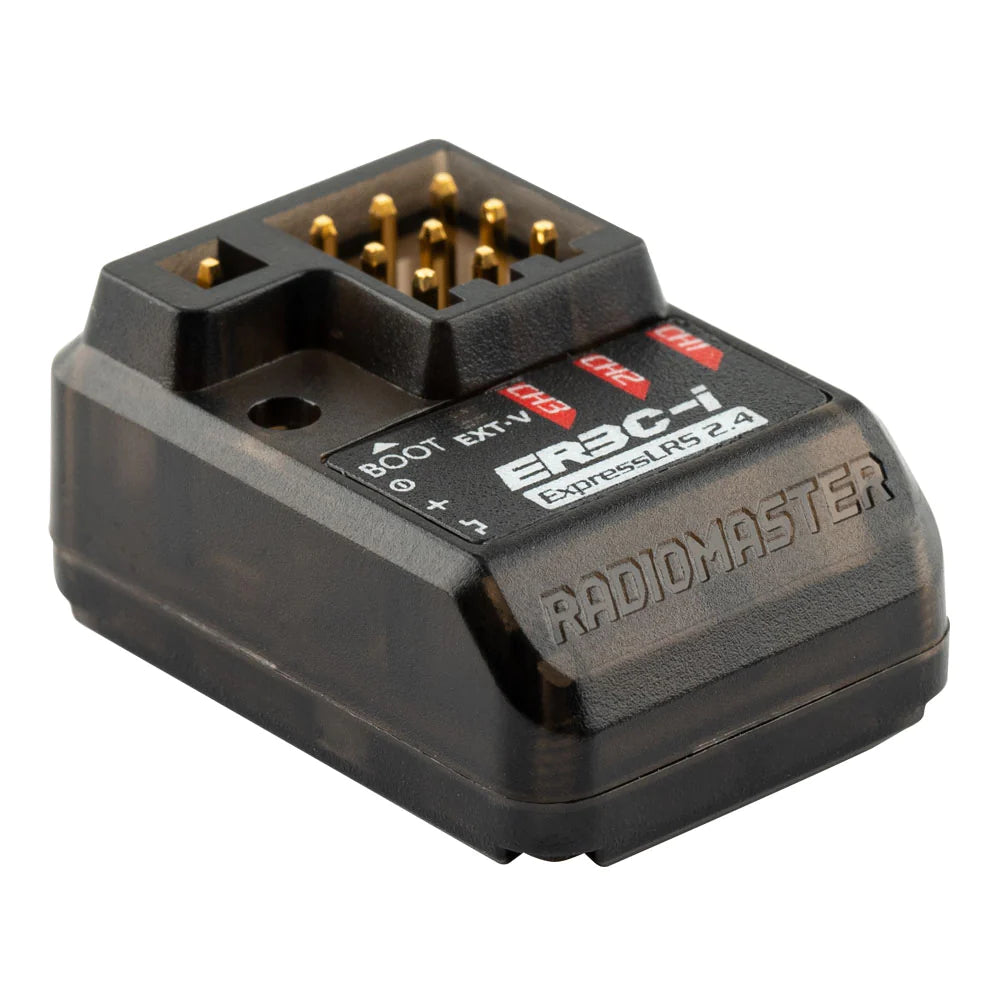

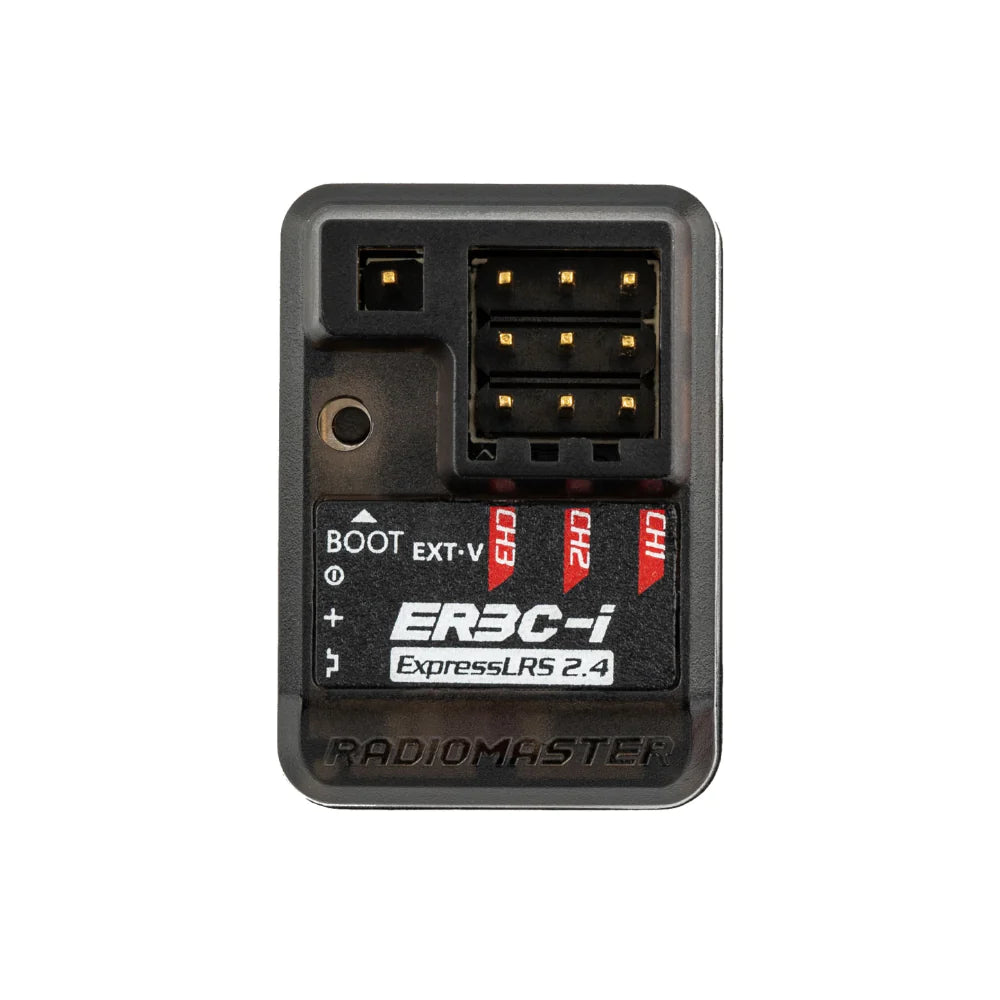

The RadioMaster ER3C-i receiver utilizes the advanced ExpressLRS system, known for its high performance and groundbreaking features. It offers exceptional reliability, versatile configuration options, rapid response times, and an extensive reception range, delivering a fresh and improved user experience.
With the capability to control up to 3 servos, the ER3C-i ELRS receiver incorporates built-in features such as receiver voltage telemetry and battery telemetry. It can intelligently detect the appropriate voltage input automatically. The receiver is equipped with a high-sensitivity ceramic antenna, ensuring optimal performance for various surface models. Additionally, its design allows for a tidy installation without the need for antenna wires.
Features
- Built-in high-sensitivity ceramic antenna
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Supports 3 PWM Channels
- Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
- Optimized ground up PCB design
- Supports Wi-Fi updates and WEBUI configuration
- Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
- Designed for all types of surface models
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications
- Item: ER3C-i 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5 - 8.4V
- Antenna type: Built-in high-sensitivity ceramic antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 3CH PWM
- Telemetry power: 10mW
- Battery voltage detection range: DC 4.0 - 35V
- Weight: 4.2 grams
- Dimensions: 26.1*18.5*13.0 mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i
Package Includes
- 1 * ER3C-i 2.4GHz ELRS PWM Receiver
- 1 * Voltage telemetry wire
- 1 * User Card
