Description

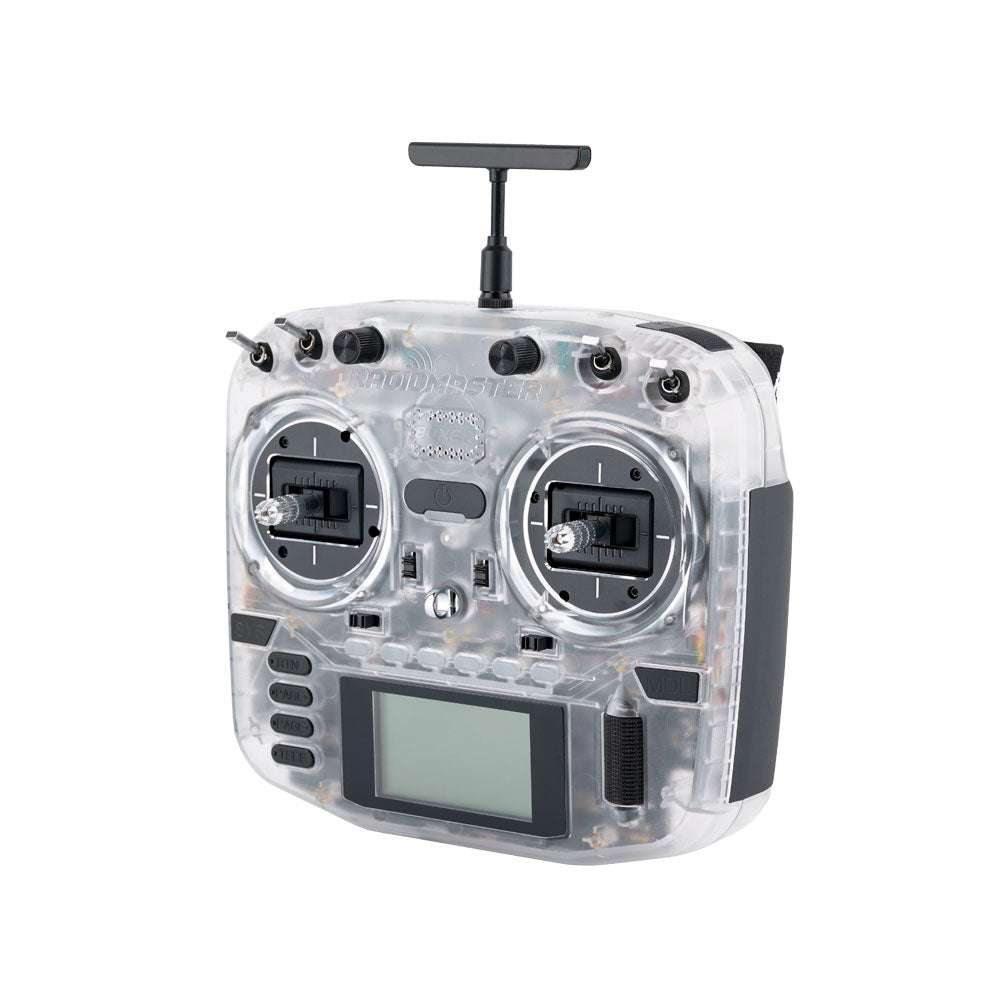

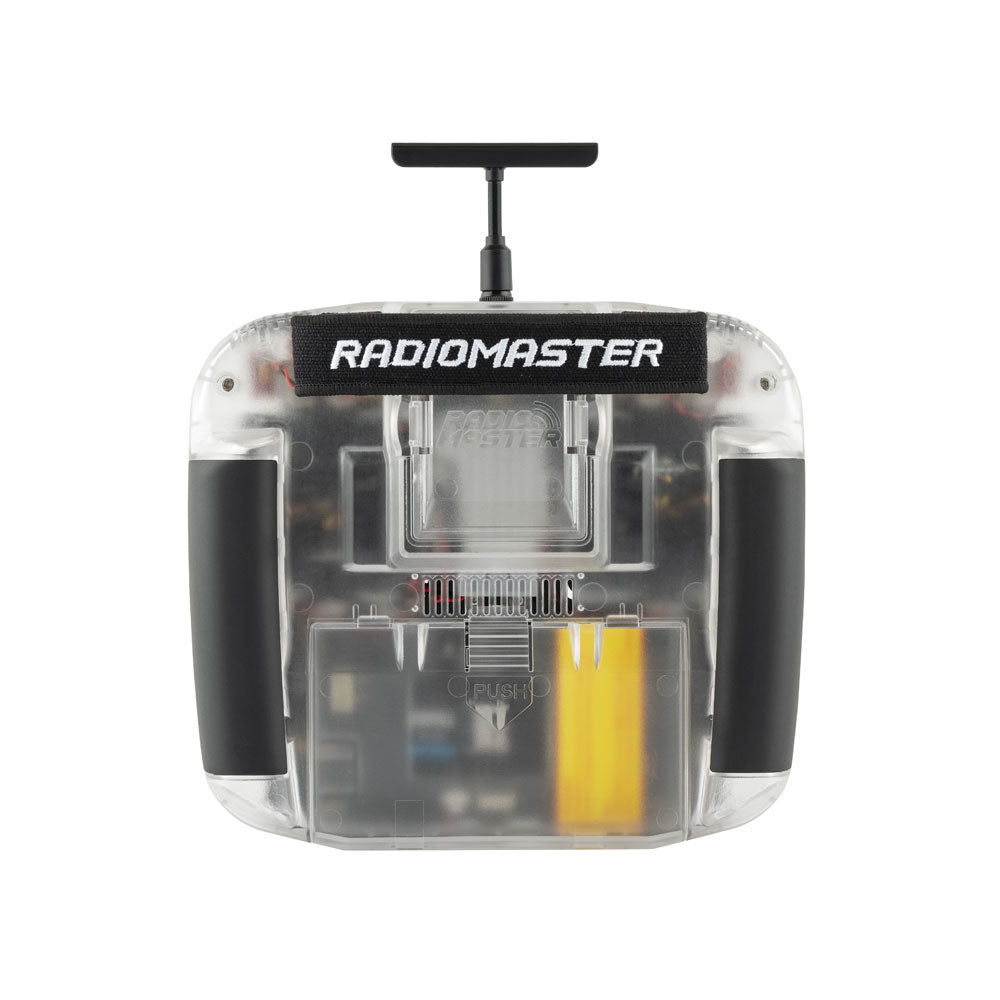

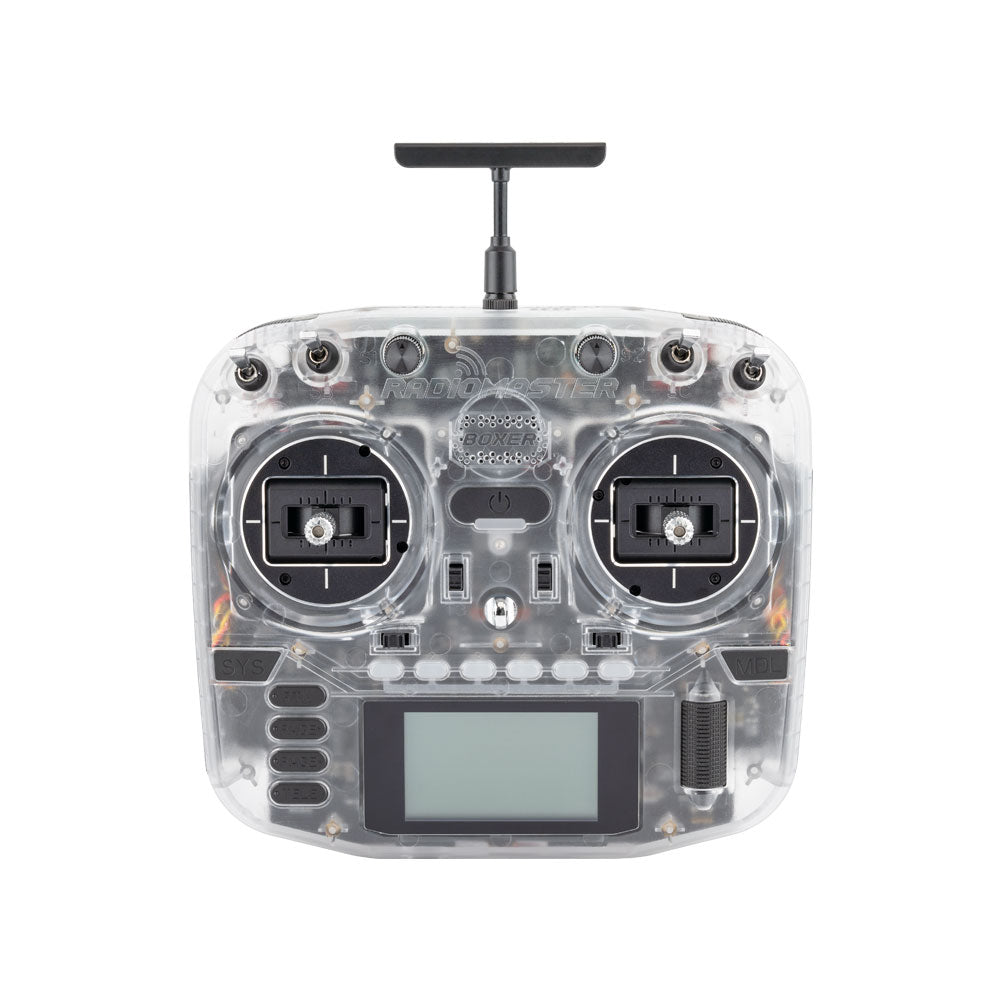

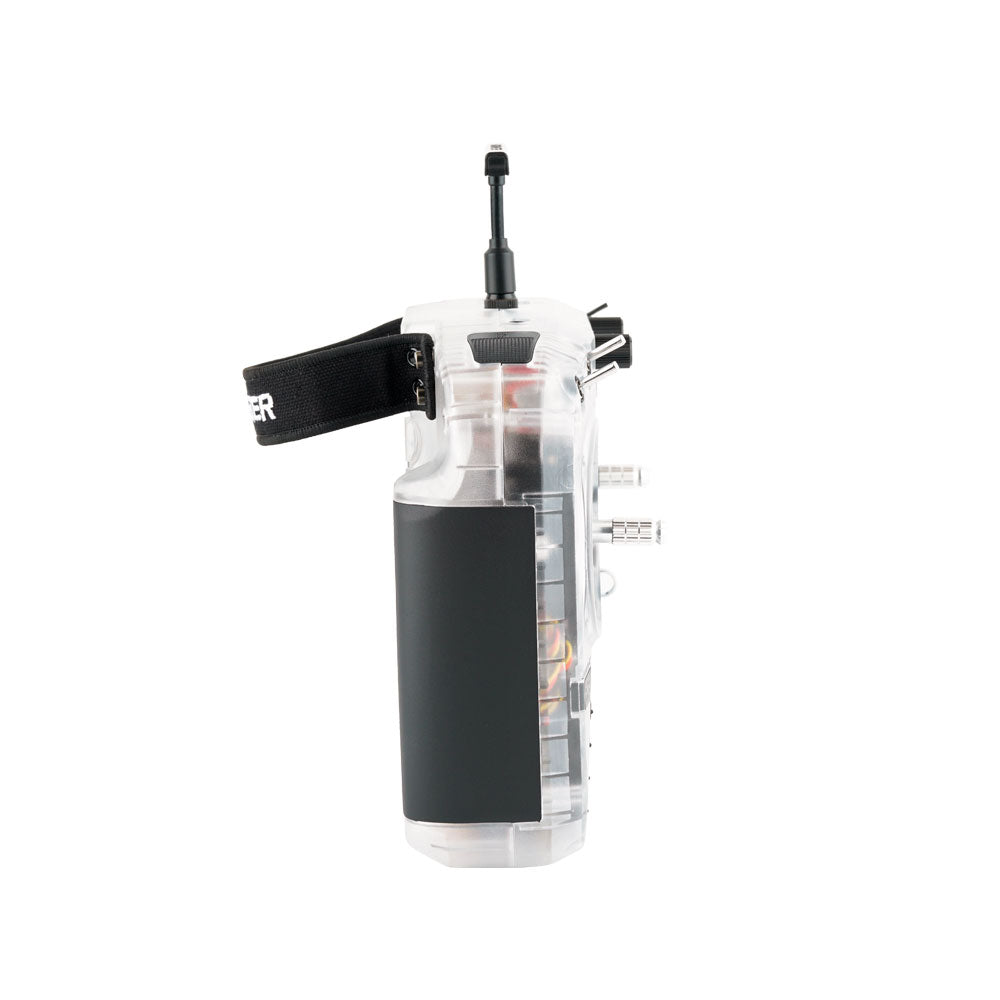

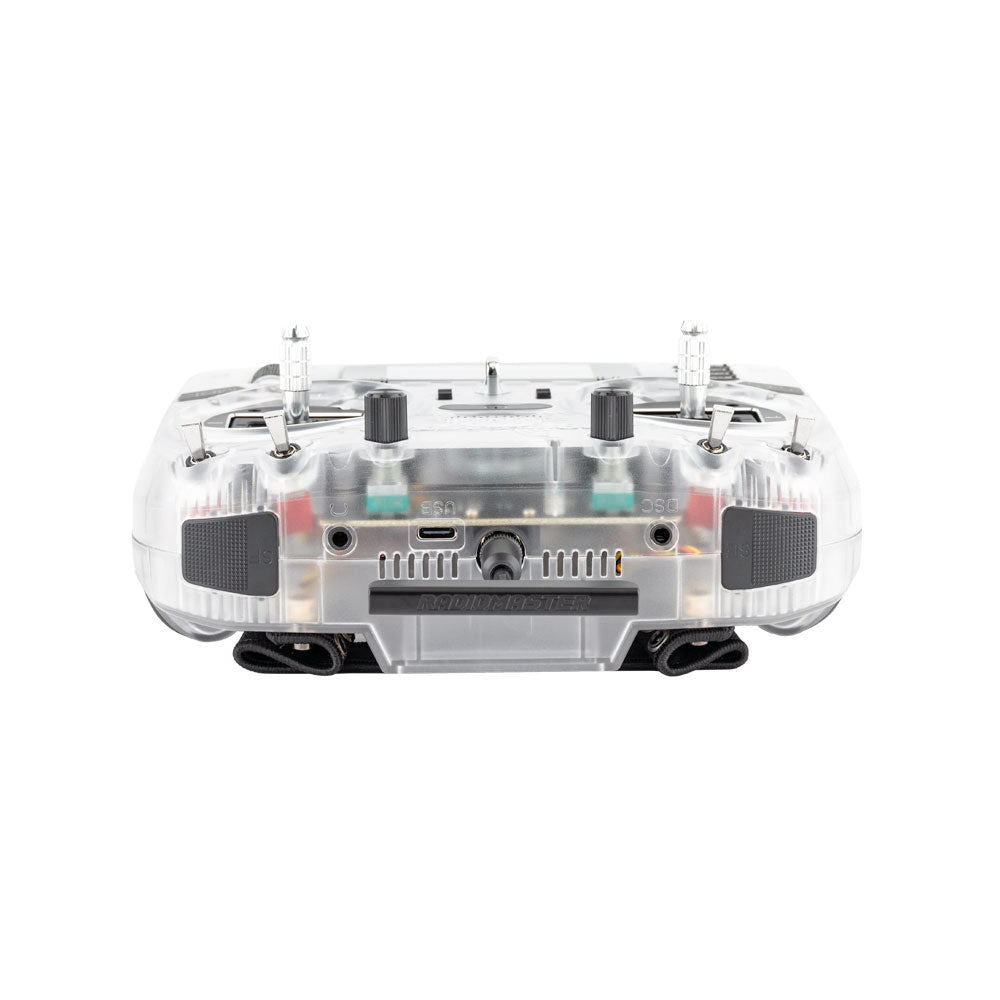

RadioMaster Boxer Radio Transparent Version ELRS
Our renowned Boxer radio has launched in a Transparent Edition, blending style and performance to ignite the RC community! Experience a captivating mix of sleek design and robust durability, packaged in a premium transparent casing. Get ready to be amazed by the added White LED kit, enabling further customization of your radio's appearance! As a bonus, enjoy the included neck strap for added style and comfort to complete the set.
Features
- Special transparent version radio with white Gimbal LED set and RadioMaster Neck Strap included
- You can DIY your personalized and unique radio anytime
- Available with built-in ExpressLRS Backpack
- Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile 6-position switch for flight mode access
- Adjustable and Removable T-shape Antenna
- Industry first fabric handle for improved portability
- Changeable, ergonomic grips
- Redesigned SD card slot with pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specifications
- Item: BOXER Radio Transparent Version
- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF: ELRS 2.4GHz
- Supported protocols: Module dependent
- Cooling fan: Built in (ELRS version)
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
- External module: JR / FrSKY / Crossfire compatible
- Upgrade Method: USB / SD card & EdgeTX Companion PC software
- BONUS: White Gimbal LED set included but not installed
- BONUS: Radiomaster neck strap
EdgeTX Operating System and ExpressLRS RF system pre-installed
Preinstalled with EdgeTX and ExpressLRS, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.

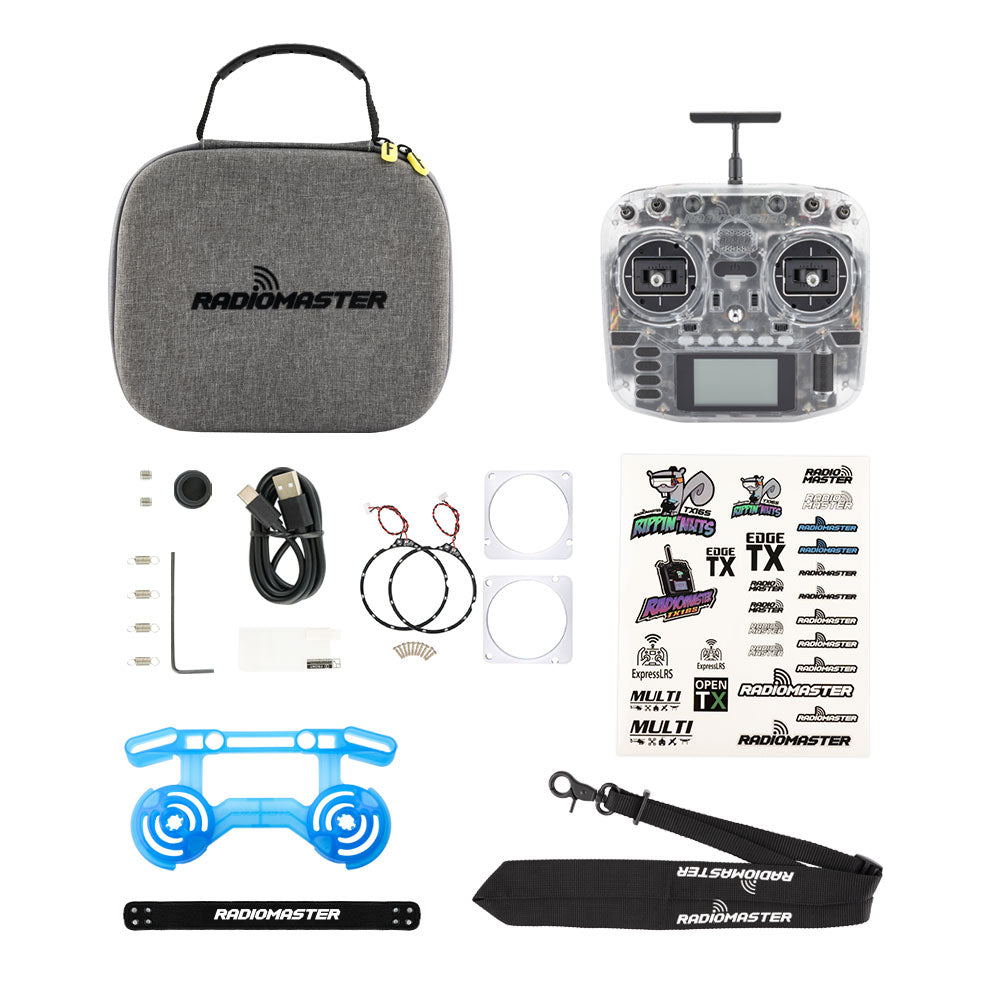

Package Including
- 1 * BOXER Radio Transparent Version
- 1 * Signature Carry Case
- 1 * T Antenna
- 1 * USB-C Cable
- 1 * Gimbal Protector
- 1 * 1.5mm Allen Key
- 2 * M4*4 Screws
- 4 * Low Tension Springs
- 1 * Stickers
- 1 * Manual
- 1 * White Gimbal LED set (ready to install)
- 1 * 18650 Battery tray (Batteries not included)
- 1 * RadioMaster Neck Strap for Transmitter
