OMP Hobby M4 Helicopter 65A ESC OSHM4050
Roll over image to zoom in Click on image to zoom

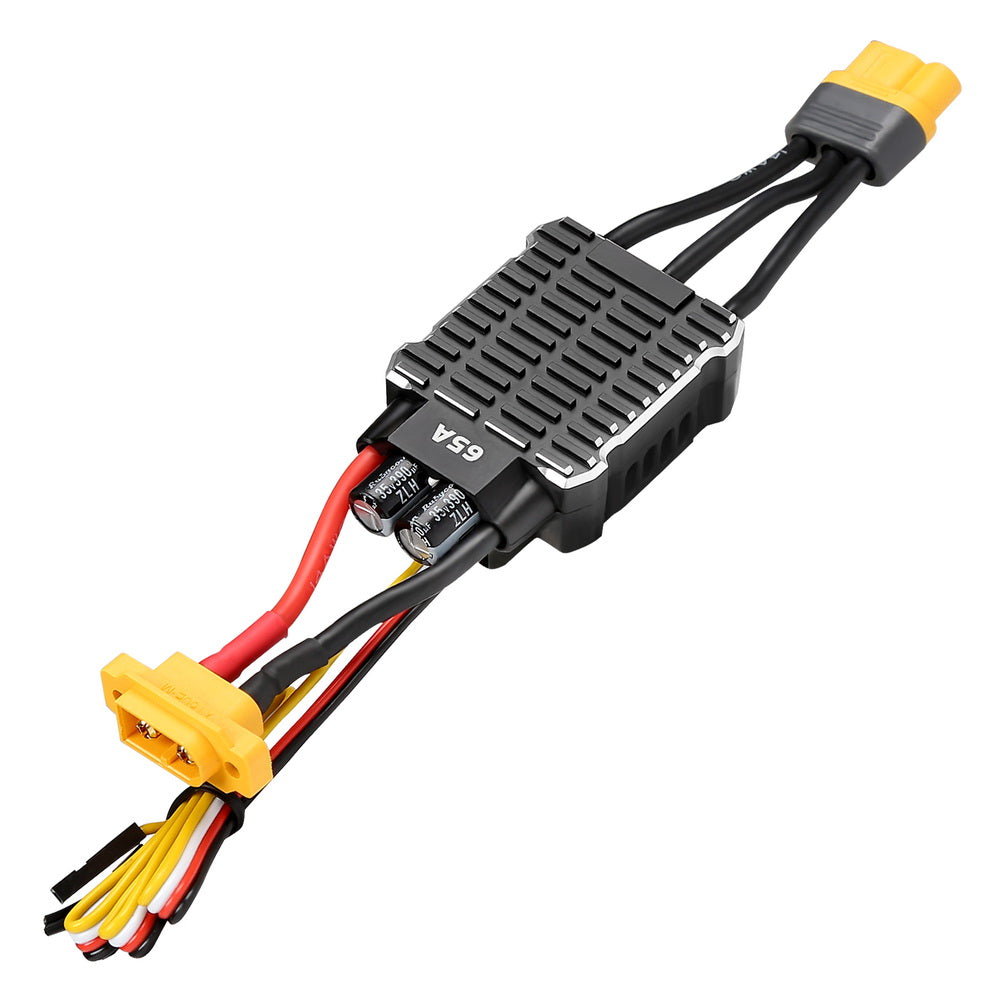

OMP Hobby M4 Helicopter 65A ESC OSHM4050

OMP Hobby M4 Helicopter 65A ESC OSHM4050

OMPHOBBYSKU: OSHM4050
Price:
$69.99

More payment options

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100%
(1)
R
Roberto L.
DOA

ESC appeared to be Dead On Arrival. Followed instructions (which you have to search for on line, not included with ESC) and never got the unit to turn on or beep. Good luck getting any support from OMP. Item returned and will switch to different brand that is better supported.

Description

Description:

65A ESC designed for the OMPHobby M4 Helicopter.
Supports telemetry with VBar Control, MSH Brain2 / iKON2, Spirit, RotorFlight, and Futaba S.Bus2 systems.

Download Manual

Specifications:

Continuous / Peak Current: 65A / 100A
Input Voltage: 3–6S LiPo HV
BEC Output: 6V / 7.4V / 8.4V @ 10A
Dimensions / Weight: 60 × 36 × 18.5 mm / 65g
Wiring: 1× Black & 1× Red 10AWG Silicone Wire

Connectors:

Battery Connector: XT60
Motor Connector: MR60
3-Pin Throttle Signal Plug:
S: Throttle Signal
+: BEC Output
–: Ground
1-Pin RPM Signal Plug
5-Pin Programming Header:
TX: Transmit
RX: Receive
+: BEC Output
–: Ground
