Description
Make sure to select 550KV in the above motor KV drop menu. Other KVs are not recommended for this airplane.
Recommended CG: Carbon spar going through the fuselage
This is an oversized box and does not qualify for free shipping. Flat rate shipping applied at checkout.
Parameter Specification
|
Item： |

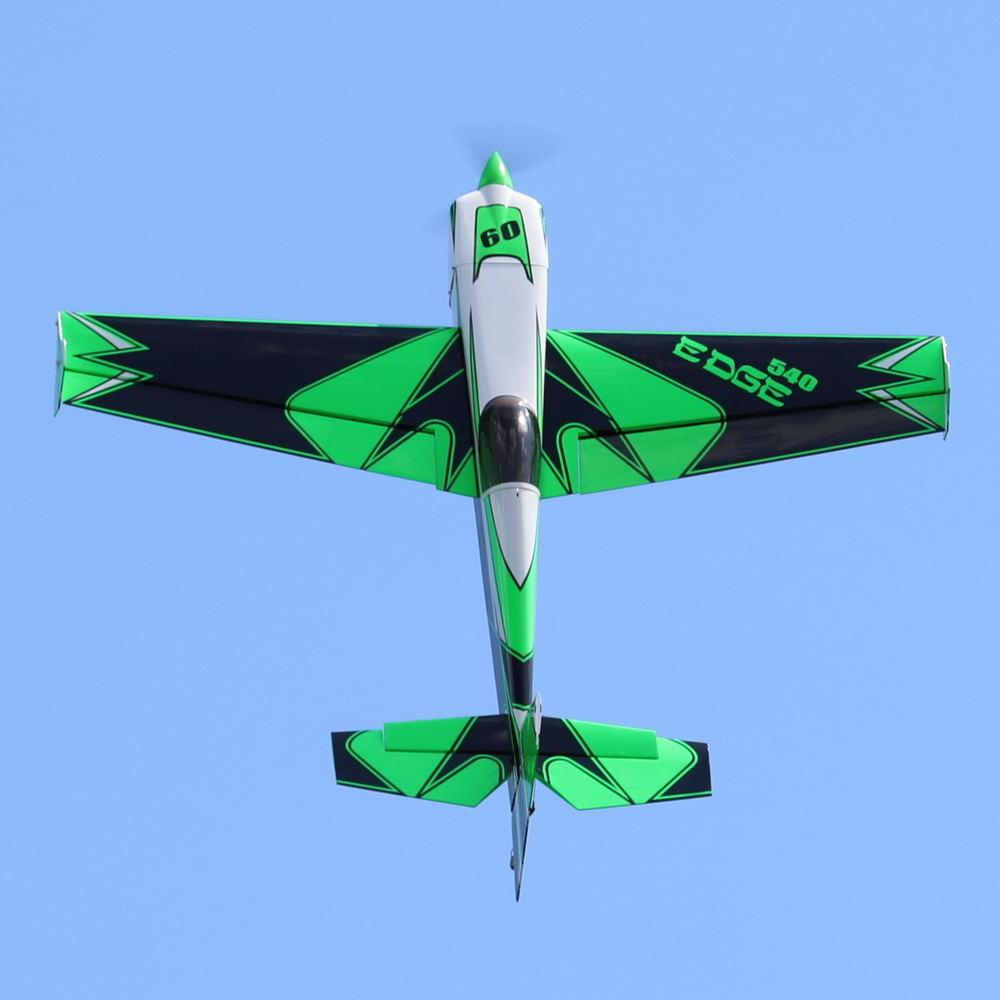

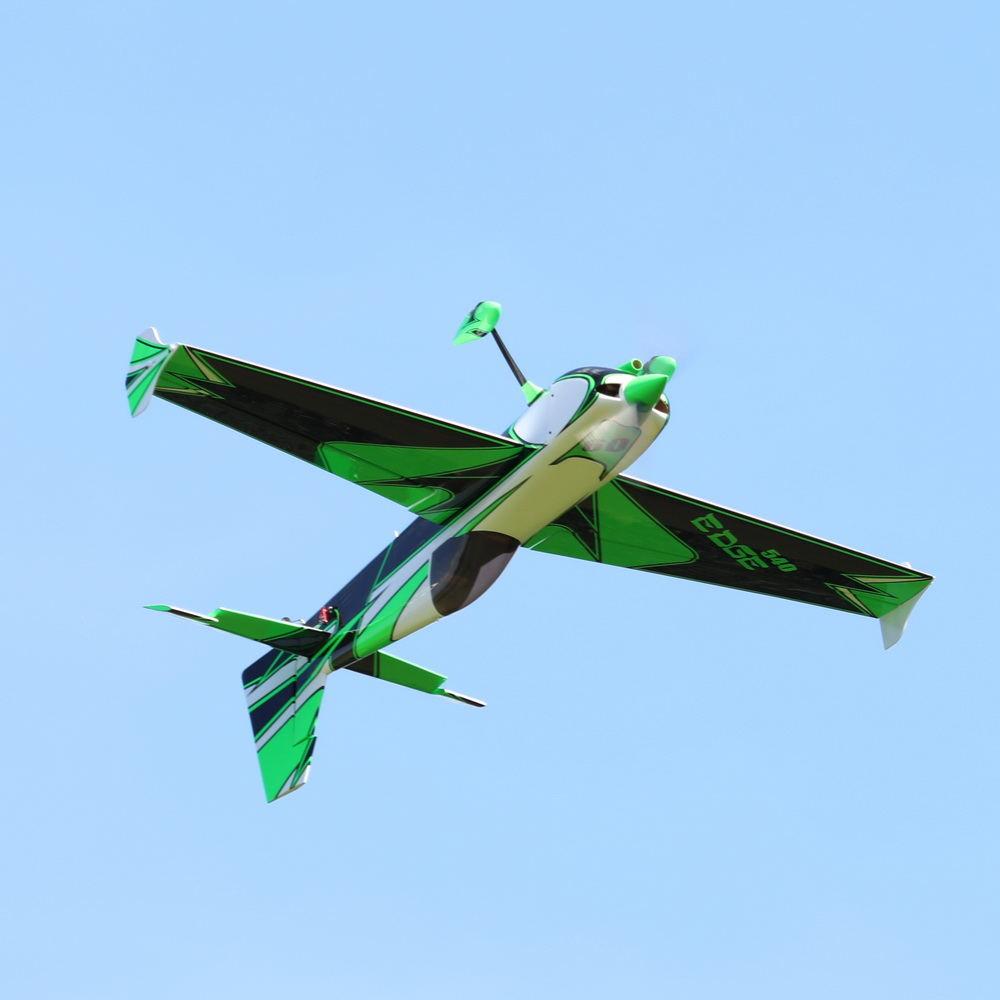

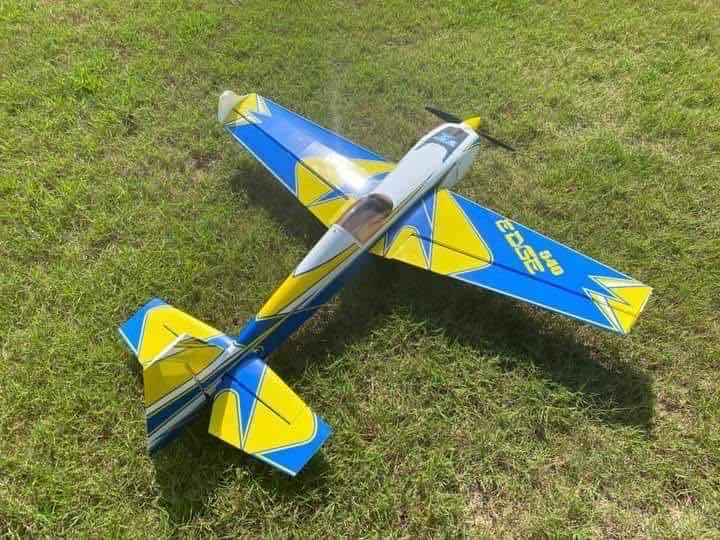

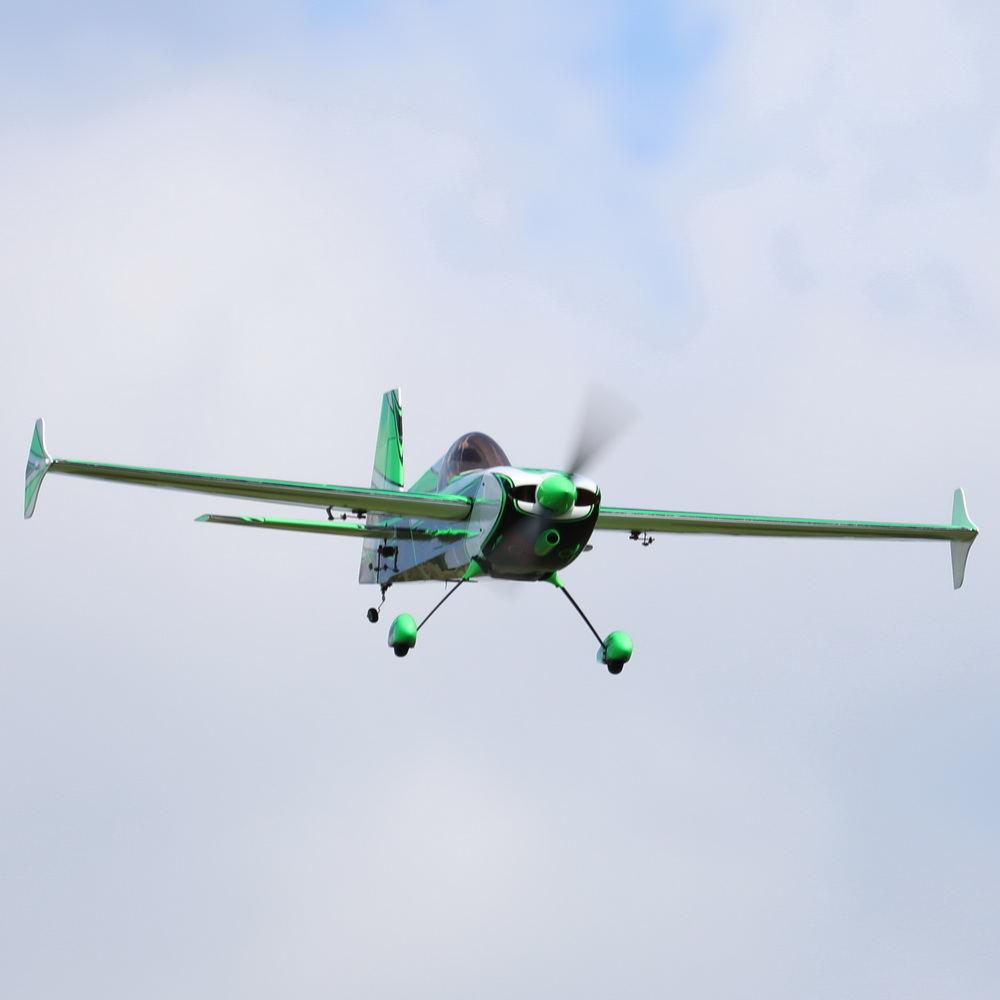

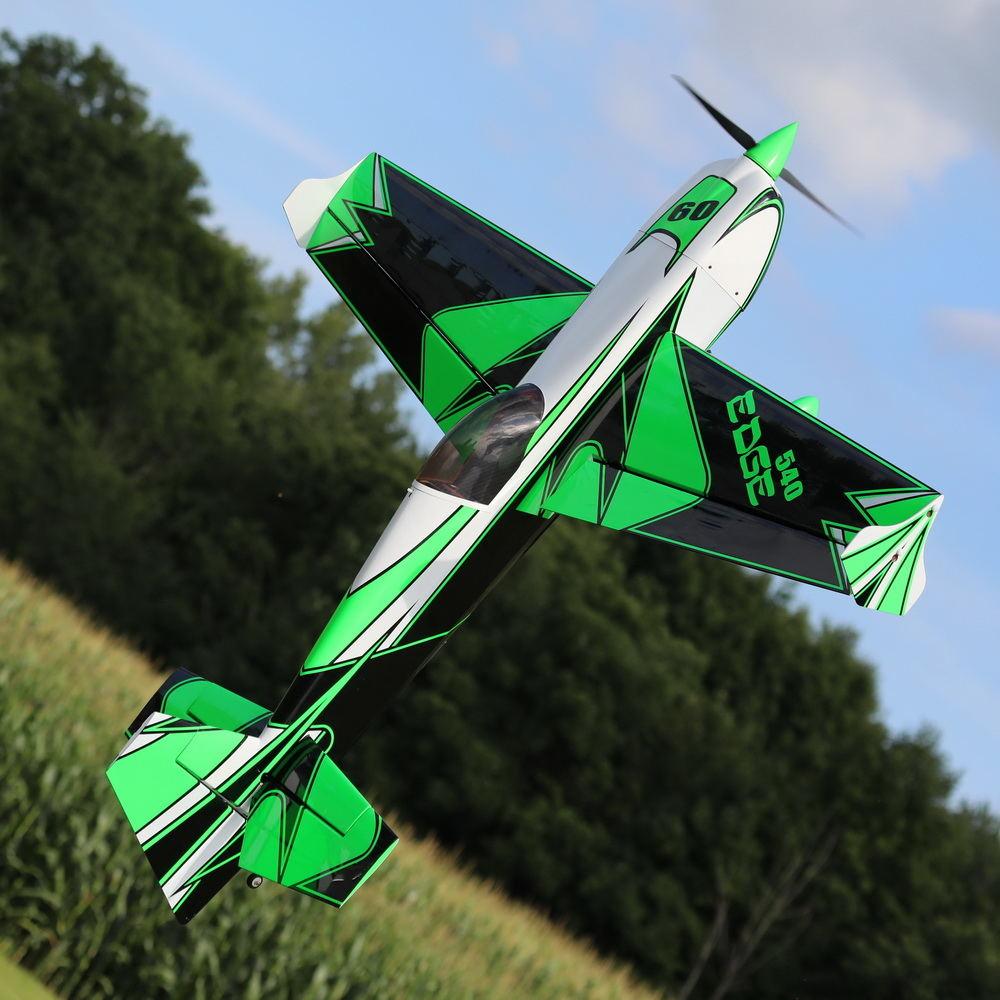

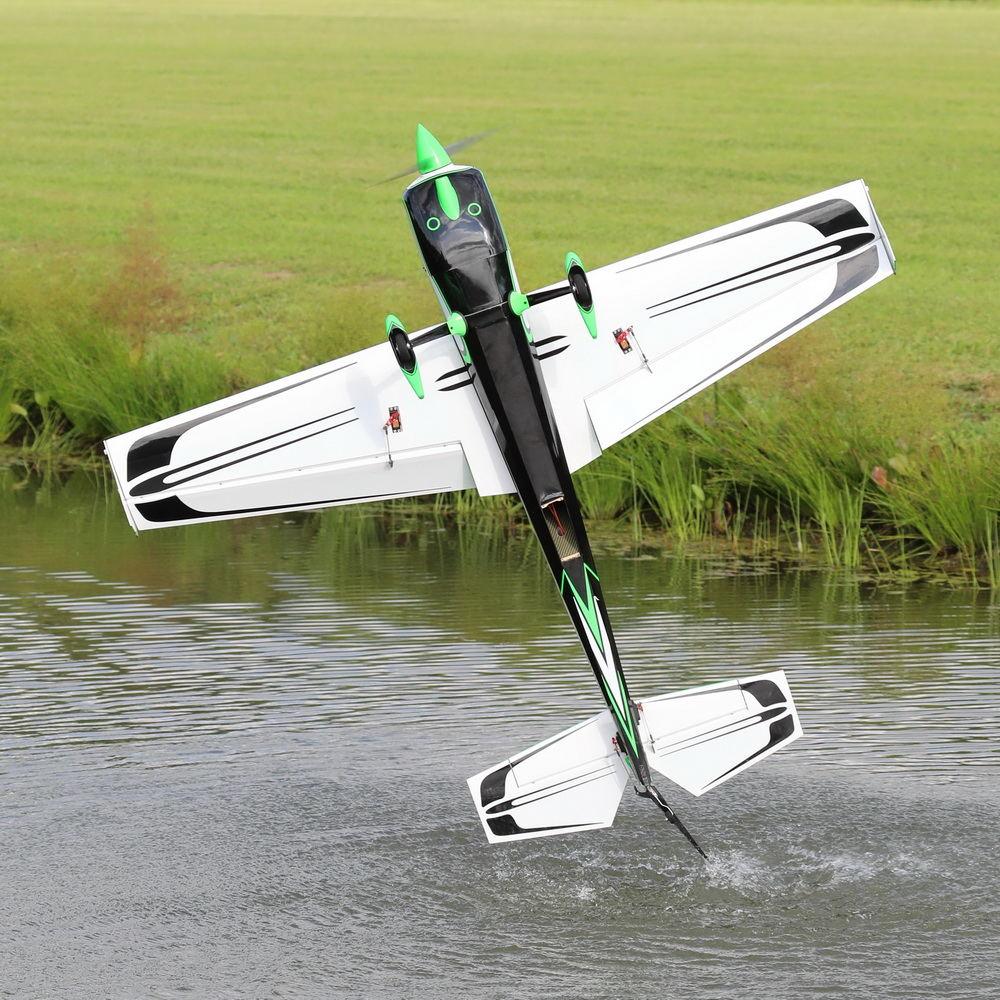

OMPHOBBY 60”EDGE 540 |
Color: |

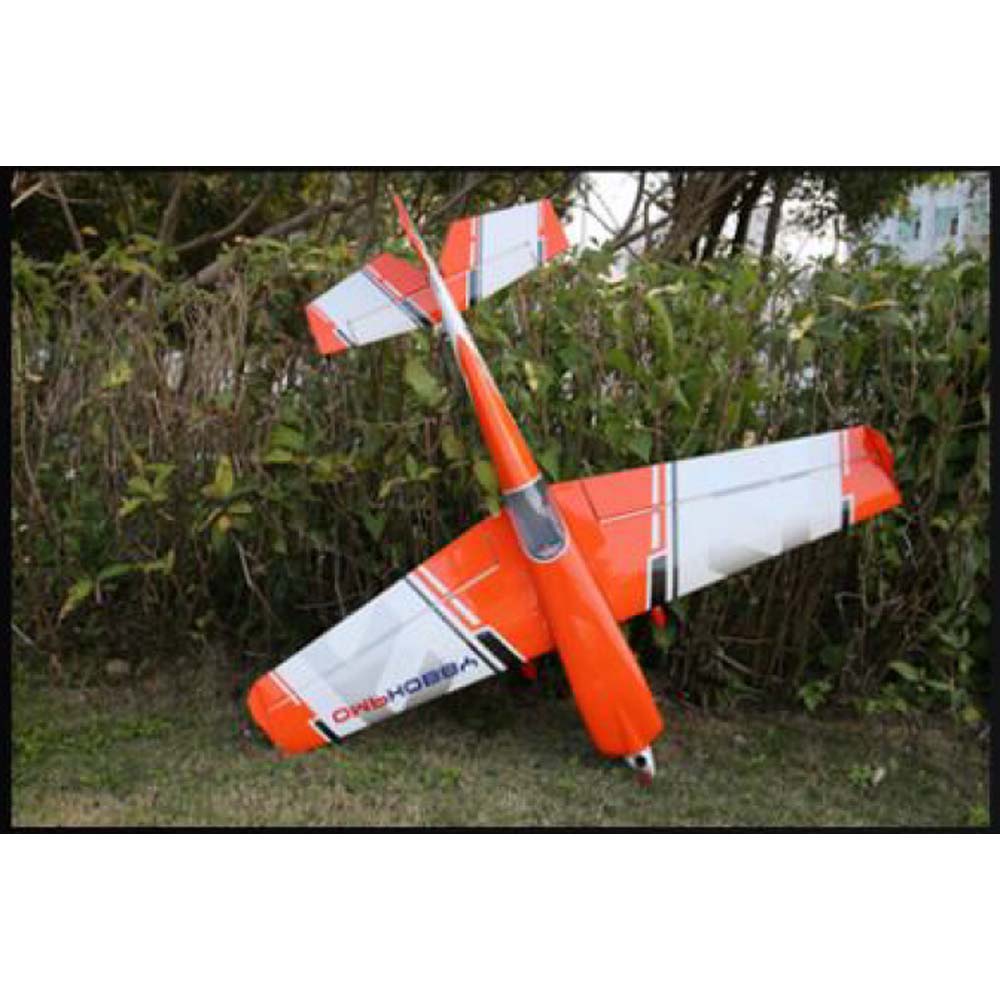

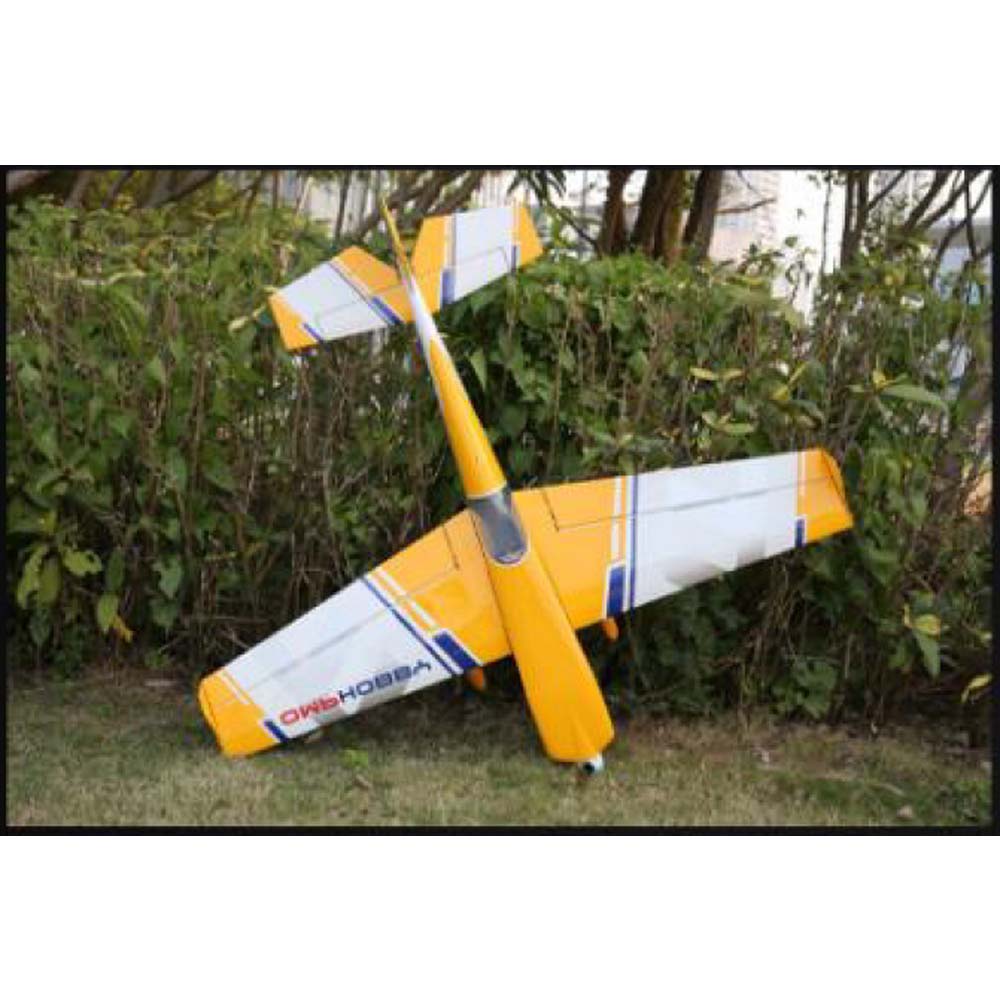

Green▢ Red▢ Yellow▢ Orange▢ |
|
Wing Span: |
1524mm(60in) |
Full Length: |
1500mm(59in) |
|
Flight Weight: |
2.75~2.85KG |
The Center of Gravity (CG)： |
Approx.86-95mm |
|
Wing Area: |
42.32d㎡ |
Wing Load: |
64.98~67.34g/d㎡ |
|
Wing Angle of Incidence: |
0° |
Motor Thrust Angles: |
Down 0° & Right 2.8° |
|
Pack Dimension： |
130*44*22 (L*H*W)cm |
Gross Weight: |
10KG |
|
Servo: 13~15 Kg.cm*4 (Aileron*2,Elevator*1, Rudder*1) , Servo Arm: 1.25" 25T Servo Arm |
|||
|
Electric Power (Recommended):
Option 1: Motor: X4120 550KV ESC: 80-100A Propeller: Eolo 15x8 Lipos: 6s 3300mah-4000mah Option2: Motor: 4125 515KV Esc 100A Propeller: Eolo 16x8 Lipos: 6s 3300mah-4000mah |
|||
Recommended Settings of Dual Rates and Exponentials of Control Surfaces
| Rate | EXP | Direction |
Throw |
|
| Aileron |
High |
35~40% |
Up |
36~39° |
| Low |
40~45% |
Down |
20~26° |
|
| Elevator |
High |
38~45% |
Up |
45~53° |
| Low |
45~55% |
Down |
30~35° |
|
| Rudder |
High |
38~45% |
Up |
42~50° |
| Low |
45~55% |
Down |
28~32° |
Factory recommends SunnySky X4120 V3 550KV motor for best agility and power.
100 Amp ESC-- https://www.buddyrc.com/products/ztw-mantis-120a-high-voltage-esc-opto?variant=30274465103958
Servos -- 35mm L X 15mm W x 29.2mm H, such as Savox 1250, or MKS hv737, or Hitec 7245.
