Description

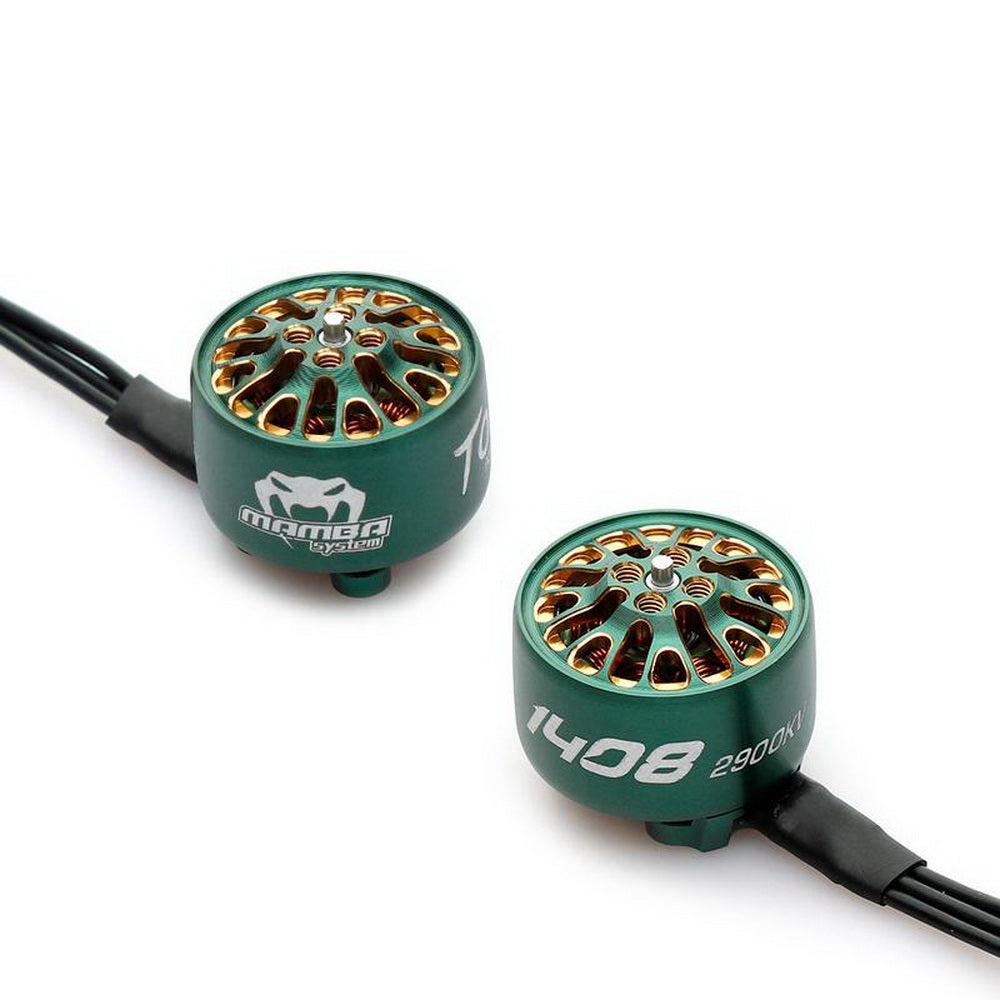

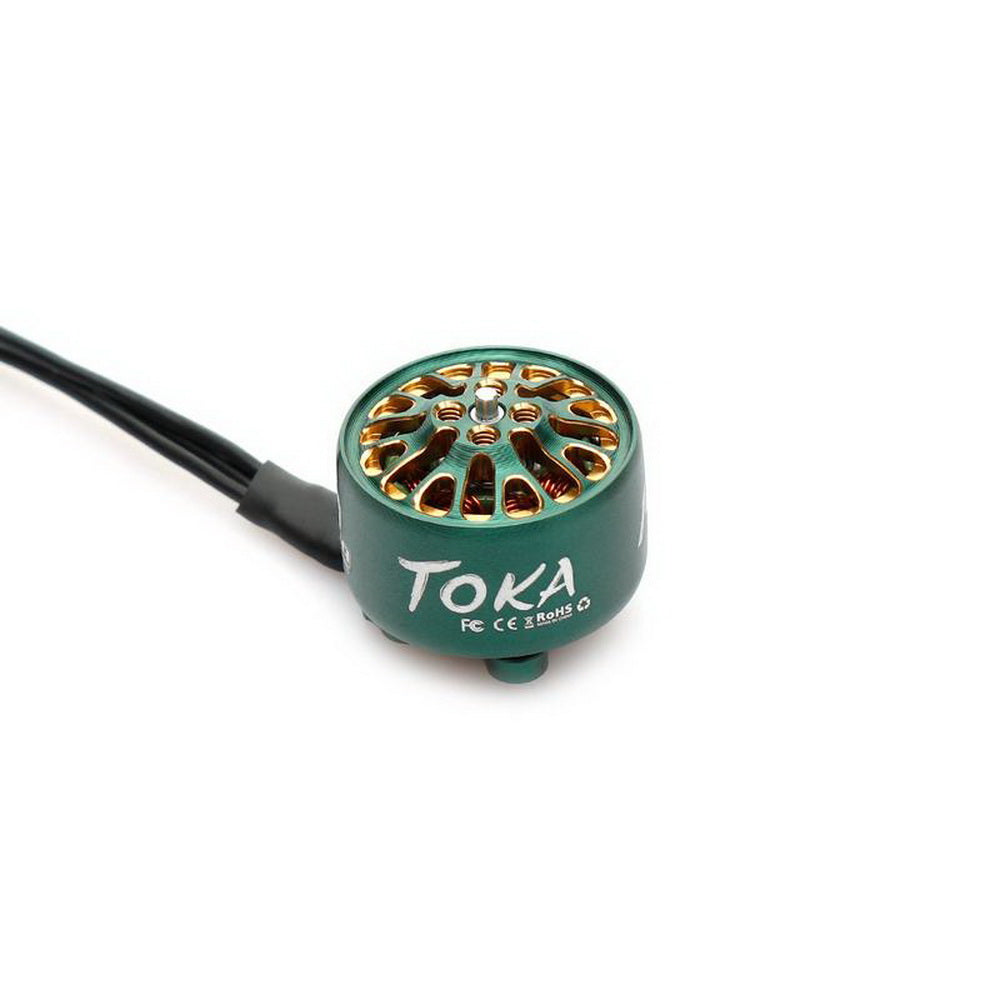

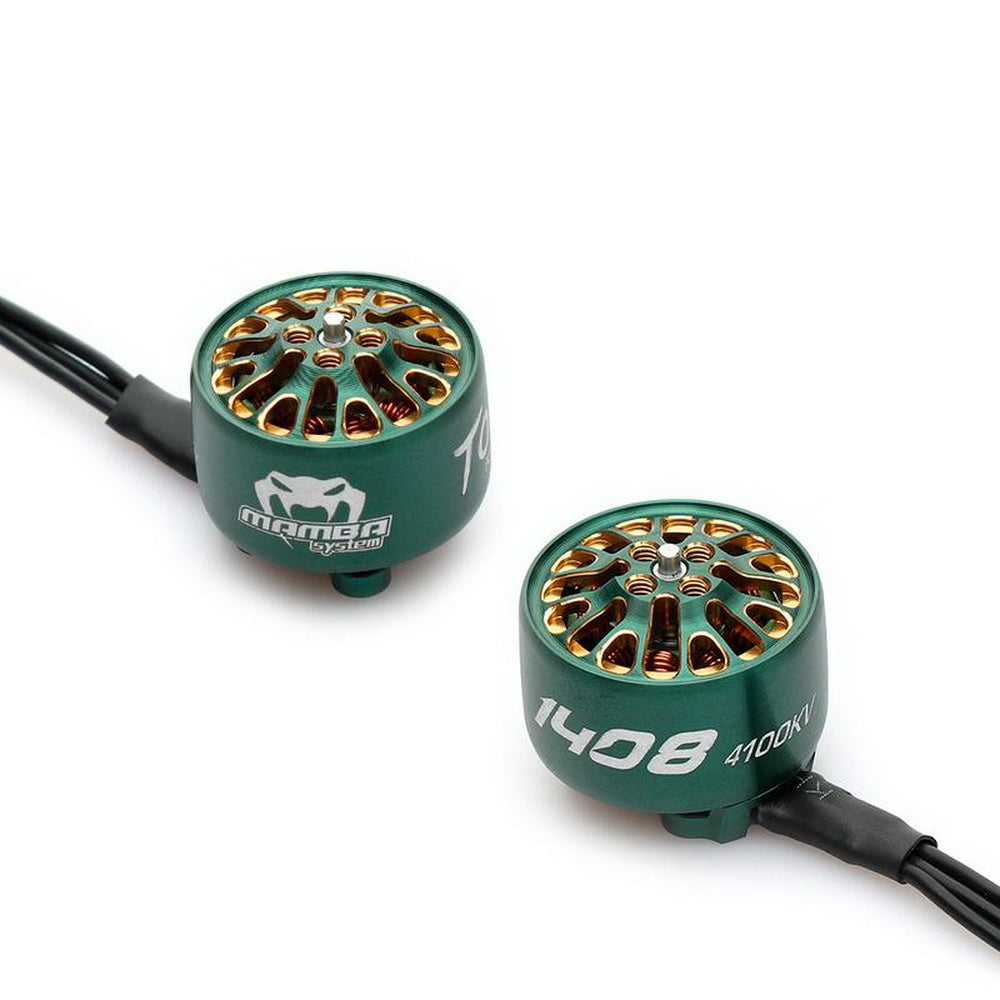

DIATONE MAMBA TOKA 1408 2900KV or 4100KV Racing Motor Green
Specification:
Mamba Toka 1408 2900KV Racing Motor Green
Overall Dimension:Φ20.6×18.5mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch
Bearing：5*2*2.5
Shaft Diameter:2.0mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：14mm
Stator Height:8mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 15.75A
ldle Current：10V/0.4~1.0A
Maximum Power: 376.3W
Internal Resistance：135Ω
Mamba Toka 1408 4100KV Racing Motor Green
Overall Dimension:Φ20.6×18.5mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch
Bearing：5*2*2.5
Shaft Diameter:2.0mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：14mm
Stator Height:8mm
Pated Voltage:3~4S (12.6V~16.8V)
Peak Current: 19.5A
ldle Current：10V/0.8~1.5A
Maximum Power: 376.3W
Internal Resistance：85Ω
