Description
X20-1806 Brushless Low-profile Servo 18Kgf.cm 0.06sec for 1:10 Scale On-road Touring and Drift Cars, 1:10 Scale Off-road Buggies, Aerobatic Airplanes and Jets
Packing Including

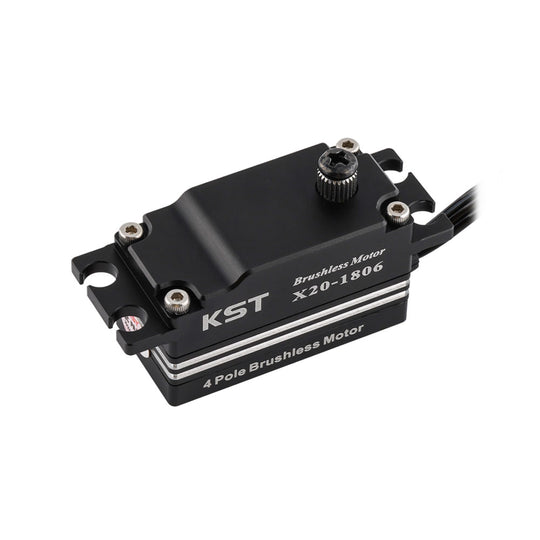

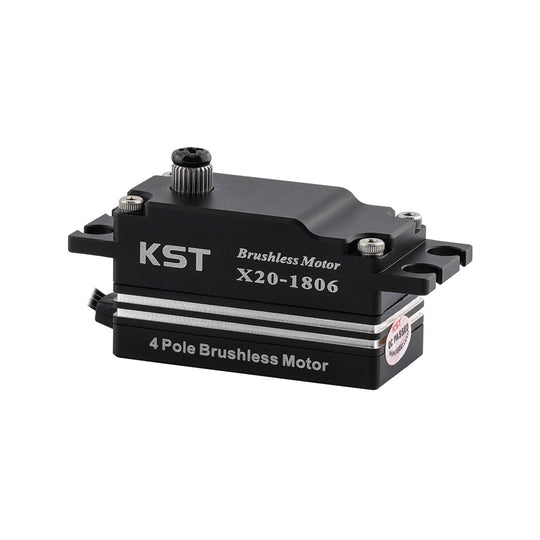

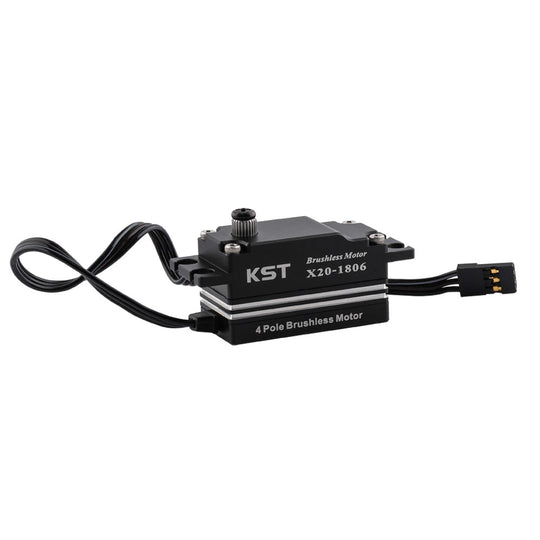

X20-1806 brushless low profile servo is the first servo with 4 pole brushless DC motor. High torque and super fast response time. The low profile design of these servos make them ideal for use in modern 1:10 on-road touring and drift cars and 1:10th scale off-road buggies.
Features
- 4 Pole Brushless DC Motor, with fast response and high efficiency
- Extreme torque & speed
- CNC aluminium case
- Working Frequency is up to 1520us/333Hz
- Programing box/USB link compatible
- Designed for 1:10 on-road touring and drift cars and 1:10th scale off road buggies. The low profile of these servos also makes them ideal for high performance airplanes and jets that require a low profile servo in a slim wing.
*Please note never plug the servo into a live system
Specification
- Item: X20-1806 Brushless Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 14Kgf.cm@6.0V, 16Kgf.cm@7.4V, 18Kgf.cm@8.4V
- Speed: 0.08sec/60°@6.0V, 0.07sec/60°@7.4V, 0.06sec/60°@8.4V
- Start Current: 4.0A@6.0V, 4.8A@7.4V, 5.8A@8.4V
- Working Frequency: 1520us/333Hz

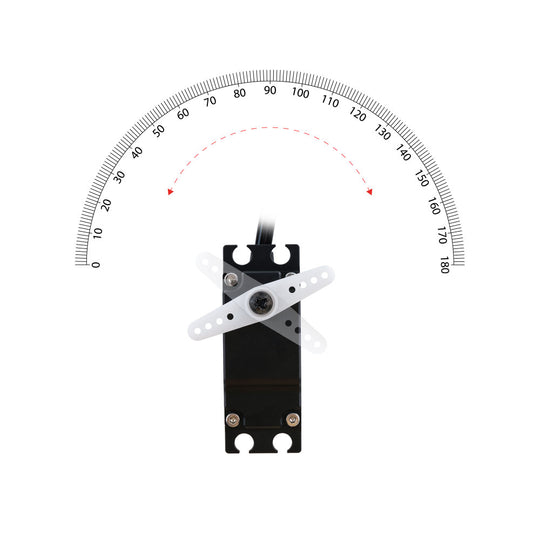

- Default Travel Angle: ±100° =200° Total
- Temperature Range: -20℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: 4 pole Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Case Dimensions: 40.5mm*20mm*23.1mm±0.2mm
- Weight: 50g±10%
