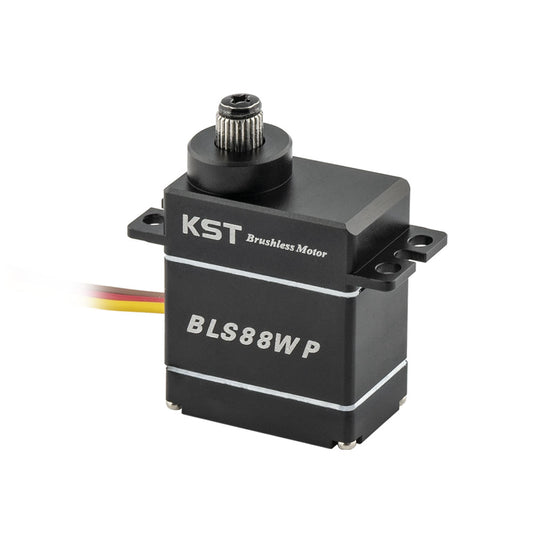

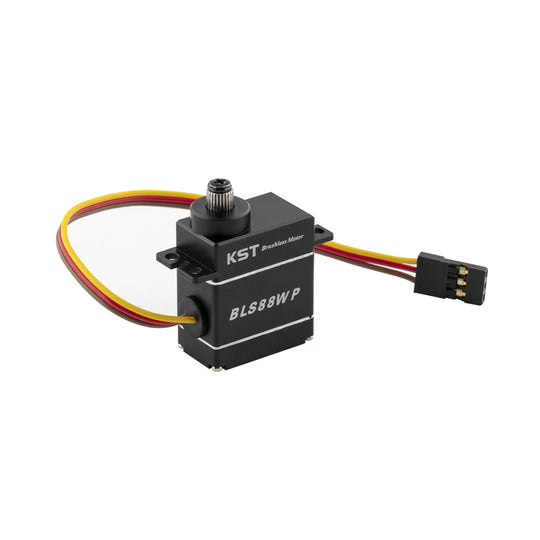

BLS88WP Waterproof Brushless Micro Servo 8.5kg.cm 0.07sec 8.4V for RC Car, RC Boat, RC Seaplane
BLS88WP brushless micro servo - A high-performance servo perfect for 1/12 pan car, 1/16 & 1/18 crawler, RC boat, and RC seaplane. Featuring ultra-high torque 8.5Kgfcm, excellent speed 0.07sec/60° and IP67 waterproof, BLS88WP is one of the best servos on the market right now for its applications.
Features
- Brushless Micro Servo, with fast response and high efficiency
- Ultra-high torque & Excellent speed

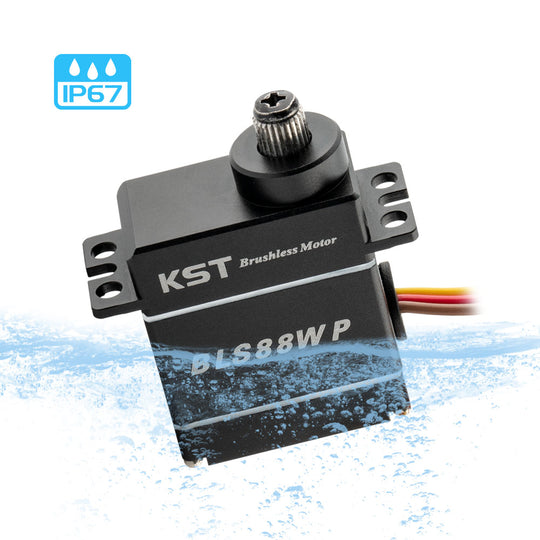

- IP67 waterproof
- Double ball bearings
- Hardened steel gear
- CNC aluminum case
- Soft start
- Ideal for 1/12 pan car, 1/16 & 1/18 crawler, RC boat and RC seaplane
Specification
- Item: BLS88WP Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 7.5Kgf.cm@6.0V , 8.0Kgf.cm@7.4V , 8.5Kgfcm@8.4V
- Speed: 0.09sec/60°@6.0V , 0.08sec/60°@7.4V , 0.07sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±50°= 100°Total
- Temperature Range: -20°C.....+65C
- Soft Start: Programable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Waterproof: IP67
- Case Dimensions: 24mm*13mm*30mm±0.2mm
-
Weight: 21g±10%
Package Including
- 1 * BLS88WP Micro Servo
- 1 pack of accessories
