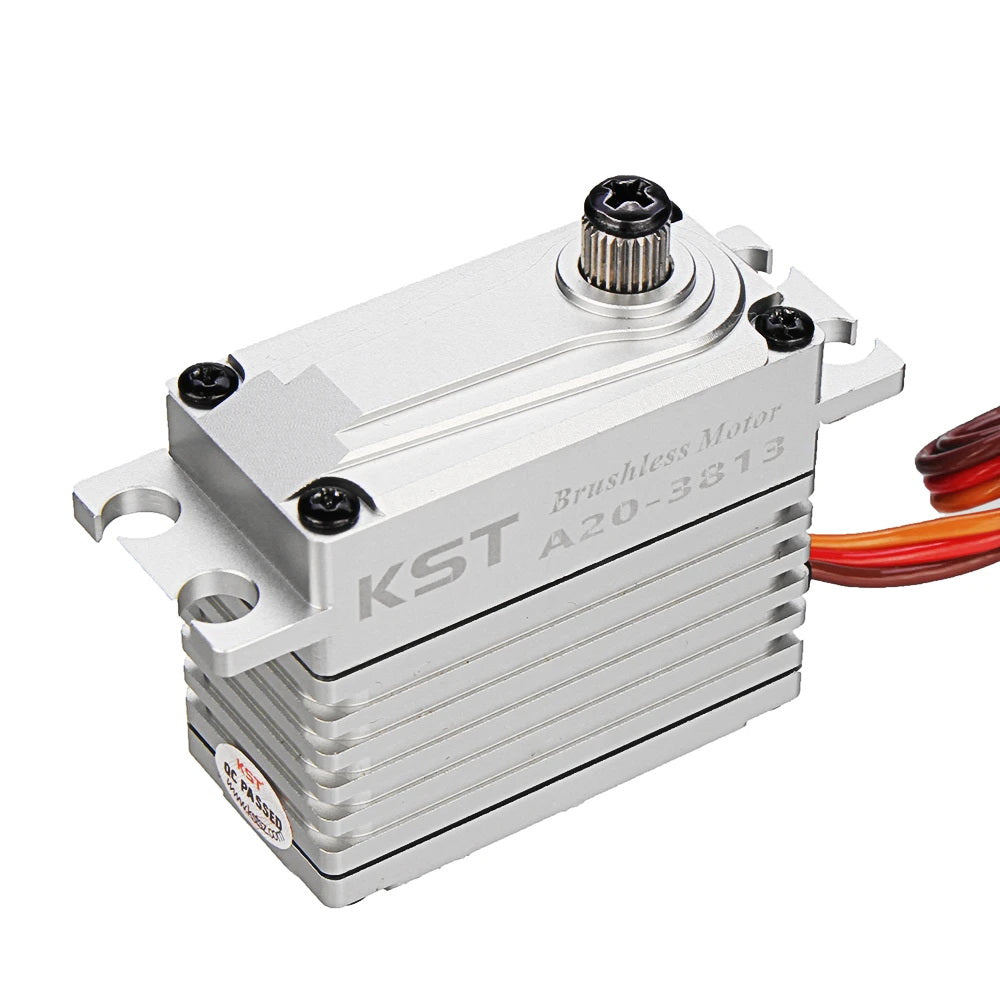

KST A20-3813 V8 Digital Servo 8.4V 0.12s 43kg.cm 597oz.in

KSTSKU: KST-A20-3813 V8

Price:
Sale price$90.00

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jonathan M.
awesome service fast shipping

Everything Amazing, super fast shipping and service, glad to do bussines

Download Manual

Description

KST Servos have built a stellar reputation for delivering quality at practical prices. Whether you're in the realm of hobby helicopters and gliders or engaged in industrial and UAV applications, KST servos have consistently proven their mettle, even in the most challenging scenarios. Whether your goal is to secure victory in your next competition, power a mission-critical UAV, or manage industrial-grade machinery and robotics, KST offers tailored solutions to meet your needs. Don't hesitate to reach out to our sales team today, as we also provide OEM and ODM services for custom installations.

Product Specifications:

  • Rated Operating Voltage: DC 7.4V
  • Operating Voltage Range: DC 6.0V - 8.4V
  • Torque: 30 Kg.cm @ 6.0V, 38 Kg.cm @ 7.4V, 43 Kg.cm @ 8.4V
  • Speed: 0.15 sec/60° @ 6.0V, 0.13 sec/60° @ 7.4V, 0.12 sec/60° @ 8.4V
  • Travel Angle: ±50° when 1000-2000us
  • Operating Temperature Range: -10°C to +55°C
  • Case Material: Aluminum Alloy
  • Motor Type: Brushless
  • Gear Set Material: Phosphor Bronze + Hardened Steel
  • Shielded Connecting Cable: 22AWG
  • Case Dimensions: 40.52038mm
  • Weight: 72g

Our servo offerings extend beyond these specifications:

  • Torque options ranging from 2kgcm to 700kgcm
  • Travel speeds from 0.03s to 0.5s
  • Variable travel angles from 40° to 360°
  • Support for various communication protocols like TTL, RS232, i2C, RS485, or PWM
  • Servo positioning and current feedback capabilities
  • Versatile gear materials, from plastics to titanium
  • Customizable voltage ranges, from 4.8V to 28V
  • Tailored size, shape, and design to meet your specific requirements
  • A wide range of motor choices, including brushed, coreless, and brushless
  • Optional Potentiometer or magnetic induction control

Potential Applications:

  1. Electric lock (anti-theft door lock servo)
  2. Luggage case lock servo
  3. Washing machine safety mechanism servo
  4. Water/gas valve control servo
  5. Smart lamp switch servo
  6. Camera gimbal control servo
  7. UAV heavy-duty servo
  8. Servo release for dropping payloads
  9. Curtain servo
  10. Automatic perfume and liquid sprayer servo
  11. Smart bike gear change servo
  12. Electric car mirror adjustment servo
  13. Car seat adjustment servo
  14. Car window winding servo
  15. Medical equipment servo
  16. Safety lock servo
  17. Robot servo
  18. Wheel servo
  19. Robot arm servo

Please feel free to contact us to explore how KST Servos can cater to your specific needs across various applications.
