Description
Description:
Item Brand:ISDT
Model:ESC90
Cont./Peak Current:90/180A
Motor Type:540/550/775 Brushed Motor

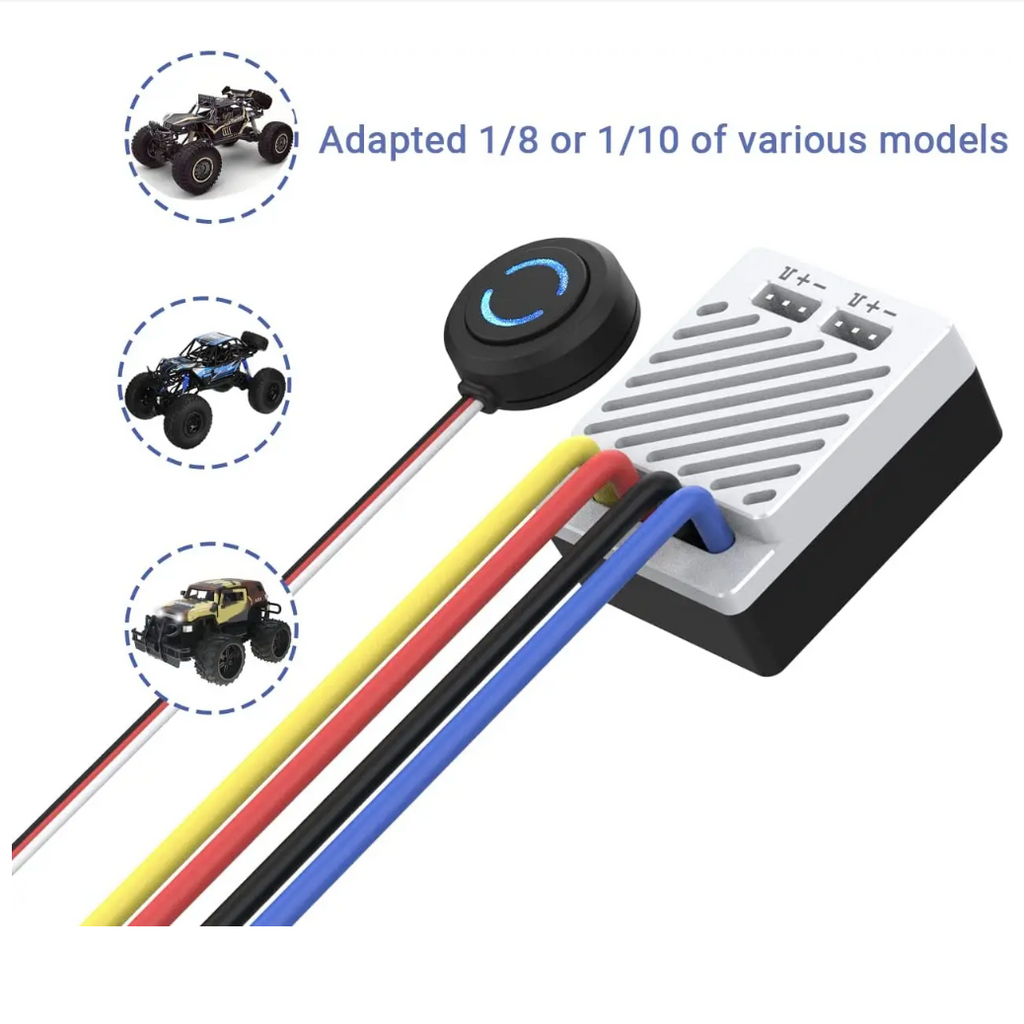

Application:1/8 1/10
Support batteries:Lipo(2-3S)/NiMH(6-8S)
BEC Output:3A amp rating,5V-7.5V Switch (Stepping 0.1V)
Wire/Connectors:16AWG 200mm / No
Explanation for LED Status
Power On:Short press once-white LED flashes
Standby:Green LED on
Error:Red LED flashes
Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes
Bluetooth Connected: Blue LED ON
Power Off: Long press once

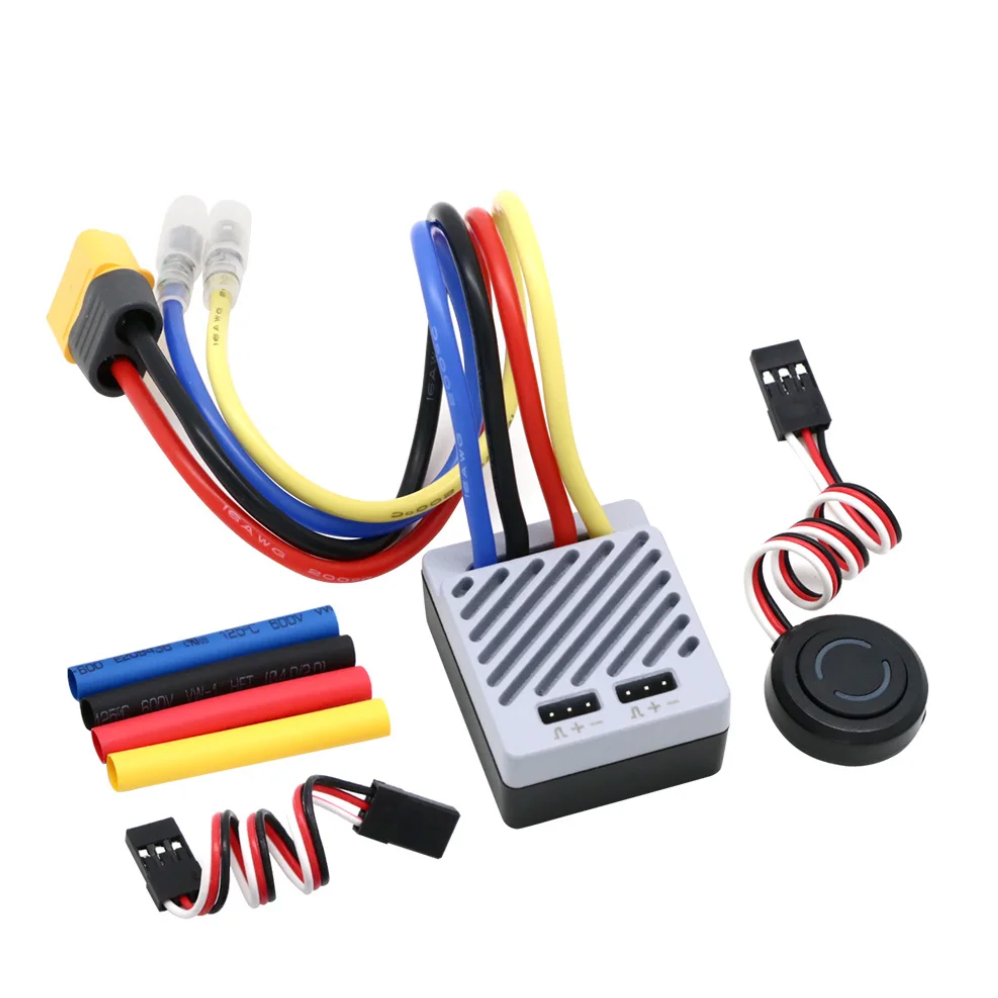

Package included:
1X 90A ESC
