HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing
HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing
HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing
HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing
HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing
Roll over image to zoom in Click on image to zoom
HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed WingHEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed WingHEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed WingHEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed WingHEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing

HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing

HeeWingSKU: HEE-T1-PRO-G
Price:
$189.99

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
L
Leland C.
Hee Wing ranger t1

flies great, built very good and has a great price. putting a vtol kit in now for more fun .

C
Chris
HEE WING T-1 Ranger

Fun little model. I can see why people are using a flight controller, it is very "squirrely". One of the ESC's fried 8 minutes into my first flight, ordered a replacement and hope it doesn't happen again....as with all of this stuff, only time will tell.

Download Manual

Description

The HEE WING T-1 Ranger Pro Version is an upgraded version of the T-1 Ranger with improved features. It has a dual-motor power system with 1406 3150kv motors that provide 45% more power, a high-temperature washer behind the motor mount, and an RGB driver included. The airplane also features additional carbon rod reinforcement, a carbon fiber tail boom, and metal-geared digital servos.

Specifications:

  • Brand Name: HEE WING
  • Item Name: T-1 Ranger Pro
  • Color: Grey
  • Version: PRO
  • Material: EPP/ABS+PC/Carbon fiber/Aluminum

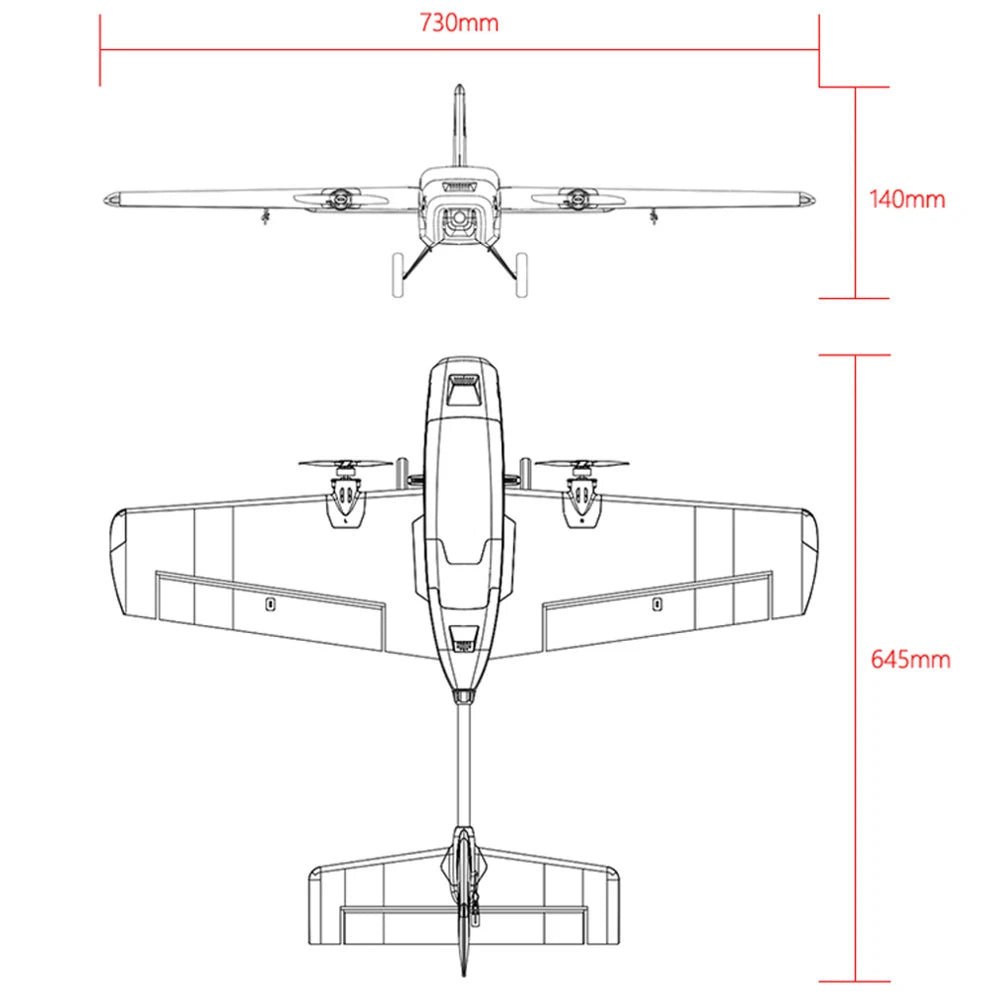

  • Wingspan: 730mm
  • Length: 645mm
  • Height: 140mm
  • Empty weight: 205g (grey)
  • Takeoff weight: 350g ~ 500g
  • Cabin space: Length 245mm x Width 51mm x Height 48mm
  • Minimum flight speed: <20km/h
  • Maximum flight speed: >120km/h
  • Maximum cruising range: >25km
  • Pulling force: >600g (statically measured with brushless version of 3S)
  • Packing size: 400mm230mm155mm
  • Package Weight: 880g

Power system:

  • Motor: FX-1406-3150KV brushless
  • ESC: FX-20A brushless
  • Propeller: FX-3830
  • Servo: FX-5g Metal Geared

Recommended parts (Not included in any version):

  • Battery: 2S3S 1300mAh5000mAh LiPo
  • Radio System: 2.4G 6CH

Features:

  • Lightweight and portable with quick disassembly design that takes only a minute to assemble or disassemble.
  • Dual motors with high thrust-to-weight ratio of 1.71.
  • Excellent aerodynamic design for stable slower flight.
  • Small wingspan with large cabin space for easy distribution of electronic equipment.
  • Doubling the adjustable range of the center of gravity to accommodate light-load and heavy-load dual flight.
  • Bayonet design for the hatch cover for more reliable structure.
  • New flight control system for easy control of the vast sky.
  • Supports external cameras for multiple camera setup.

Note:

  • KIT version does not include motor, ESC, servo, propeller, battery, charger, transmitter, or receiver.
  • PNP version does not include battery, charger, transmitter, or receiver.
  • Glue is not included.

Package includes:

1x HEE WING T-1 Ranger Pro Version 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing
