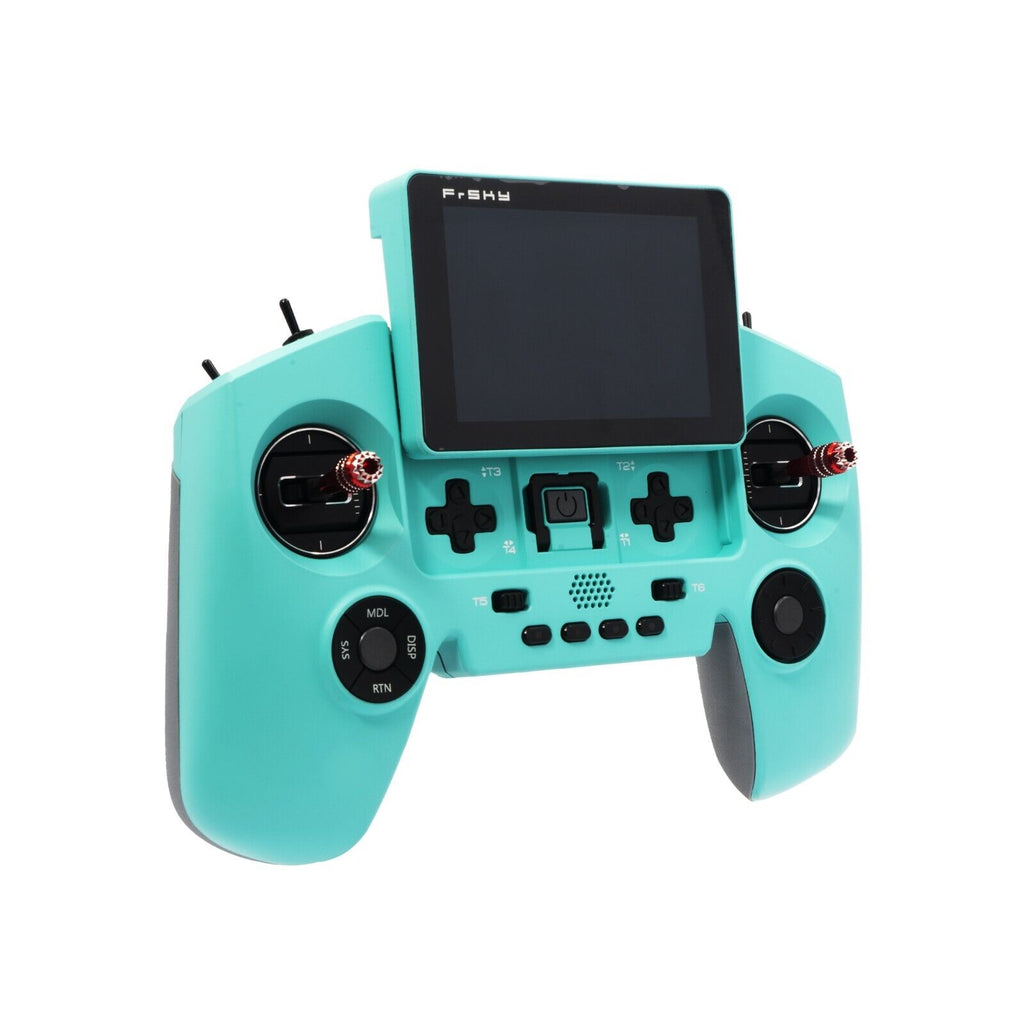

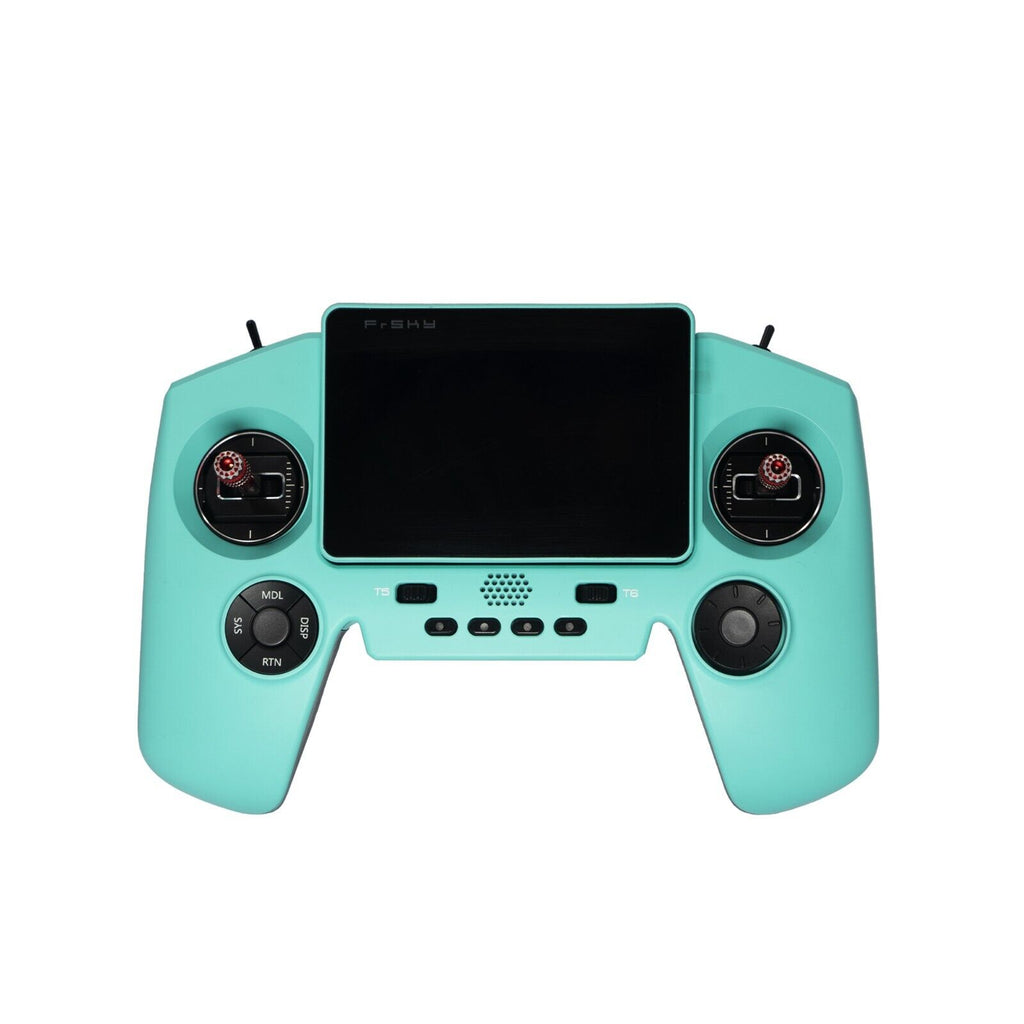

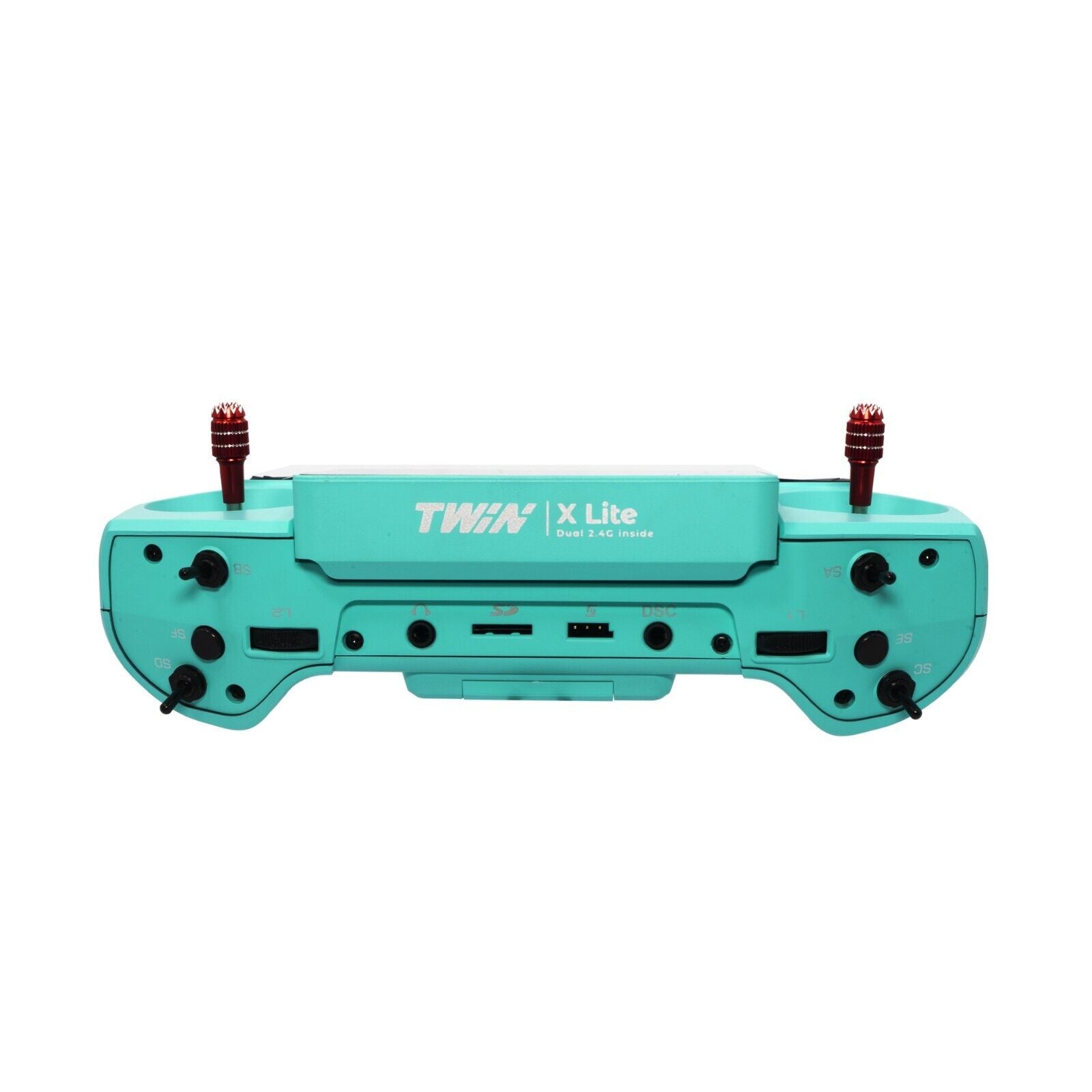

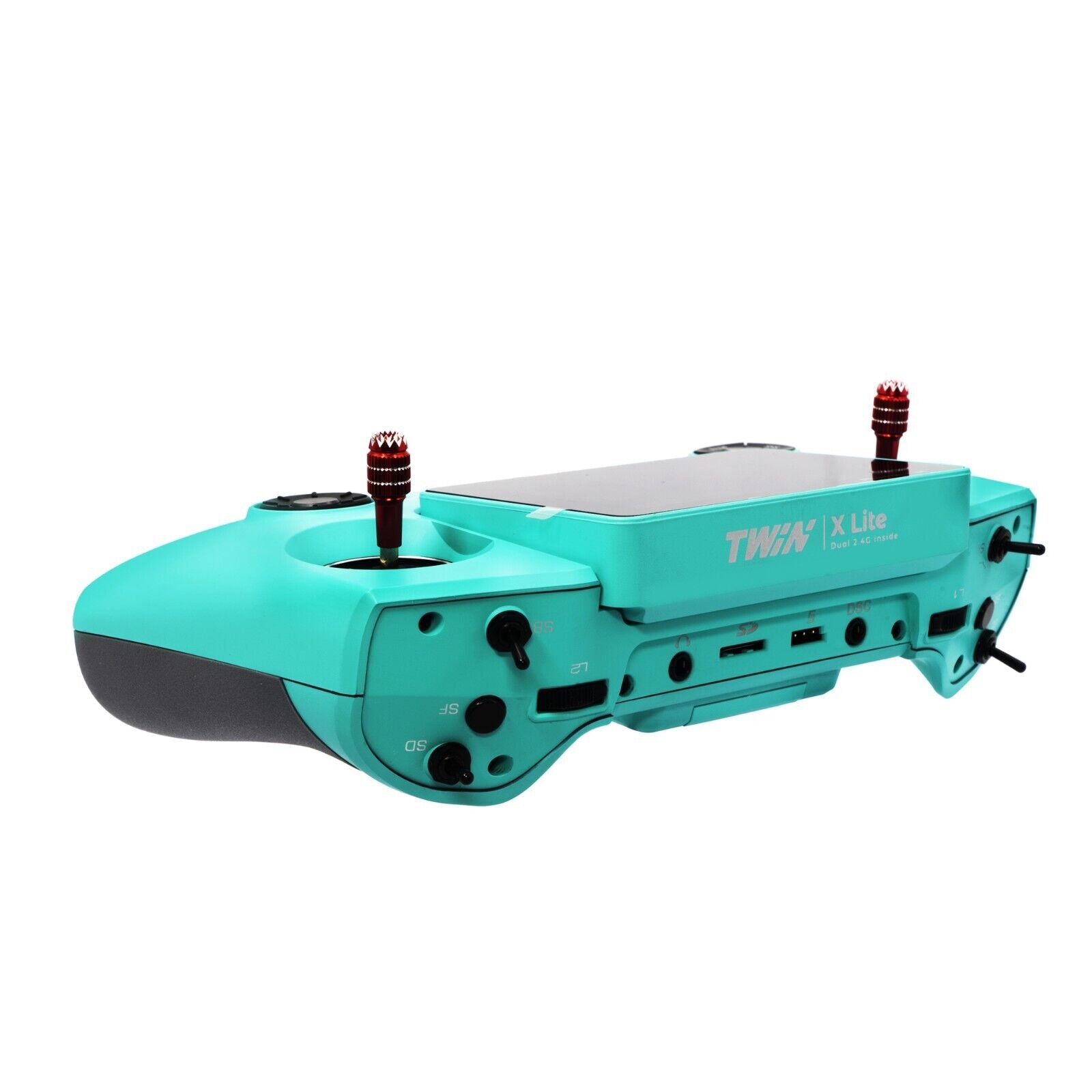

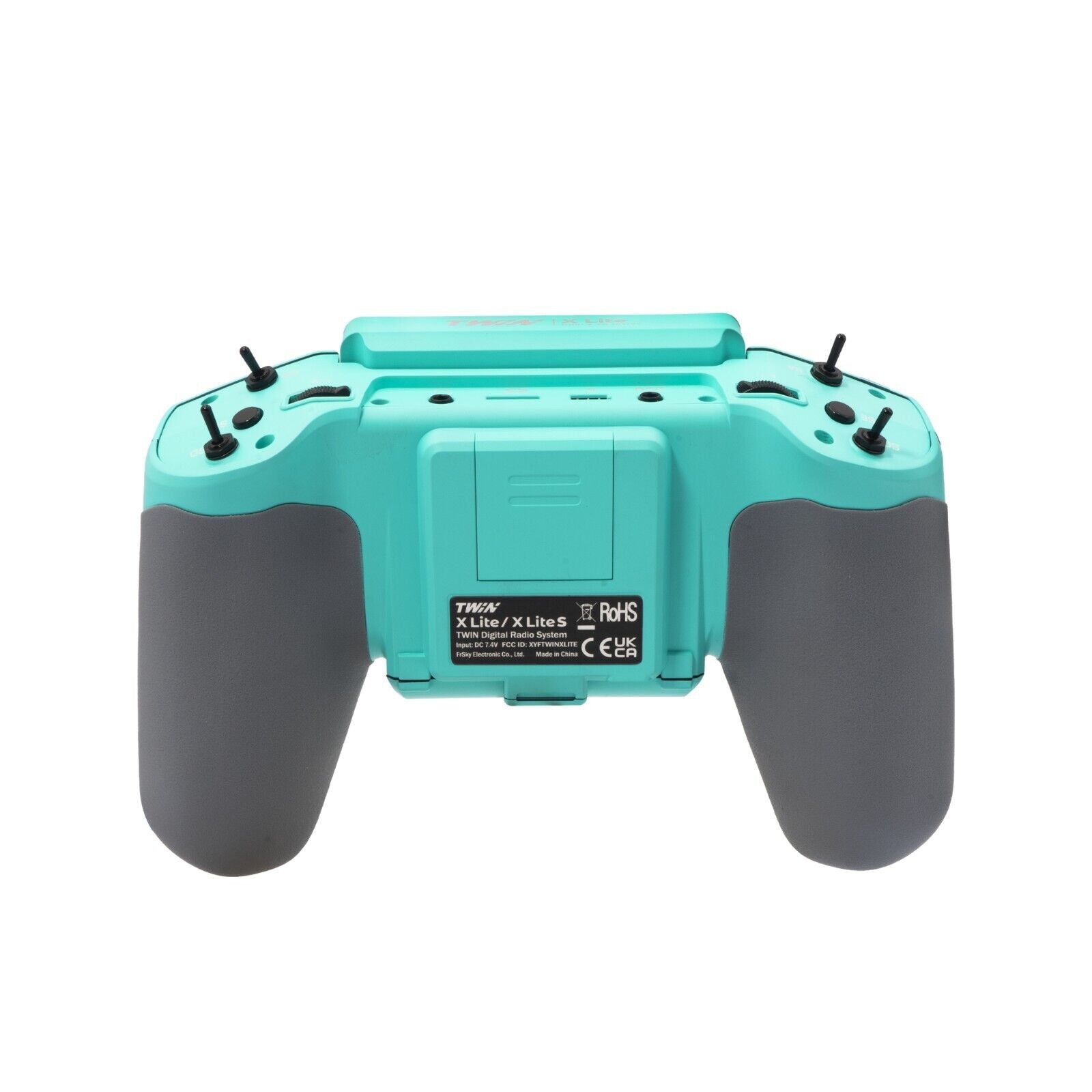

FrSky TWIN X Lite Radio Transmitter Verdigris Green

DUAL 2.4G RADIO SYSTEM
The TWIN X Lite is a powerful radio system that features dual 2.4G frequencies simultaneously on the same receiver in TW mode. The TW active-active protocol is different from the general active-standby redundancy solutions, with this protocol, dual 2.4G frequency bands are active on the TWIN series RF module and receiver at the same time. It has two 2.4G internal RF antennas mounted to provide multi-directional and wider coverage for transmitting signals compared to a single antenna design. Taking advantage of these features, the Twin system can provide less latency and higher reliability at a faster data rate with confidence.

In addition to the TW mode, TWIN X Lite also supports ACCST D16 and ACCESS modes, this means users can benefit from a wide range of compatible receiver options to choose from and bind to when building the RC model.

BUILT-IN MASS STORAGE & BATTERY CAPACITY
In order to save the user the trouble of deciding the storage capacity, TWIN X Lite comes with a built-in 128MB flash storage that offers plenty of file storage to meet all of your radio’s storage needs. And TWIN X Lite included a 2100mAh Li-Po battery, its battery bay is easy to access for replacing the battery and also offers a Type-C port for recharging the battery.

Features:

• Ergonomic and Compact Lightweight design
• Slide Screen Design
• 3.5” Color Touch-Screen Displays
• 6 Trims & 4 Quick-Mode Custom Buttons
• 2 Momentary Buttons & 2 Sliders & 4 Switches on the Top
• Lite Type External Module Bay
• Fordable Tab for Attaching Radio Strap
• CNC Metal Gimbals with Integrated High-Precision Hall Sensor
• Less Latency with More Range and Higher Reliability at a Faster Data Rate
• Built-in Dual 2.4G Band Internal RF Module
  • Supports multiple RF protocols: ACCST D16 / ACCESS / TW modes
    • TW Mode
      • Highly resilient RF module providing dual 2.4G signals working simultaneously
      • Long-range control (Tens of kilometers, range varies based on the RF Power settings.)
      • Low-latency (＜4ms) supporting full telemetry
• Built-in 128MB Flash Storage
• External TF card slot for storage extension
• Haptic Vibration Alerts and Voice Speech Outputs
• Supports Recharge System for 2S Li Battery
• High-Speed PARA Wireless Training System
• ETHOS Operating System

Specifications:

• Dimension: 197*131*68mm（L*W*H）
• Weight: 392g（Battery Excl.）/ 459g（Battery Incl.）
• Operating System: ETHOS
• Internal RF Module: TW-ISRM
• Number of Channels: 24 channels
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
• Operating Current: 330mA@7.4V（typ.）
• Operating Temperature: -10°C~60°C (14°F~140°F)
• Battery Bay Size: 68*44.5*13mm（L*W*H）
• Data Transmission & Charging Interface: USB Type-C
• USB Adaptor Voltage and Current: 5V+0.2V, >2.0A
• Built-in Flash Storage: 128MB (1Gbit)
• LCD Touch-Screen Display Resolution: 480×320
• Compatibility: ACCST D16 / ACCESS / TW modes
