Description
Product Description:

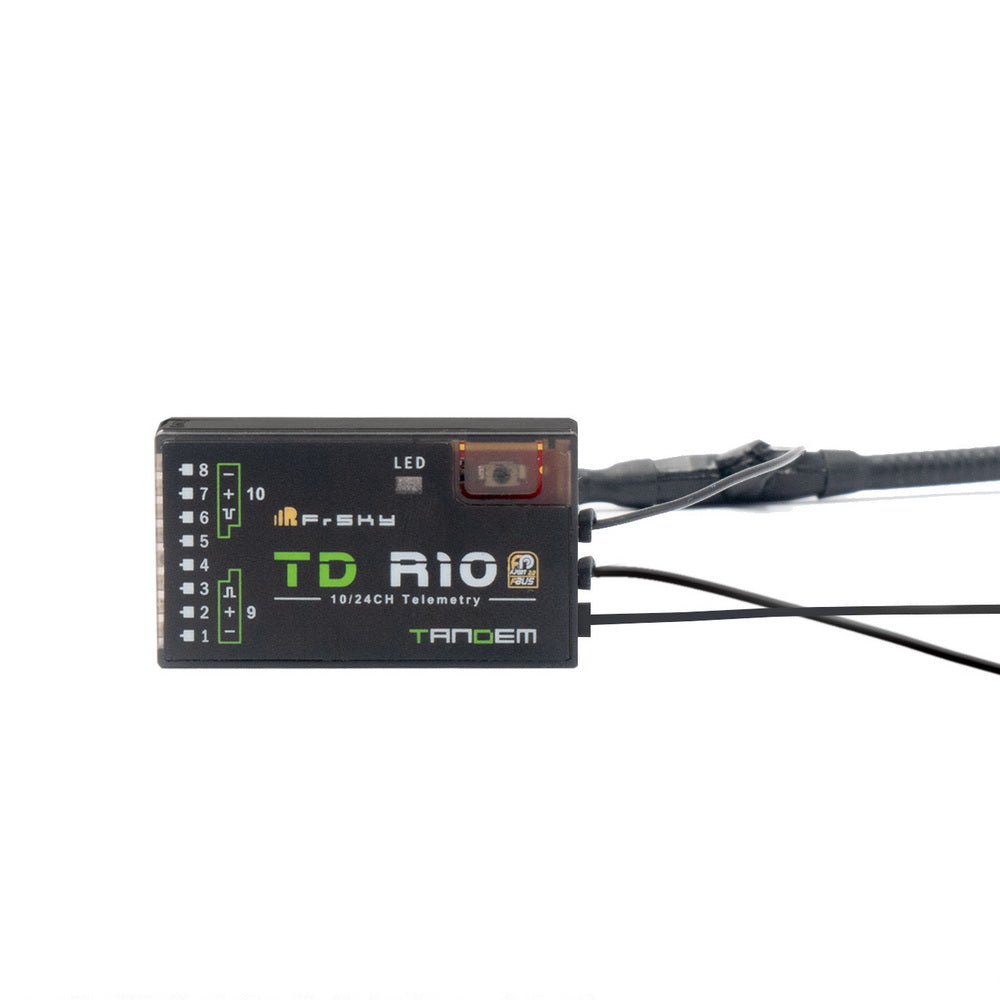

Introducing the FrSky TD R10 2.4GHz 900M Dual Band Tandem Receiver with Antennas - a receiver unlike any other in the FrSky 2.4GHz or 900MHz range. The TD R10 receiver operates simultaneously at both 900MHz and 2.4GHz frequencies, offering low latency signal and long-range control with an added level of high reliability and anti-interference performance. The Tandem series receivers feature a triple antenna design for multi-directional wide coverage of the remote signal. Additionally, these receivers come equipped with a built-in black box module that records data related to power and signal during flight under unusual circumstances. The TD R10 boasts configurable 10-channel ports, allowing for each channel port to be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can seamlessly pair with multiple telemetry devices (such as Neuron ESC, Advance Sensors, etc.), simplifying the build setup process.
Features
- 10 Configurable Channel Ports: CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In and CP2-10: PWM / SBUS Out / FBUS / S.Port
- Supply current range(every single port:)Instantaneous current:5A/ Continuous current:3A
- Triple antenna design for multi-directional coverage
- Simultaneous working dual-band TD mode
- Long control range (up to 50KM – 100KM)
- 4ms Race Mode with Telemetry
- Over-The-Air (OTA) FW update
- Built-in voltage sensor
- Black Box function
Specifications
- Antenna: Triple 2.4G/900M Antenna (External 2.4G antenna (IPEX1) and External 900M antenna (IPEX1)
- Compatibility: Tandem series transmitter & TD protocol capable RF module
- Dimension: 46.5*26.3*14.7mm (L*W*H)
- Operating Current: ≤180mA@5V
- Operating Voltage: 3.5-10v DC
- Frequency: 2.4GHz & 900MHz
- Weight: 16.6g
