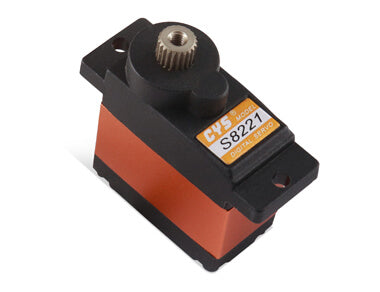

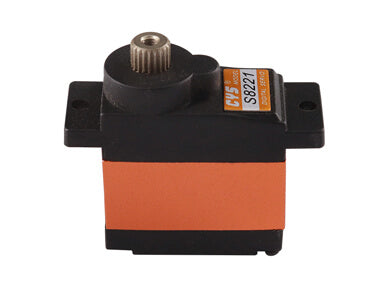

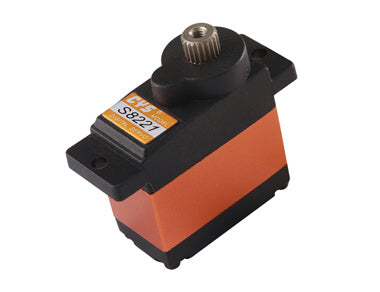

CYS-S8221 9g Digital tail servo for 450 helicopter
CYS-S8221 9g Digital tail servo for 450 helicopter
CYS-S8221 9g Digital tail servo for 450 helicopter
Roll over image to zoom in Click on image to zoom
CYS-S8221 9g Digital tail servo for 450 helicopterCYS-S8221 9g Digital tail servo for 450 helicopterCYS-S8221 9g Digital tail servo for 450 helicopter

CYS-S8221 9g Digital tail servo for 450 helicopter

CYSSKU: CYS-S8221
Price:
$11.95

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mario A.

CYS-S8221 9g Digital tail servo for 450 helicopter

Download Manual

Description

Item NO.: CYS-S8221

Description : 9g digital servo for 450 classes helicopter

Size : 23*12*25.4MM

Torque : 1.2Kg.cm ~ 1.5Kg.cm

Speed : 0.09sec ~ 0.07sec/60 degree

Voltage : 4.8Volts ~6.0Volts

Weight : 14± 1 g

Application&Features


Type Digital
Weight 13g
Size 22.9*12*25.4mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 4.8~6.0Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.10sec/60° at no load
Operating Speed (7.4V) 0.08sec/60° at no load
Stall Torque (6.0V) 1.0kg.cm
Stall Torque (7.4V) 1.2kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 10mA/idle and 120mA no load operating
Current Drain (7.4V) 10mA/idle and 140mA no load operating
Stall Current 0.9A/1A
Dead Band Width 2usec
Motor Type Iron core
Bearing Type single bearing
Horn gear spline 21T
Gear Type Metal
Connector Wire Length 180mm
Wire info Brown/Black = Negative
Red = Positive
Orange/White = Signal
