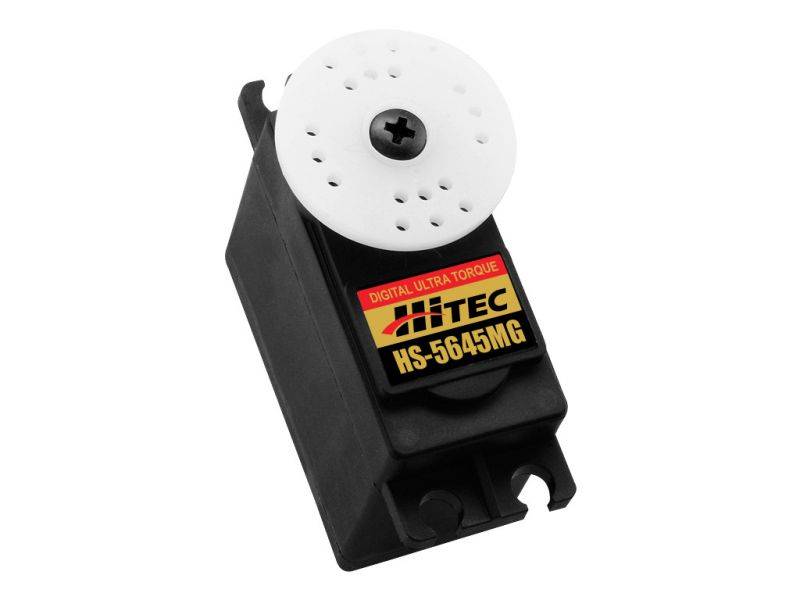

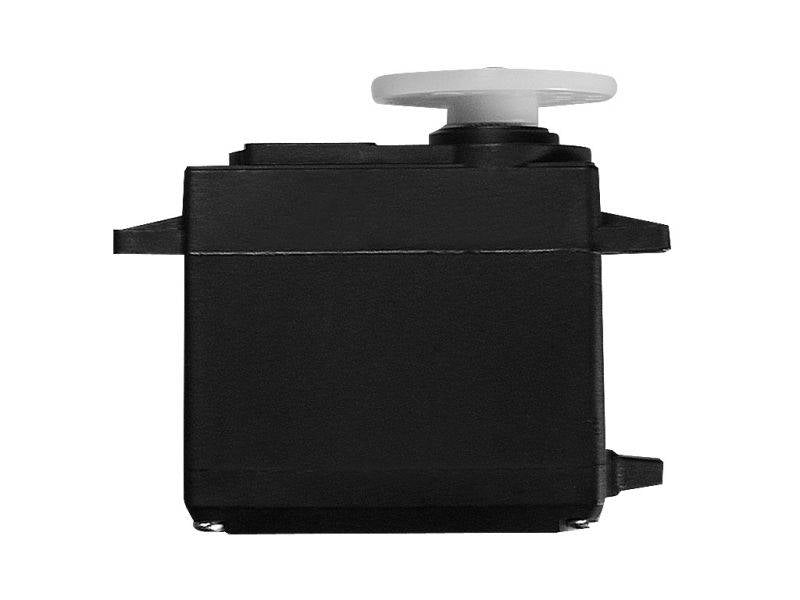

Hitec HS-5645MG High Torque, Metal Gear Digital Sport Servo

HitecSKU: HS-5645MG

Price:
Sale price$45.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The digital version of our popular HS-645 is the HS-5645MG, featuring a programmable digital circuit and our custom MP/metal gear train technology. Perfect for larger airplanes and heli’s, the HS-5645MG will deliver higher resolution and torque than its analog brother.

Note: Metal Horn (R-ML) Included

Features

  • Top Selling High Torque Standard Digital Servo
  • Strong Three-Pole Ferrite Motor
  • Metal Gear Train with MP Gear Technology
  • Dual Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit Provides Fine Resolution and Centering

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Accessories

  • Metal Gear Set | Link |
  • Metal / Karbonite 1st Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-5645MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.23 ~ 0.18
Maximum Torque Range oz. / in. 143 ~ 168
Maximum Torque Range kg. / cm. 10.3 ~ 12.1
Current Draw at Idle 3 mA
No Load Operating Current Draw 450 mA
Stall Current Draw 2,400 mA
Dead Band Width 4 µs

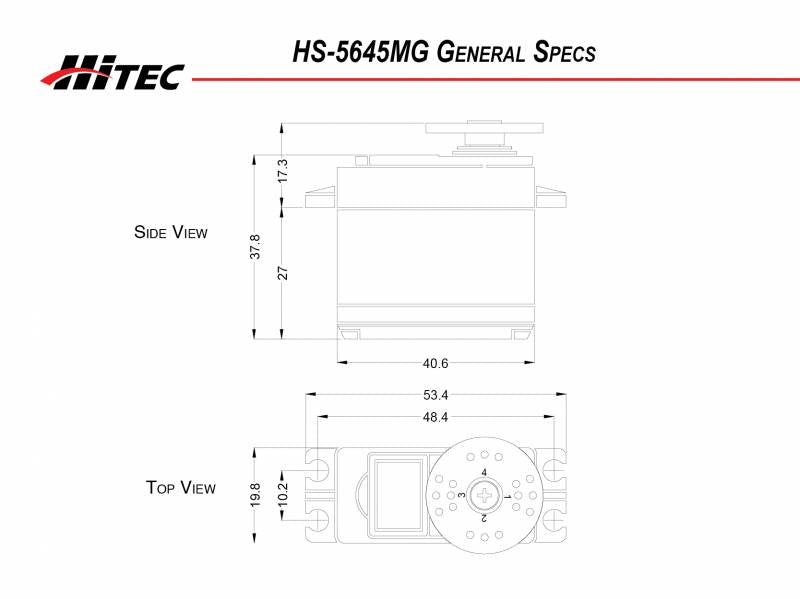

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 2.11
Weight (Gram) 60.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane 12 - 15 lbs.
Sailplane 2 meter and up
3D Performance 12 - 15 lbs.
Scale 12 - 15 lbs.
Electric Helicopter 600mm
Gas Helicopter 50-59 Class
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 1/10th
Crawlers N / A
Sail Boat = >1 meter & Scale
Power Boat 1/10th
