Himax Contra-Rotating Motors ONLY - NOT Sold Separately without Purchase of Designated Props
Himax Contra-Rotating Motors ONLY - NOT Sold Separately without Purchase of Designated Props
Roll over image to zoom in Click on image to zoom
Himax Contra-Rotating Motors ONLY - NOT Sold Separately without Purchase of Designated PropsHimax Contra-Rotating Motors ONLY - NOT Sold Separately without Purchase of Designated Props

Himax Contra-Rotating Motors ONLY - NOT Sold Separately without Purchase of Designated Props

MPISKU: CR28051430-M
Size: CR2805 Motor Only
Price:
$93.89

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Wide selections - 5 motors for all your needs,
• No more propeller torque or gyroscopic effect from the rotor
• Includes prop adapters, mounting hardware, & connectors,
• Prop drilling jig provided if necessary.

Click to download the Fly RC Magazine review!

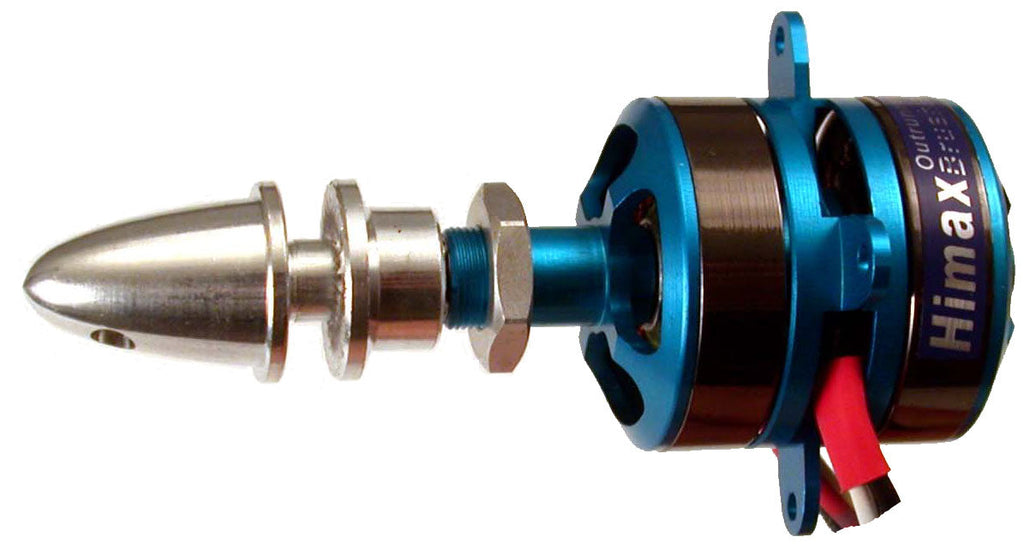

Above: The CR2805, small yet equivalent to a .10 glow engine.

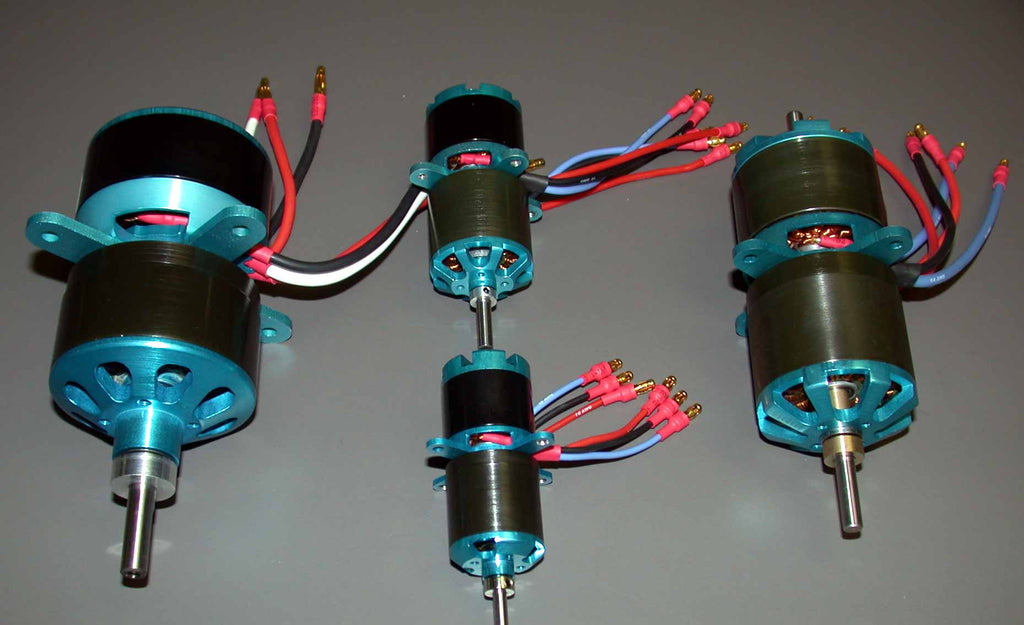

Left: Himax Contra-Rotating Motors.  Clockwise from left: CR6320A, CR3516, CR5025, CR2816
Part No. Motor Dia mm Weight oz Shaft dia Prop Size* Battery cells ESC Rating Power watts Static Thrust oz Kv Rm Io
CR2805
Learn more 		CR2805-1430 28 1.9 1/8" & 5/16" 7x5 & 7x5R (included) 3 15A x 2 120 20 1430 .265 0.5
CR2816
Learn more		 CR2816-1100 28 5.8 5/32" & 3/8" 10x5E & 9x7R (included) 3 25A x 2 440 69 1100 .048 1.8
CR3516
Learn more		 CR3516-1030 35 10 3/16" & 3/8" 12x6R & 11x8
(included)		 3 35A x 2 800 98 1030 .035 2.0
CR5025A
Learn more		 CR5025-380 50 25 6 & 13mm 16x8.4 & 15x10R
(Propellers & special spinner included)		 6 45A x 2 2050 17 lbs 380 .041 1.5
CR6320A
Learn more		 CR6320-240 63 37 8 & 20mm 21x11.5 & 20x 12.7R
(Propellers & special spinner included)		 8 85A x 2 3600 30 lbs 240 .035 1.5
*Caution - Prop size is highly dependent on battery choice. Check the manual for full information. Always monitor current when choosing prop.


Replacement Propellers for Himax Contra-Rotating Motors

Item No.

 Diameter x Pitch Shaft Bore mm ø
A0705E (CR2805) 7 x 5 Up to 0.312"
AP07050EP (CR2805) 7 x 5 Pusher Up to 0.312"
EPP0970R (CR2816) 9 x 7 Reverse 3/8", pre-drilled for CR2816
A10050E (CR2816) 10 x 5 Up to 0.312"
AP12060EP (CR3516) 12 x 6 Pusher Up to .312"
A11080E (CR3516) 11 x 8 Up to 0.312"
WPE1510R-CR (CR5025) 15 x 10 Reverse 12.7mm w/4 holes
WPE16084-CR (CR5025) 16 x 8.4 8mm
WPE20127F-CR (CR6320) 20 x 12.7 Reverse 20mm w/4 holes
WPE21115R-CR (CR6320) 21 x 11.5 20mm w/4 holes

Please note: These propellers are designed and chosen for each motor. If you decide to experiment, please take care to monitor heat and current. MPI does not warranty motors using non-standard propellers.
