Description
CM653 Low Profile Coreless DC Motor Metal Gear Servos IP65 Waterproof 18Kgf.cm 0.08sec for 1/10th Scale Trucks, Rock Crawlers, Drift & Touring Cars
CM653 low profile servo offers 0.08sec fast speed, high efficiency, ultra-high 18Kgf.cm torque, excellent speed and IP65 splash-proof. Perfect for 1/10th scale trucks, rock crawlers, drift & touring cars.
Features
- Low profile servo with fast response and high efficiency
- Ultra-high torque & Excellent speed
- IP65 splash-proof
- Double ball bearings
- Coreless DC motor
- Metal gear
- Programing box/USB link compatible
- Ideal for 1/10 RC drifting car & RC touring car
Specification
- Item: CM653 Low Profile Servos
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Torque:
10Kgf.cm@4.8V
12Kgf.cm@6.0V
15Kgf.cm@7.4V
18Kgf.cm@8.4V
- Speed:
0.12sec/60°@4.8V
0.10sec/60°@6.0V
0.09sec/60°@7.4V
0.08sec/60°@8.4V
- Stall Current:
2.60A@4.8V
3.20A@6.0V
3.60A@7.4V
4.05A@8.4V
- Working Frequency: 1520μs/333Hz

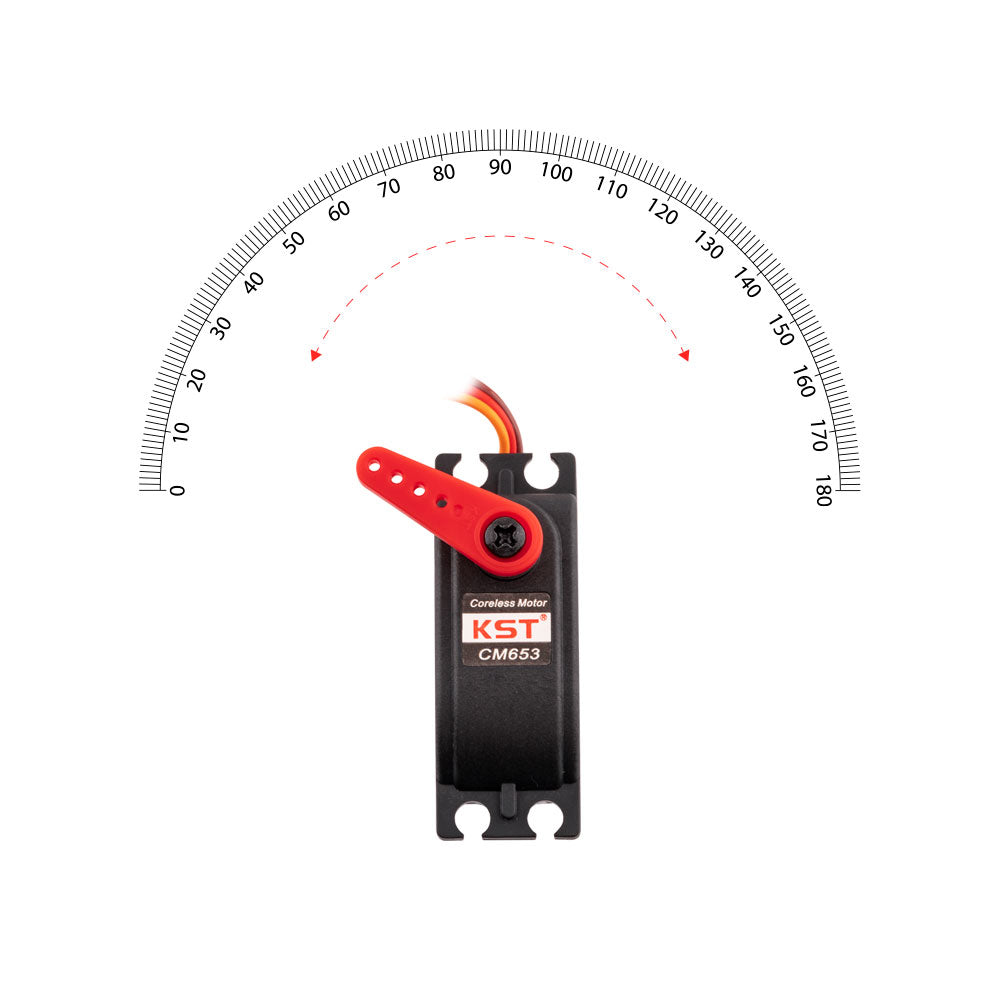

- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Motor Type: Coreless DC Motor
- Gear Set Material: Metal Gear
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Waterproof: IP65
- Case Dimensions: 40.5*20*27.5±0.2mm
- Weight: 43g±10%

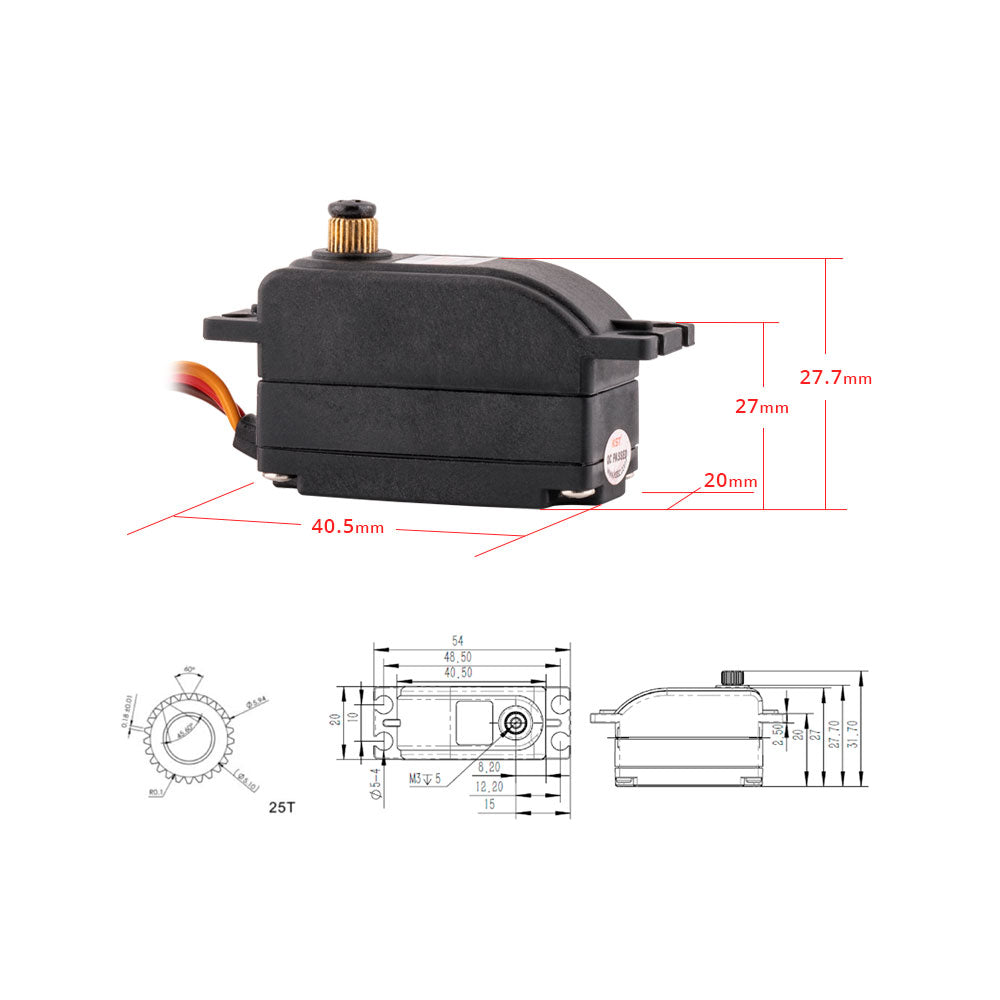

Size

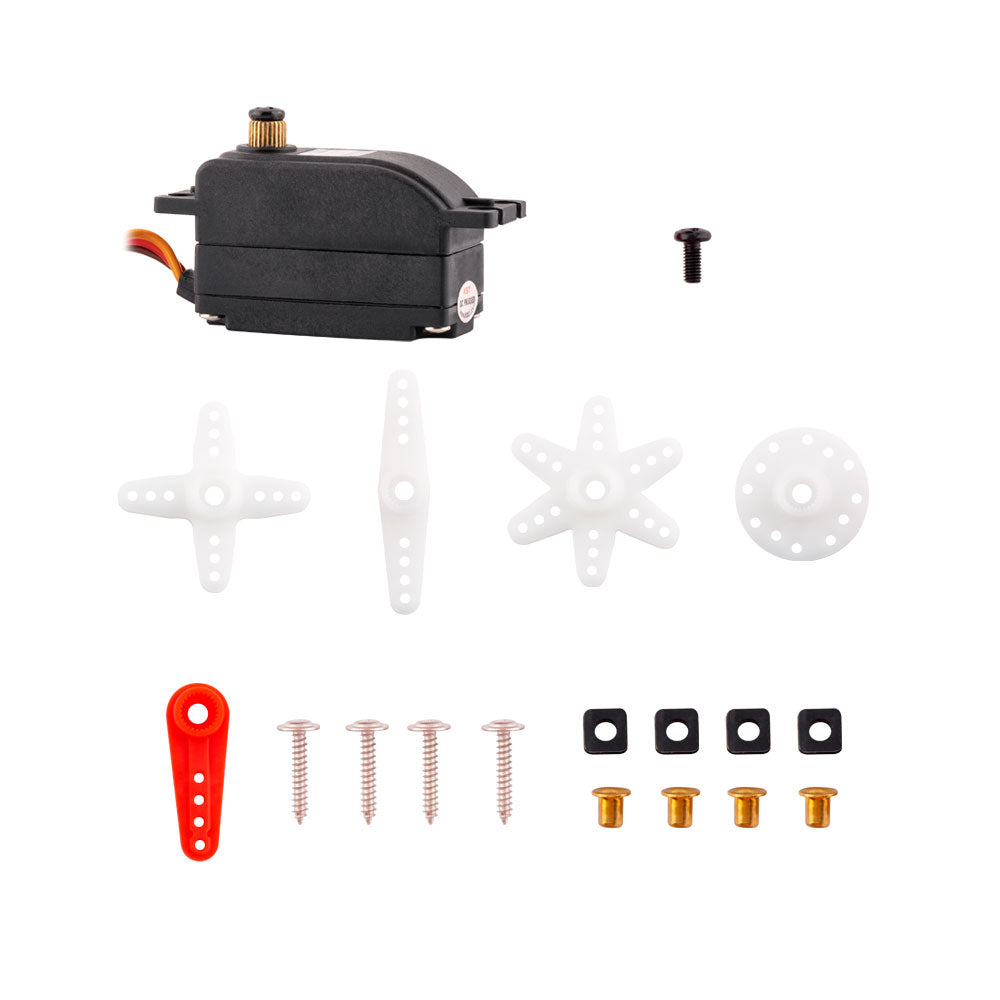

Package Including
- 1 * CM653 Low Profile Servo
- 5 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 4 * Grommet
- 4 * Eyelet
- 4 * Mounting Screw
